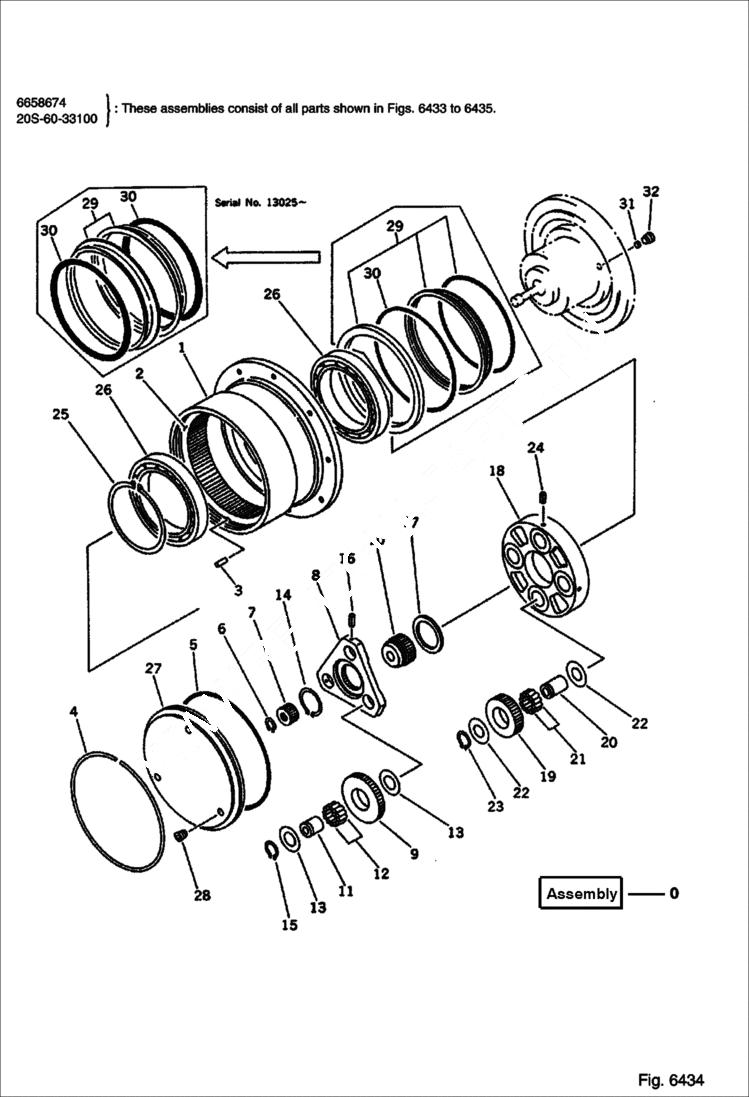

Запчасти Bobcat 100 TRAVEL MOTOR (2/3) Komatsu S/N 11501 & Abv. WORK EQUIPMENT CONTROL SYSTEM

0

6658674

TRAVELMTR Komatsu S/N 13025 & Abv.

0

TRAVEL MOTOR ASS'Y Komatsu S/N 11501-13024 - Was 20S-60-33100

1

BODY SUB ASS'Y Komatsu S/N 13025 & Abv. - Was FUGHB-3-1191

1

6665503

BODY ASSY Komatsu S/N 11501-13024

2

GEAR Komatsu S/N 11501 & Abv.

3

PIN Komatsu S/N 11501 & Abv.

4

6669482

SNAP RING Komatsu S/N 11501 & Abv.

5

6669491

O'RING Komatsu S/N 13025 & Abv.

5

O-RING Komatsu S/N 11501-13024 - Was FUROA-169

6

RING, SNAP Komatsu S/N 11501 & Abv. - Was FURA-17

7

6665504

GEAR Komatsu S/N 11501 & Abv.

8

6665505

CARIER AY Komatsu S/N 11501 & Abv.

9

GEAR Komatsu S/N 11501 & Abv.

10

GEAR Komatsu S/N 11501 & Abv.

11

PIN Komatsu S/N 11501 & Abv.

12

BEARING, NEEDLE Komatsu S/N 11501 & Abv.

13

WASHER, THRUST Komatsu S/N 11501 & Abv. - Was FUAS3047

14

RING, SNAP Komatsu S/N 11501 & Abv. - Was FURA-35

15

RING, SNAP Komatsu S/N 11501 & Abv. - Was FURA-30

16

PIN, SPRING Komatsu S/N 11501 & Abv. - Was FUPPS-W-4-20

17

6665506

COLLAR Komatsu S/N 11501 & Abv.

18

6665507

CARRIER sub ass'y - Komatsu S/N 11501 & Abv.

19

GEAR Komatsu S/N 11501 & Abv.

20

PIN Komatsu S/N 11501 & Abv.

21

BEARING, NEEDLE Komatsu S/N 11501 & Abv.

22

WASHER, THRUST Komatsu S/N 11501 & Abv. - Was FUAS3047

23

RING, SNAP Komatsu S/N 11501 & Abv. - Was FURA-30

24

PIN, SPRING Komatsu S/N 11501 & Abv. - Was FUPPS-W-5-20

25

RING Komatsu S/N 13025 & Abv. - Was FUFRP-840-23

25

RING, SNAP Komatsu S/N 11501-13024 - Was FURA-120

26

6665509

BEARING 46 balls - Komatsu S/N 11501 & Abv.

27

COVER Komatsu S/N 13025 & Abv. - Was FUFRP-1183-02

27

COVER Komatsu S/N 11501-13024 - Was FUFRP-1109-02

28

PLUG Komatsu S/N 11501 & Abv. - Was FUTPHA-3-8

29

SEAL, FLOATING Komatsu S/N 13025 & Abv. - Was FU175-27-32711

29

6665510

RING floating seal assembly - Komatsu S/N 11501-13024

30

O-RING Komatsu S/N 13025 & Abv. - Was FU100-27-11330

30

6665511

O RING Komatsu S/N 11501-13024

31

SCREW Komatsu S/N 11501-13024 - Was FUFRP-336-2-34

32

PLUG Komatsu S/N 11501-13024 - Was FUTPH-1-4
