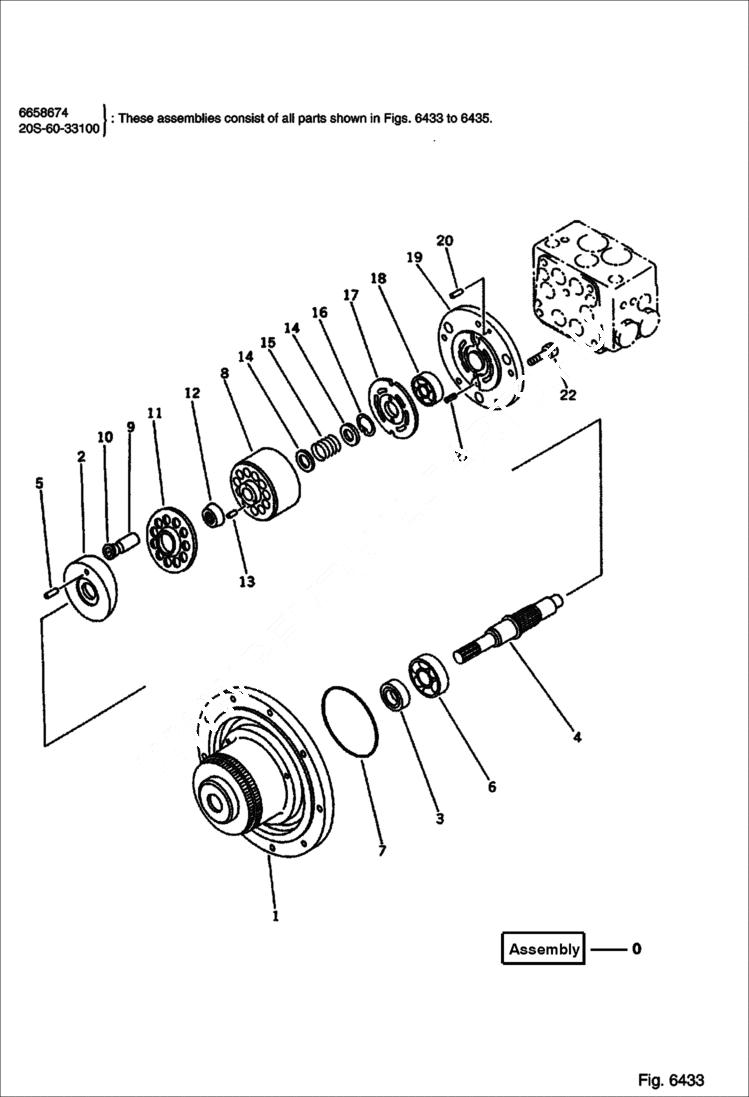

Запчасти Bobcat 100 TRAVEL MOTOR (1/3) Komatsu S/N 11501 & Abv. WORK EQUIPMENT CONTROL SYSTEM

0

6658674

TRAVELMTR Komatsu S/N 13025 & Abv.

0

TRAVEL MOTOR ASS'Y Komatsu S/N 11501-13024 - Was 20S-60-33100

1

BODY SUB ASS'Y Komatsu S/N 13025 & Abv. - Was FUMHB-3-2-2096

1

BODY SUB ASS'Y Komatsu S/N 11501-13024 - Was FUMHB-3-2-2000

2

PLATE, SWASH Komatsu S/N 11501 & Abv.

3

SEAL, OIL Komatsu S/N 11501 & Abv.

4

6669490

PIN Komatsu S/N 11501 & Abv.

5

SHAFT Komatsu S/N 11501 & Abv.

6

BEARING, BALL Komatsu S/N 11501 & Abv.

7

6669483

O-RING Komatsu S/N 13025 & Abv.

7

O-RING Komatsu S/N 11501-13024 - Was FUG105-90

8

CYLINDER SUB ASS'Y Komatsu S/N 13025 & Abv. - Was FUMHCB-3-2096

8

6669486

CYL.SUB.A Komatsu S/N 11501-13024

8

CYLINDER, BARREL Komatsu S/N 11501 & Abv.

9

PISTON Komatsu S/N 11501 & Abv.

10

SHOE Komatsu S/N 11501 & Abv.

11

HOLDER, SHOE Komatsu S/N 11501 & Abv.

12

HOLDER, BARREL Komatsu S/N 11501 & Abv.

13

PIN, NEEDLE Komatsu S/N 11501 & Abv.

14

RETAINER Komatsu S/N 11501 & Abv.

15

SPRING Komatsu S/N 11501 & Abv.

16

6637231

RING, SNAP Komatsu S/N 11501 & Abv.

17

VALVE, PLATE Komatsu S/N 13025 & Abv. - Was FUFZS-2096-05

17

VALVE, PLATE Komatsu S/N 11501-13024 - Was FUFZS-2000-05

18

6669473

BALL BRG Komatsu S/N 11501 & Abv.

19

BODY SUB ASS'Y Komatsu S/N 13025 & Abv. - Was FUMHB-3-1-2096

19

BODY SUB ASS'Y Komatsu S/N 11501-13024 - Was FUMHB-3-1-2000

20

PIN Komatsu S/N 11501 & Abv. - Was FUPP-H7-8-15

21

PIN, SPRING Komatsu S/N 11501 & Abv. - Was FUPPS-W-6-16

22

SCREW Komatsu S/N 13025 & Abv. - Was FUTH12-10-25

22

SCREW Komatsu S/N 11501-13024 - Was FUTH12-10-30
