Bobcat
/
Экскаваторы
/
100
/
504912001 & Above
/
WORK EQUIPMENT CONTROL SYSTEM
/

TRAVEL MOTOR (2/2) Komatsu S/N 10001-11500

Запчасти Bobcat 100 TRAVEL MOTOR (2/2) Komatsu S/N 10001-11500 WORK EQUIPMENT CONTROL SYSTEM

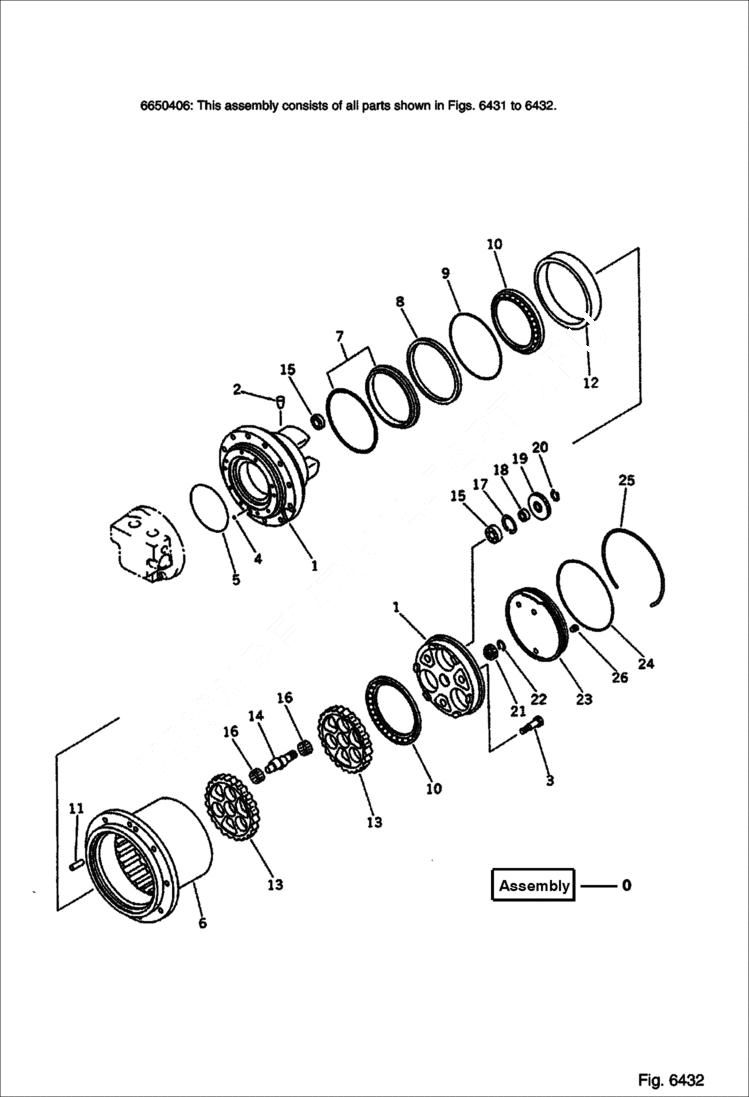

Схема запчастей Bobcat 100 - TRAVEL MOTOR (2/2) Komatsu S/N 10001-11500 WORK EQUIPMENT CONTROL SYSTEM

№

Артикул

Название

Примечание

Количество

0

6650406

TRAVELMTR Komatsu S/N 10001-11500

0

SPINDLE KIT Komatsu S/N 10001-11500 - Was TZ312B1102-00

1

SPINDLE ASS'Y Komatsu S/N 10001-11500 - Was TZ312B1132-00

2

PLUG Komatsu S/N 10001-11500 - Was TZMB700-060

3

BOLT Komatsu S/N 10001-11500 - Was TZ300A1019-00

4

6642082

O-RING (kit) - Komatsu S/N 10001-11500

5

O-RING (kit) - Komatsu S/N 10001-11500 - Was TZJW1516-G26-9

6

HUB Komatsu S/N 10001-11500 - Was TZ310B1001-01

7

6669514

FLOT SEAL (kit) - Komatsu S/N 10001-11500

8

PIECE, DISTANCE Komatsu S/N 10001-11500 - Was TZ310B1027-00

9

6658237

RING (kit) - Komatsu S/N 10001-11500

10

6658234

BEARING Komatsu S/N 10001-11500

11

6658644

PIN Komatsu S/N 10001-11500

12

COLLAR Komatsu S/N 10001-11500 - Was TZ310B1020-00

13

6658239

GEAR RV - Komatsu S/N 10001-11500

13

6658240

GEAR Komatsu S/N 10001-11500 - Was TZ310B1204-00

14

6664550

CRANKSHFT Komatsu S/N 10001-11500

15

6658241

BRG roller - Komatsu S/N 10001-11500

16

BEARING, ROLLER Komatsu S/N 10001-11500 - Was TZ310B1023-00

17

SNAP RING KIT (12 kinds) - Komatsu S/N 10001-11500 - Was TZ310B1013-00

18

PIECE, DISTANCE Komatsu S/N 10001-11500 - Was TZ550A1014-00

19

6669497

SPUR GR (3 PIS) - Komatsu S/N 10001-11500

20

RING, SNAP Komatsu S/N 10001-11500 - Was 04064-02212

21

INPUTGEAR NLA - Komatsu S/N 10001-11500 - Was 6669496 - A

22

6637217

SNAP RING Komatsu S/N 10001-11500

23

COVER Komatsu S/N 10001-11500 - Was TZ310B1008-00

24

6658236

O-RING (kit) - Komatsu S/N 10001-11500

25

6641674

RING Komatsu S/N 10001-11500

26

PLUG Komatsu S/N 10001-11500 - Was TZGM3-8

26

6669500

SEAL KIT Komatsu S/N 10001-11500

26

6642082

O-RING Komatsu S/N 10001-11500

26

6658237

RING Komatsu S/N 10001-11500

26

6658236

O-RING Komatsu S/N 10001-11500

26

O-RING Komatsu S/N 10001-11500 - Was TZJW1516-G26-9

26

6669514

FLOT SEAL Komatsu S/N 10001-11500

26

6669492

OIL SEAL Komatsu S/N 10001-11500

26

6669517

ORING Komatsu S/N 10001-11500

26

6637370

O-RING Komatsu S/N 10001-11500

Выбрано товаров: 38
