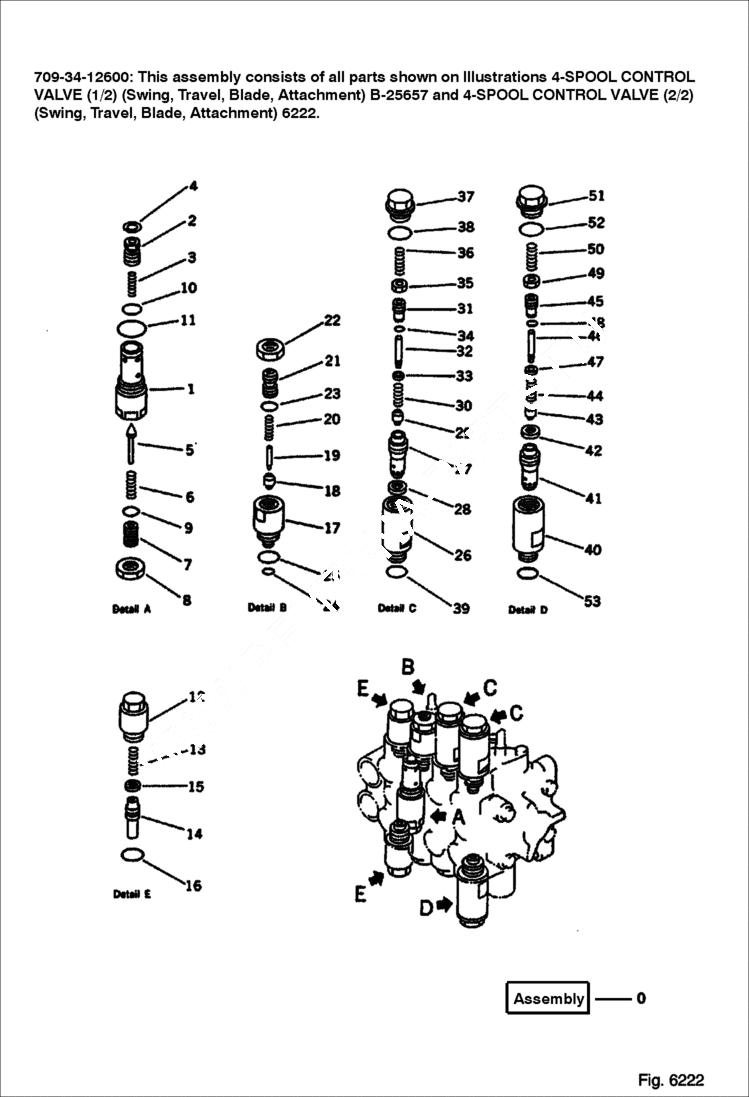

Запчасти Bobcat 100 4-SPOOL CONTROL VALVE (2/2) (SWING, TRAVEL, BLADE, ATTACHMENT) WORK EQUIPMENT CONTROL SYSTEM

0

VALVE ASS'Y Komatsu S/N 13025 & Abv. - Was 709-34-12600

0

VALVE ASS'Y main relief - Komatsu S/N 13025 & Abv. - Was 700-28-56000

1

SLEEVE Komatsu S/N 13025 & Abv.

2

VALVE Komatsu S/N 13025 & Abv.

3

6640220

SPRING Komatsu S/N 13025 & Abv.

4

6640217

RING Komatsu S/N 13025 & Abv.

5

6640258

POPPET Komatsu S/N 13025 & Abv.

6

6640219

SPRING Komatsu S/N 13025 & Abv.

7

6640218

SCREW Komatsu S/N 13025 & Abv.

8

6637115

NUT Komatsu S/N 13025 & Abv.

9

6637335

O-RING Komatsu S/N 13025 & Abv.

10

6640243

O-RING Komatsu S/N 13025 & Abv.

11

6637411

O-RING Komatsu S/N 13025 & Abv.

11

6640551

VALVE ASY suction - Komatsu S/N 13025 & Abv.

12

6640552

SLEEVE Komatsu S/N 13025 & Abv.

13

6640221

SPRING Komatsu S/N 13025 & Abv.

14

VALVE Komatsu S/N 13025 & Abv.

15

SEAL Komatsu S/N 13025 & Abv.

16

6637410

O-RING Komatsu S/N 13025 & Abv.

16

VALVE ASS'Y safety - Komatsu S/N 13025 & Abv. - Was 709-30-65703

17

SLEEVE Komatsu S/N 13025 & Abv.

18

POPPET Komatsu S/N 13025 & Abv.

19

PISTON Komatsu S/N 13025 & Abv.

20

SPRING Komatsu S/N 13025 & Abv.

21

SCREW Komatsu S/N 13025 & Abv.

22

NUT Komatsu S/N 13025 & Abv.

23

O-RING Komatsu S/N 13025 & Abv.

24

6640585

O-RING Komatsu S/N 13025 & Abv.

25

6637410

O-RING Komatsu S/N 13025 & Abv.

25

VALVE ASSY suction and safety - Komatsu S/N 13025 & Abv. - Was 709-30-64101

26

6640555

SLEEVE Komatsu S/N 13025 & Abv.

27

VALVE Komatsu S/N 13025 & Abv.

28

SEAL Komatsu S/N 13025 & Abv.

29

POPPET Komatsu S/N 13025 & Abv.

30

SPRING Komatsu S/N 13025 & Abv.

31

SCREW Komatsu S/N 13025 & Abv.

32

PISTON Komatsu S/N 13025 & Abv.

33

SEAL Komatsu S/N 13025 & Abv.

34

O-RING Komatsu S/N 13025 & Abv.

35

NUT Komatsu S/N 13025 & Abv.

36

6640221

SPRING Komatsu S/N 13025 & Abv.

37

6640556

PLUG Komatsu S/N 13025 & Abv.

38

6637417

O-RING Komatsu S/N 13025 & Abv.

39

6637410

O-RING Komatsu S/N 13025 & Abv.

39

VALVE ASS'Y suction and safety - Komatsu S/N 13025 & Abv. - Was 709-30-63702

40

6640555

SLEEVE Komatsu S/N 13025 & Abv.

41

VALVE Komatsu S/N 13025 & Abv.

42

SEAL Komatsu S/N 13025 & Abv.

43

POPPET Komatsu S/N 13025 & Abv.

44

SPRING Komatsu S/N 13025 & Abv.

45

SCREW Komatsu S/N 13025 & Abv.

46

PISTON Komatsu S/N 13025 & Abv.

47

SEAL Komatsu S/N 13025 & Abv.

48

O-RING Komatsu S/N 13025 & Abv.

49

NUT Komatsu S/N 13025 & Abv.

50

6640221

SPRING Komatsu S/N 13025 & Abv.

51

6640556

PLUG Komatsu S/N 13025 & Abv.

52

6637417

O-RING Komatsu S/N 13025 & Abv.

53

6637410

O-RING Komatsu S/N 13025 & Abv.
