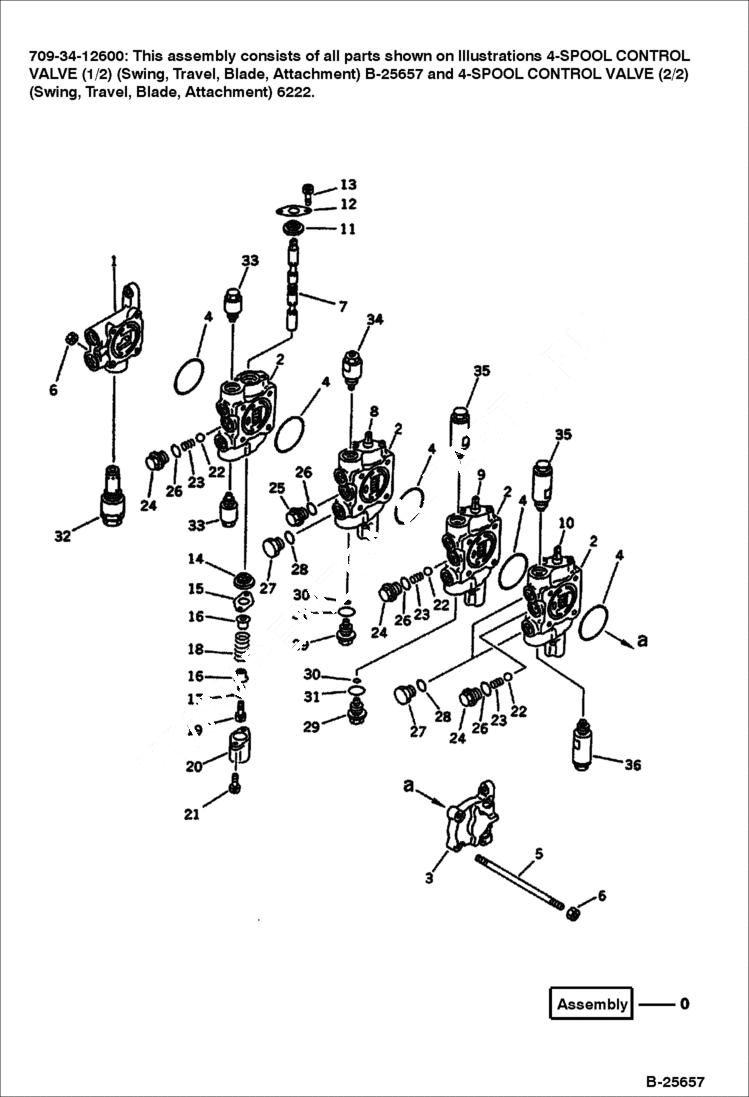

Запчасти Bobcat 100 4-SPOOL CONTROL VALVE (1/2) (SWING, TRAVEL, BLADE, ATTACHMENT) WORK EQUIPMENT CONTROL SYSTEM

0

VALVE ASS'Y Komatsu S/N 13025 & Abv. - Was 709-34-12600

1

BLOCK Komatsu S/N 13025 & Abv.

2

BLOCK Komatsu S/N 13025 & Abv.

3

COVER Komatsu S/N 13025 & Abv.

4

6637375

O-RING Komatsu S/N 13025 & Abv.

5

6643196

STUD Komatsu S/N 13025 & Abv.

6

NUT Komatsu S/N 13025 & Abv. - Was 01580-10806

7

SPOOL, SWING Komatsu S/N 13025 & Abv.

8

SPOOL, TRAVEL SPEED Komatsu S/N 13025 & Abv.

9

SPOOL, BLADE Komatsu S/N 13025 & Abv.

10

SPOOL, ATTACHMENT Komatsu S/N 13025 & Abv.

11

6640575

SEAL Komatsu S/N 13025 & Abv.

12

6640576

SHIELD Komatsu S/N 13025 & Abv.

13

6637049

BOLT Komatsu S/N 13025 & Abv.

14

6640575

SEAL Komatsu S/N 13025 & Abv.

15

6640576

SHIELD Komatsu S/N 13025 & Abv.

16

6640577

RETAINER Komatsu S/N 13025 & Abv.

17

6640578

COLLAR Komatsu S/N 13025 & Abv.

18

6640580

SPRING Komatsu S/N 13025 & Abv.

19

6637051

BOLT Komatsu S/N 13025 & Abv.

20

6640579

COVER Komatsu S/N 13025 & Abv.

21

6637050

BOLT Komatsu S/N 13025 & Abv.

22

6637318

BALL Komatsu S/N 13025 & Abv.

23

6640583

SPRING Komatsu S/N 13025 & Abv.

24

6640582

PLUG Komatsu S/N 13025 & Abv.

25

PLUG Komatsu S/N 13025 & Abv. - Was 709-32-11930

26

6637415

O-RING Komatsu S/N 13025 & Abv.

27

6637436

PLUG Komatsu S/N 13025 & Abv.

28

6637415

O-RING Komatsu S/N 13025 & Abv.

29

6640584

PLUG Komatsu S/N 13025 & Abv.

30

6640585

O-RING Komatsu S/N 13025 & Abv.

31

6637410

O-RING Komatsu S/N 13025 & Abv.

32

VALVE ASS'Y relief - Komatsu S/N 13025 & Abv. - Was 700-28-56000

33

6640551

VALVE ASY suction - Komatsu S/N 13025 & Abv.

34

VALVE ASS'Y safety - Komatsu S/N 13025 & Abv. - Was 709-30-65703

35

VALVE ASS'Y suction and safety - Komatsu S/N 13025 & Abv. - Was 709-30-64101

36

VALVE ASS'Y safety - Komatsu S/N 13025 & Abv. - Was 709-30-63702
