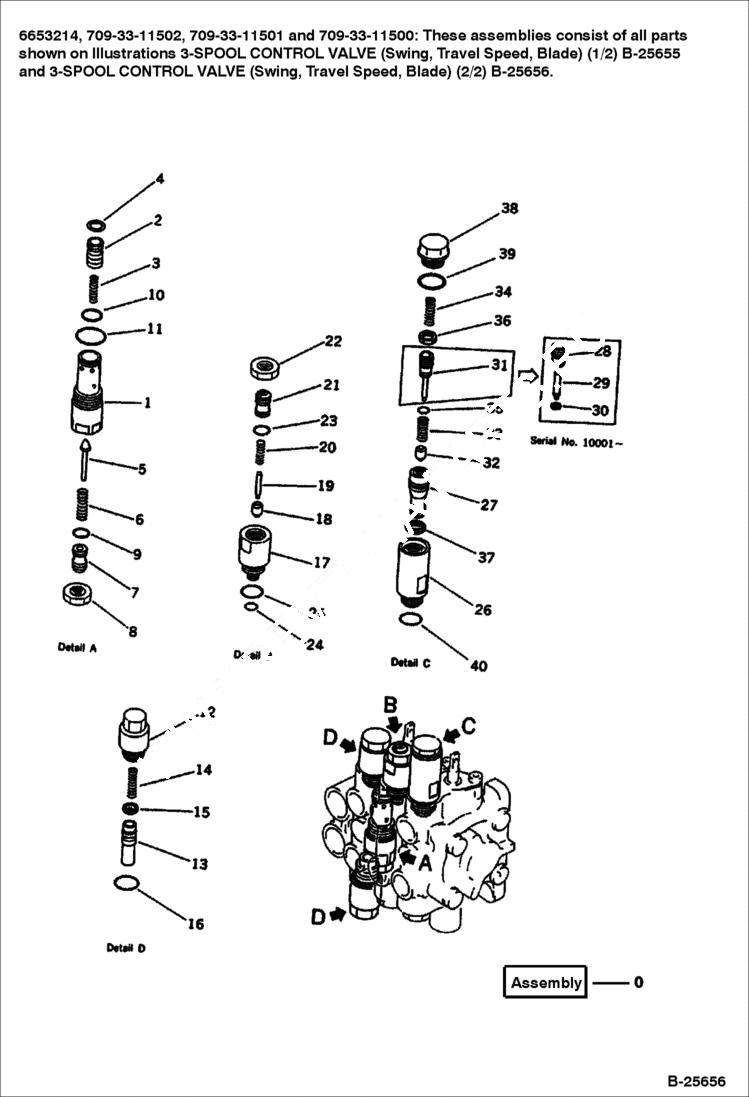

Запчасти Bobcat 100 3-SPOOL CONTROL VALVE (SWING, TRAVEL SPEED, BLADE) (2/2) WORK EQUIPMENT CONTROL SYSTEM

0

6653214

VALVE ASY

0

VALVE ASS'Y Komatsu S/N 10501-12575 - Was 709-33-11502

0

VALVE ASS'Y Komatsu S/N 10065-10500 - Was 709-33-11501

0

VALVE ASS'Y Komatsu S/N 10001-10064 - Was 709-33-11500

0

VALVE ASS'Y main relief - Was 700-28-56000

1

SLEEVE

2

VALVE

3

6640220

SPRING

4

6640217

RING

5

6640258

POPPET

6

6640219

SPRING

7

6640218

SCREW

8

6637115

NUT

9

6637335

O-RING

10

6640243

O-RING

11

6637411

O-RING

11

6640551

VALVE ASY suction

12

6640552

SLEEVE

13

VALVE

14

6640221

SPRING

15

SEAL

16

6637410

O-RING

16

VALVE ASS'Y safety - Komatsu S/N 10501 & Abv. - Was 709-30-65703

17

6643235

VALVE ASY safety - Komatsu S/N 10001-10500

18

POPPET

19

PISTON

20

SPRING

21

SCREW

22

NUT

23

O-RING

24

6640585

O-RING

25

6637410

O-RING

25

VALVE ASS'Y suction and safety - Was 709-30-64101

25

VALVE ASS'Y suction and safety - Komatsu S/N 10001-12575 - Was 709-30-63800

26

6640555

SLEEVE

27

VALVE

27

VALVE Komatsu S/N 10001-12575

28

SCREW

29

PISTON

30

SEAL

31

PISTON Komatsu S/N 10001-12575

32

POPPET

32

POPPET Komatsu S/N 10001-12575

33

SPRING

34

6640221

SPRING

35

O-RING

36

NUT

37

SEAL

38

6640556

PLUG

39

6637417

O-RING

40

6637410

O-RING
