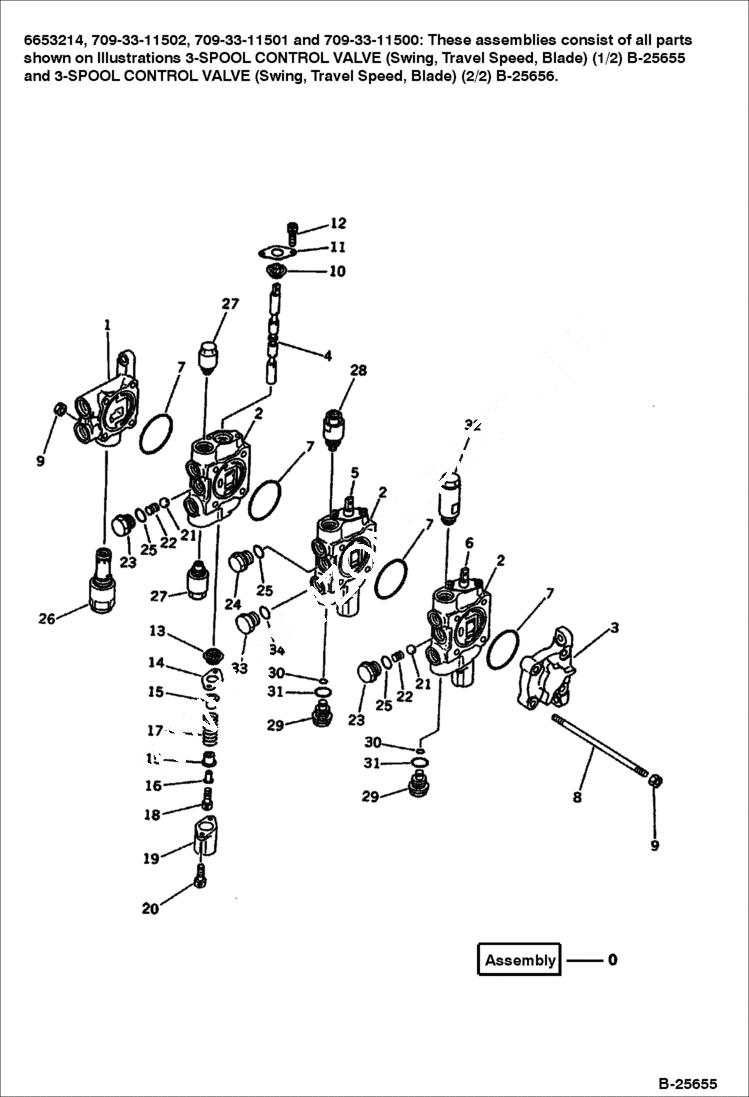

Запчасти Bobcat 100 3-SPOOL CONTROL VALVE (SWING, TRAVEL SPEED, BLADE) (1/2) WORK EQUIPMENT CONTROL SYSTEM

0

6653214

VALVE ASY

0

VALVE ASS'Y Komatsu S/N 10501-12575 - Was 709-33-11502

0

6653214

VALVE ASY Komatsu S/N 10065-10500 - Was 709-33-11501

0

VALVE ASS'Y Komatsu S/N 10001-10064 - Was 709-33-11500

1

BLOCK

2

BLOCK

3

COVER

4

SPOOL, SWING

5

SPOOL, TRAVEL SPEED

6

SPOOL, BLADE

7

6637375

O-RING

8

6640590

STUD

9

NUT Was 01580-10806

10

6640575

SEAL

11

6640576

SHIELD

12

6637049

BOLT

13

6640575

SEAL

14

6640576

SHIELD

15

6640577

RETAINER

16

6640578

COLLAR

17

6640580

SPRING

18

6637051

BOLT

19

6640579

COVER

20

6637050

BOLT

21

6637318

BALL

22

6640583

SPRING

23

6640582

PLUG

24

PLUG Was 709-32-11930

25

6637415

O-RING

26

VALVE ASS'Y main relief - Was 700-28-56000

27

6640551

VALVE ASY suction

28

VALVE ASS'Y safety - Komatsu S/N 10501 & Abv. - Was 709-30-65703

28

6643235

VALVE ASY safety - Komatsu S/N 10001-10500

29

6640584

PLUG

30

6640585

O-RING

31

6637410

O-RING

32

VALVE ASS'Y suction and safety - Was 709-30-64101

32

VALVE ASS'Y suction and safety - Komatsu S/N 10001-12575 - Was 709-30-63800

33

6637436

PLUG

34

6637415

O-RING
