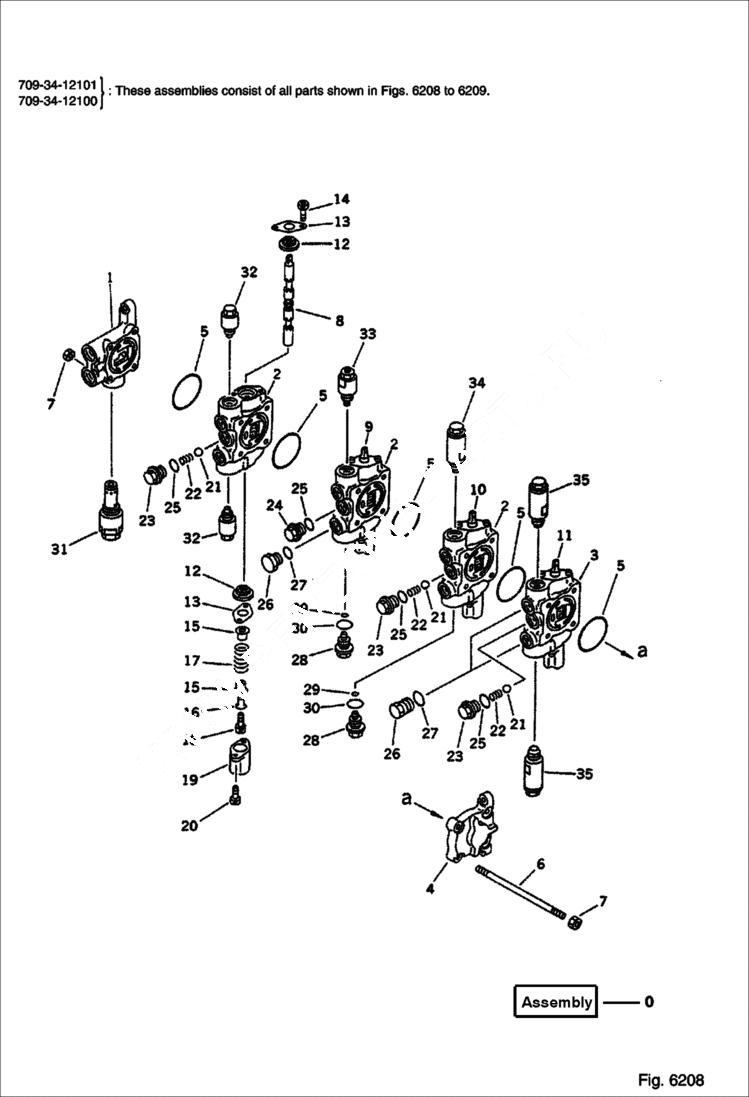

Запчасти Bobcat 100 4-SPOOL CONTROL VALVE (1/2) (SWING, TRAVEL, BLADE, ATTACHMENT) WORK EQUIPMENT CONTROL SYSTEM

0

VALVE ASS'Y Was 709-34-12101

0

VALVE ASS'Y Komatsu S/N 10001-12575 - Was 709-34-12100

1

BLOCK

2

BLOCK

3

BLOCK

4

COVER

5

6637375

O-RING

6

6643196

STUD

7

NUT Was 01580-10806

8

SPOOL, SWING

9

SPOOL, TRAVEL SPEED

10

SPOOL, BLADE

11

SPOOL, ATTACHMENT

12

6640575

SEAL

13

6640576

SHIELD

14

6637049

BOLT

15

6640577

RETAINER

16

6640578

COLLAR

17

6640580

SPRING

18

6637051

BOLT

19

6640579

COVER

20

6637050

BOLT

21

6637318

BALL

22

6640583

SPRING

23

6640582

PLUG

24

PLUG Was 709-32-11930

25

6637415

O-RING

26

6637436

PLUG

27

6637415

O-RING

28

6640584

PLUG

29

6640585

O-RING

30

6637410

O-RING

31

VALVE ASS'Y Was 700-28-56000

32

6640551

VALVE ASY

33

VALVE ASS'Y Was 709-30-65703

33

6643235

VALVE ASY

34

VALVE ASS'Y Was 709-30-64101

34

VALVE ASS'Y Komatsu S/N 10001-12575 - Was 709-30-63800

35

6640559

VALVE ASY

35

VALVE ASS'Y Komatsu S/N 10001-12575 - Was 709-30-62400
