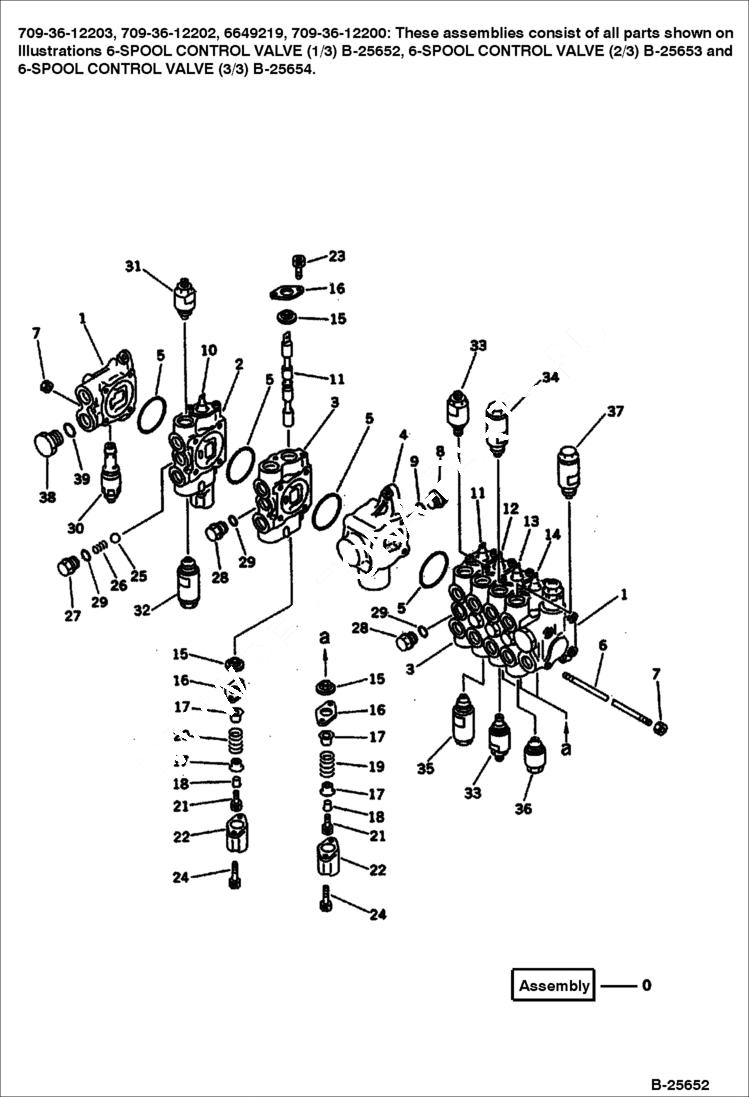

Запчасти Bobcat 100 6-SPOOL CONTROL VALVE (1/3) WORK EQUIPMENT CONTROL SYSTEM

0

VALVE ASS'Y Was 709-36-12203

0

VALVE ASS'Y Komatsu S/N 11655-12575 - Was 709-36-12202

0

6649219

VALVE ASY Komatsu S/N 10065-11654

0

VALVE ASS'Y Komatsu S/N 10001-10064 - Was 709-36-12200

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

6637375

O-RING

6

6640595

STUD

7

NUT Was 01580-10806

8

PLUG

9

O-RING

10

SPOOL, ARM

11

SPOOL, TRAVEL

12

SPOOL, BUCKET

13

SPOOL. BOOM

14

SPOOL, BOOM SWING

15

6640575

SEAL

16

6640576

SHIELD

17

6640577

RETAINER

18

6640578

COLLAR

19

6640580

SPRING

20

6640581

SPRING

21

6637051

BOLT

22

6640579

COVER

23

6637049

BOLT

24

6637050

BOLT

25

6637318

BALL

26

6640583

SPRING

27

6640582

PLUG

28

PLUG Was 709-32-11930

29

6637415

O-RING

30

6669709

REL VALVE main

31

6640566

VALVE ASSY suction and safety

32

6654899

VALVE ASY suction and safety

32

VALVE ASS'Y suction and safety - Was 709-30-63201

32

6640562

VALVE ASY suction and safety

33

VALVE ASS'Y safety - Was 709-30-66200

34

VALVE ASS'Y suction and safety - Was 709-30-63702

34

VALVE ASS'Y suction and safety - Komatsu S/N 11655-12575 - Was 709-30-63701

34

VALVE ASS'Y suction and safety - Komatsu S/N 10001-11654 - Was 709-30-63700

35

6640559

VALVE ASY suction and safety

35

VALVE ASS'Y suction and safety - Komatsu S/N 10001-12575 - Was 709-30-62400

36

6640551

VALVE ASY suction

37

6654899

VALVE ASY suction and safety

37

VALVE ASS'Y suction and safety - Komatsu S/N 11655-12575 - Was 709-30-63601

37

VALVE ASS'Y suction and safety - Komatsu S/N 10001-11654 - Was 709-30-63600

38

6637437

PLUG

39

6637410

O-RING
