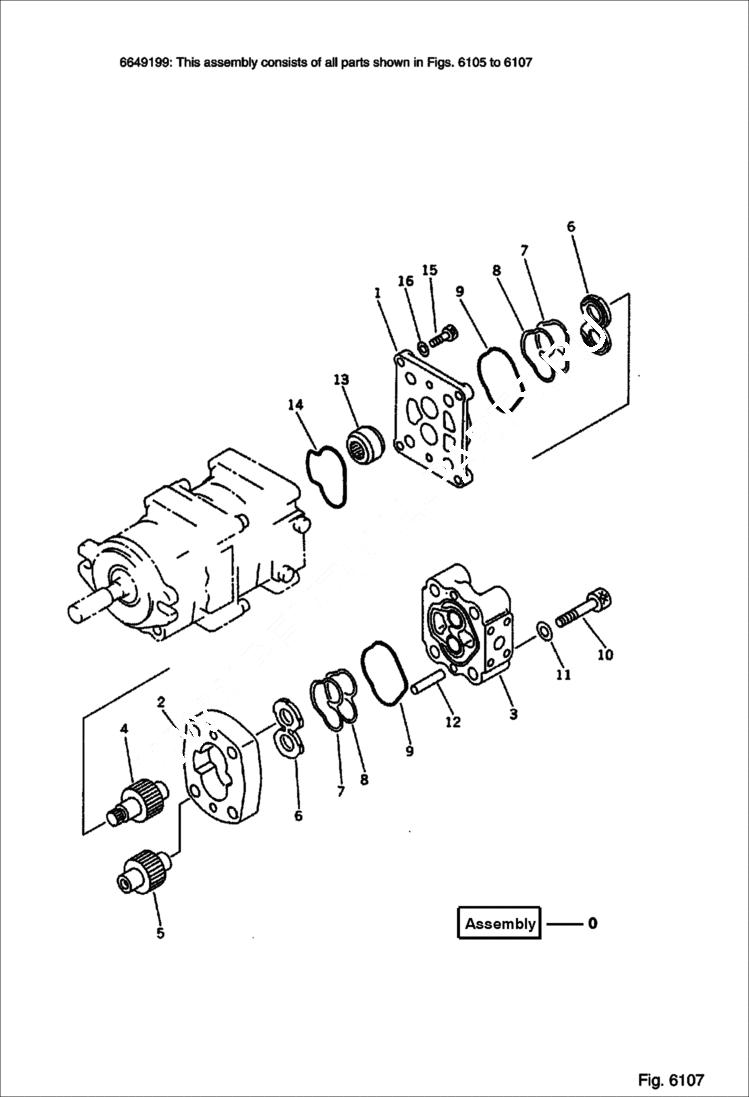

Запчасти Bobcat 100 HYDRAULIC PUMP (3/3) WORK EQUIPMENT CONTROL SYSTEM

0

6649199

PUMP ASSY

0

PUMP ASS'Y Was 705-41-05001

1

BRACKET Was 705-40-80511

1

BUSHING, PLANE (for driven) - Was 705-40-80610

1

BUSHING, PLANE (for drive) - Was 705-40-80620

2

CASE, GEAR Was 705-40-20011

3

COVER Was 705-40-80111

3

BUSHING, PLANE (for drive) - Was 705-40-80610

3

BUSHING, PLANE (for driven) - Was 705-40-80620

4

GEAR, DRIVE Was 705-40-20452

5

GEAR, DRIVEN Was 705-40-20511

6

6661680

WEARPLATE side

7

RING, BACK-UP Was 705-40-80730

8

RING, SEAL Was 705-40-80740

9

RING, SEAL Was 705-40-80630

10

BOLT Was 705-41-80860

11

WASHER Was 01643-51232

12

6640322

PIN

13

6640316

COUPLING

14

6649196

SEAL

15

6637052

BOLT

16

WASHER Was 01643-50823
