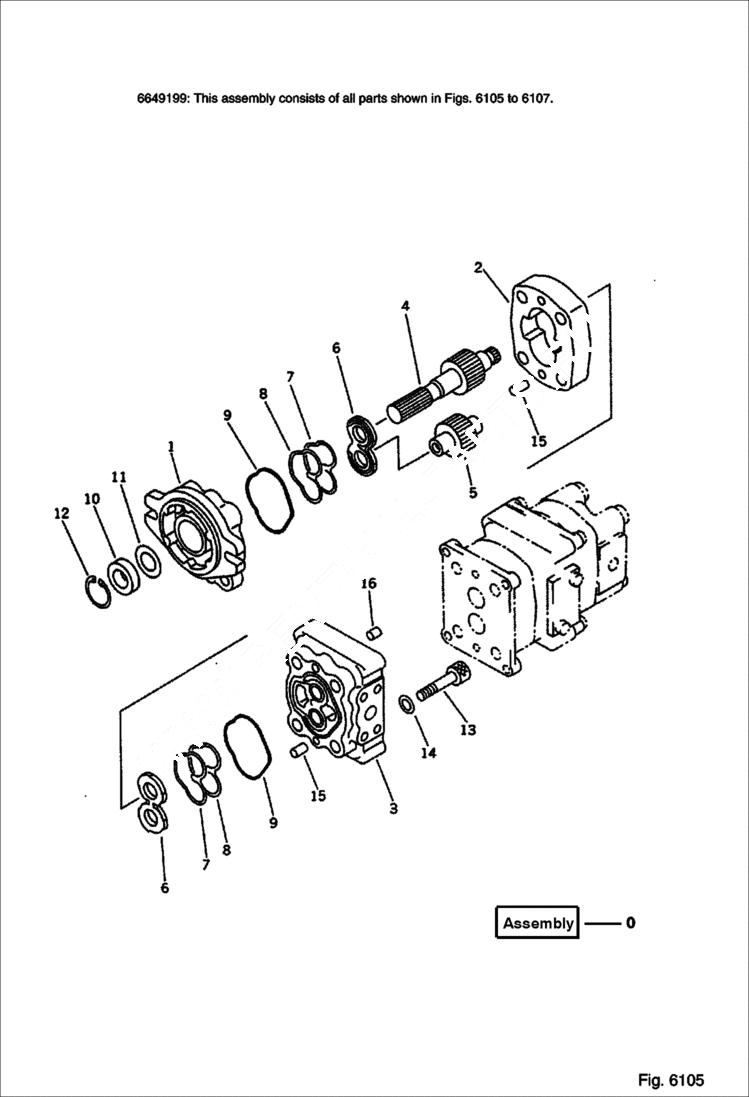

Запчасти Bobcat 100 HYDRAULIC PUMP (1/3) WORK EQUIPMENT CONTROL SYSTEM

0

6649199

PUMP ASSY

0

PUMP ASS'Y Was 705-41-03001

1

BRACKET Was 705-41-80210

1

BUSHING, PLANE (for driven) - Was 705-40-80610

1

BUSHING, PLANE (for drive) - Was 705-40-80620

2

CASE, GEAR Was 705-40-22011

3

CARRIER Was 705-40-80311

3

BUSHING, PLANE (for drive) - Was 705-40-80610

3

BUSHING, PLANE (for driven) - Was 705-40-80620

4

GEAR, DRIVE Was 705-40-22342

5

GEAR, DRIVEN Was 705-40-22511

6

6661680

WEARPLATE side

7

RING, BACK-UP Was 705-40-80730

8

RING, SEAL Was 705-40-80740

9

RING, SEAL Was 705-40-80630

10

6649197

OIL SEAL

11

6660589

PLATE

12

6637231

RING, SNAP

13

BOLT Was 01252-31270

14

WASHER Was 01643-51232

15

6637175

PIN, DOWEL

16

6640315

PIN
