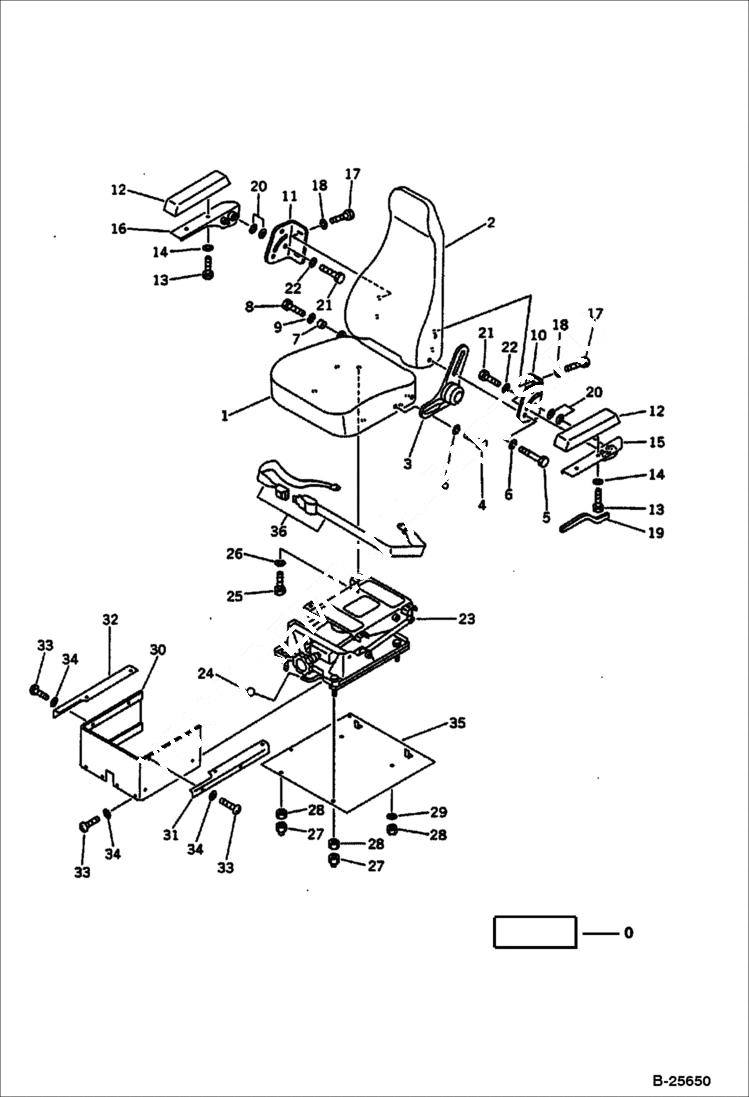

Запчасти Bobcat 100 OPERATORS SEAT (WITH OIL SUSPENSION) (OP) GUARD

0

SEAT GROUP Was 20T-57-X1101

1

6660065

SEAT CUSH

2

6642936

CUSHION

3

6642186

RECLINING lever

4

6636967

BOLT

5

6636972

BOLT

6

6637135

WASHER

7

6639208

SHIM

8

6636967

BOLT

9

6637135

WASHER

10

6642938

BRACKET L.H.

11

6642939

BRACKET R.H.

12

6642937

CUSHION

13

6636961

BOLT

14

6637134

WASHER

15

6642940

SUPPORT L.H.

16

6642941

SUPPORT R.H.

17

6636966

BOLT

18

6637135

WASHER

19

6639392

SEAL

20

6637886

SPRING

21

6636978

BOLT

22

6637158

WASHER

23

6642849

SUSPENSIO

24

6648790

KNOB

25

6636966

BOLT

26

6637135

WASHER

27

6639463

NUT

28

6637109

NUT

29

6637136

WASHER

30

6642850

BOOT cover

31

6642851

PLATE L.H.

32

6642852

PLATE L.H.

33

6637038

SCREW

34

6637145

WASHER

35

COVER Was 20S-57-31140

36

6642613

BELT ASSY
