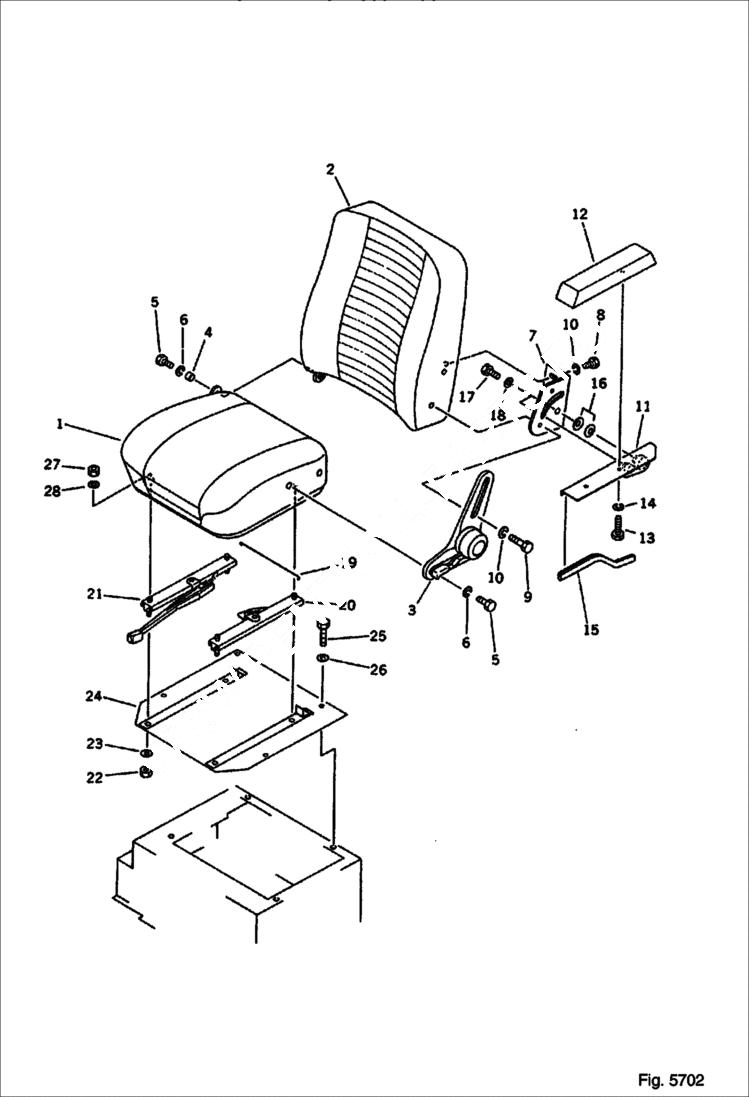

Запчасти Bobcat 100 OPERATORS SEAT (FOR CANOPY) Komatsu S/N 10001-13024 GUARD

1

6639388

CUSHION seat - Komatsu S/N 10001-13024

2

6638802

CUSHION back - Komatsu S/N 10001-13024

3

6639384

LEVER Komatsu S/N 10001-13024

4

6639208

SHIM Komatsu S/N 10001-13024

5

6636966

BOLT Komatsu S/N 10001-13024

6

6637135

WASHER Komatsu S/N 10001-13024

7

6639390

BRACKET Komatsu S/N 10001-13024

8

6636966

BOLT Komatsu S/N 10001-13024

9

6636972

BOLT Komatsu S/N 10001-13024

10

6637135

WASHER Komatsu S/N 10001-13024

11

6639391

BRACE Komatsu S/N 10001-13024

12

6639389

ARM REST Komatsu S/N 10001-13024

13

6636961

BOLT Komatsu S/N 10001-13024

14

6637134

WASHER Komatsu S/N 10001-13024

15

6639392

SEAL Komatsu S/N 10001-13024

16

SPRING Was 20T-57-31110

17

6636978

BOLT Komatsu S/N 10001-13024

18

6637158

WASHER Komatsu S/N 10001-13024

19

6639387

BAR Komatsu S/N 10001-13024

20

6639385

REGULATOR Komatsu S/N 10001-13024

21

6639386

REGULATOR Komatsu S/N 10001-13024

22

6637109

NUT Komatsu S/N 10001-13024

23

6637158

WASHER Komatsu S/N 10001-13024

24

COVER Komatsu S/N 10001-13024 - Was 20S-57-31110

25

6636966

BOLT

26

6637157

WASHER

27

6637109

NUT Komatsu S/N 10001-13024

28

6637158

WASHER Komatsu S/N 10001-13024
