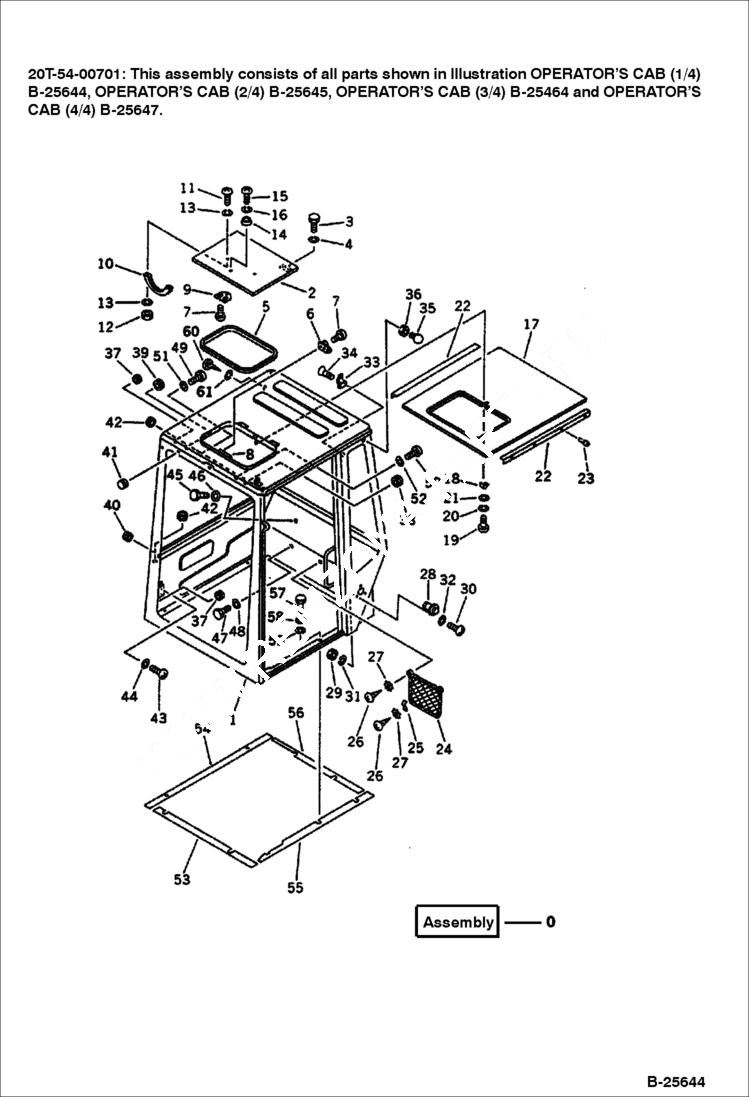

Запчасти Bobcat 100 OPERATORS CAB (1/4) GUARD

0

OPERATORS CAB ASS'Y Was 20T-54-00701

1

6639480

CAB

2

COVER Was 20T-54-43310

3

6636956

BOLT

4

6637134

WASHER

5

6639500

SEAL

6

6639199

CATCHER

7

6637026

SCREW

8

6639201

SHIELD

9

6639200

HOOK

10

6638299

GRIP

11

6637032

SCREW

12

6637105

NUT

13

6637126

WASHER

14

6639533

BOSS

15

6637027

SCREW

16

6637123

WASHER

17

6639505

BOARD

18

6639461

SHIELD

19

6637026

SCREW

20

6637123

WASHER

21

6637143

WASHER

22

6639506

PLATE finisher

23

6639534

RIVET

24

6639905

SEAL, POCKET

25

6639906

SADDLE

26

6637063

SCREW

27

6637140

WASHER

28

6639459

CATCH ASY

29

6637106

NUT

30

6637040

SCREW

31

6637133

WASHER

32

6637145

WASHER

33

6639289

HANGER

34

SCREW Was 01381-10416

35

STOPPER Was 21K-54-11310

36

6637109

NUT

37

6637700

GROMMET

38

6637701

GROMMET

39

6637758

CAP

40

6637756

CAP

41

6637754

CAP

42

6637702

GROMMET

43

6637030

SCREW

44

6637144

WASHER

45

6636951

BOLT

46

6637145

WASHER

47

6636965

BOLT

48

6637157

WASHER

49

6637031

SCREW

50

6637039

SCREW

51

6637144

WASHER

52

6637145

WASHER

53

SEAT Was 20T-54-32561

54

SEAT Was 20T-54-32571

55

SEAT Was 20T-54-32581

56

SEAT Was 20T-54-32591

57

6636947

BOLT

58

6637129

WASHER

59

6637157

WASHER

60

6637062

SCREW

61

6637143

WASHER
