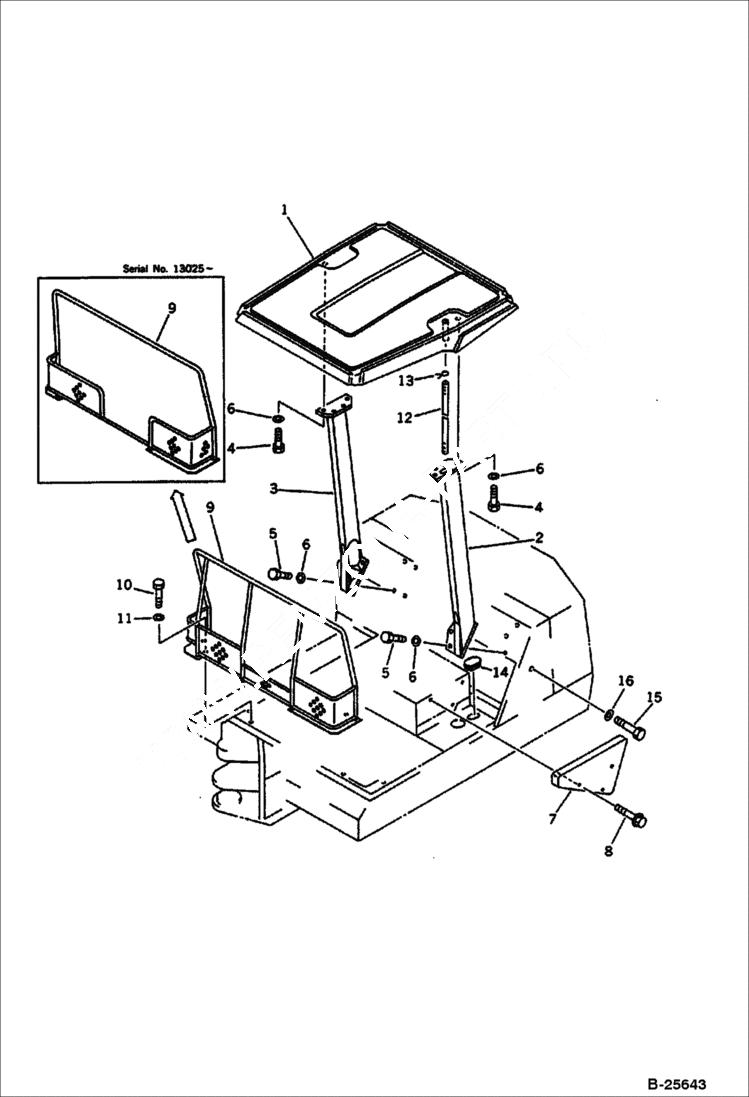

Запчасти Bobcat 100 CANOPY GUARD

1

CANOPY roof - Was 20S-54-33110

2

POLE, L.H. Komatsu S/N 13025 & Abv. - Was 20S-54-33132

2

POLE, L.H. (20S-54-33132, 20S-54-33142) Komatsu S/N 10001-13024 - Was 20S-54-33131

3

POLE, R.H. Komatsu S/N 13025 & Abv. - Was 20S-54-33142

3

POLE, R.H. (20S-54-33142, 20S-54-33132) Komatsu S/N 10001-13024 - Was 20S-54-33141

4

6636967

BOLT

5

6636967

BOLT

6

6637157

WASHER

7

COVER Was 20S-54-32180

8

BOLT Was 20S-54-22270

9

GUARD Komatsu S/N 13025 & Abv. - Was 20S-54-33321

9

GUARD Komatsu S/N 10001-13024 - Was 20S-54-33310

10

6636968

BOLT

11

6637157

WASHER

12

6637642

HOSE

13

6637216

WIRE

14

6638750

CAP

15

6636978

BOLT

16

6637158

WASHER
