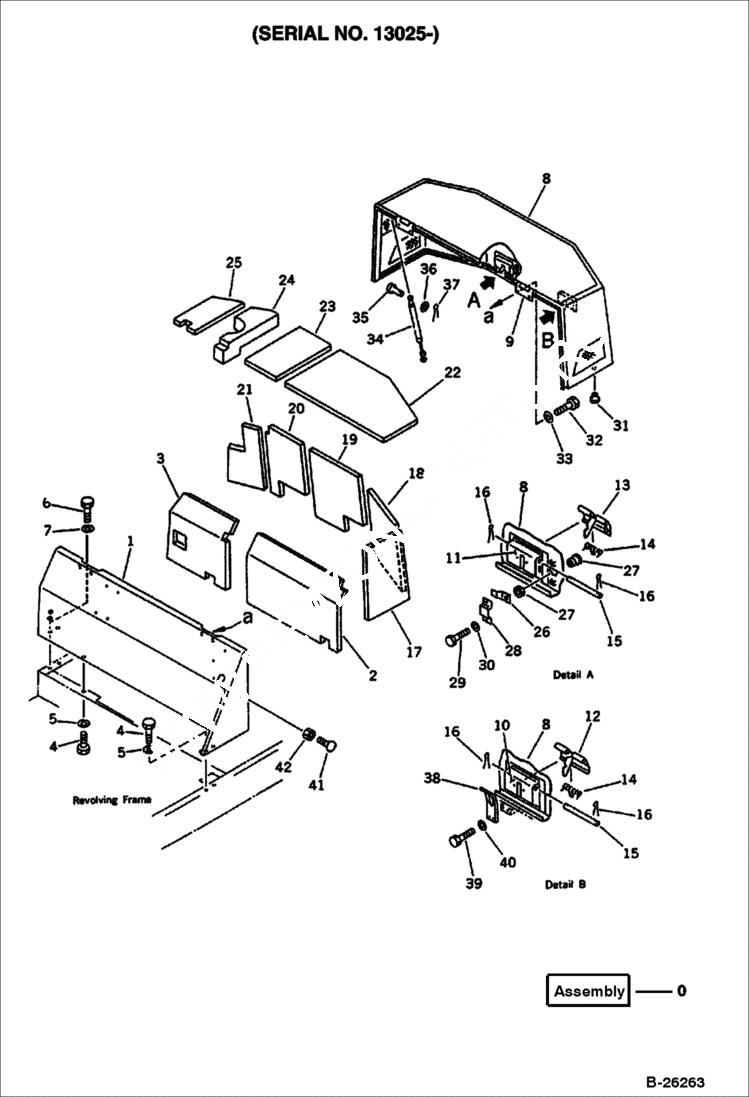

Запчасти Bobcat 100 MACHINE CAB (3/3) Komatsu S/N 13025 & Abv. GUARD

0

COVER ASSY Komatsu S/N 13025 & Abv. - Was 20S-54-31302

1

COVER Komatsu S/N 13025 & Abv.

2

SHEET Komatsu S/N 13025 & Abv. - Was 20S-54-31321

3

SHEET Was 20-54-31330

4

6636968

BOLT

5

6637157

WASHER

6

6636992

BOLT

7

6637159

WASHER

8

HOOD ASSY Komatsu S/N 13025 & Abv. - Was 20S-54-31400

9

HINGE (welded) - Was 20S-54-31160

10

COVER (welded) - Komatsu S/N 13025 & Abv. - Was 20S-54-21440

11

COVER (welded) - Komatsu S/N 13025 & Abv. - Was 20S-54-25140

12

LEVER Komatsu S/N 13025 & Abv. - Was 20S-54-31120

13

LEVER Komatsu S/N 13025 & Abv. - Was 20S-54-34120

14

6639464

SPRING

15

6638780

PIN

16

6637198

PIN, COTTER

17

SHEET Komatsu S/N 13025 & Abv. - Was 20S-54-31232

18

6654775

SHEET

19

6654776

SHEET

20

SHEET Komatsu S/N 13025 & Abv. - Was 20S-54-36320

21

SHEET Komatsu S/N 13025 & Abv. - Was 20S-54-31272

22

6654770

SHEET

23

SHEET Was 20S-54-31221

24

SHEET Was 20S-54-31211

25

SHEET Was 20S-54-31350

26

6642783

PLATE Komatsu S/N 13025 & Abv.

27

6642599

LOCK ASSY Komatsu S/N 13025 & Abv.

28

6642926

COVER Komatsu S/N 13025 & Abv.

29

6636956

BOLT Komatsu S/N 13025 & Abv.

30

6637156

WASHER Komatsu S/N 13025 & Abv.

31

6639202

STOPPER

32

6636967

BOLT

33

6637157

WASHER

34

SPRING, GAS Komatsu S/N 10900 & Abv. - Was 20U-54-11631

35

PIN Was 04205-10828

36

6637146

WASHER

37

PIN, COTTER Was 04050-12015

38

LOCK Was 20S-54-31361

39

6636967

BOLT

40

6637157

WASHER

41

STOPPER (for cab) - Was 20T-54-27591

42

6637109

NUT (for cab)
