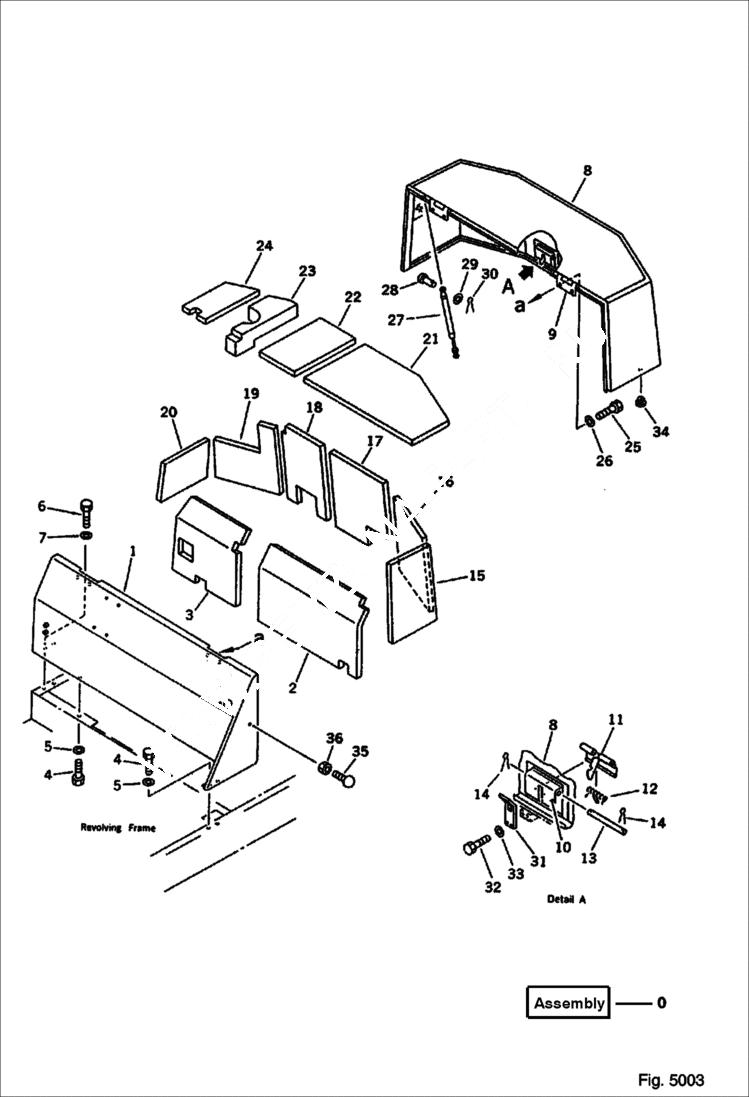

Запчасти Bobcat 100 MACHINE CAB (3/3) Komatsu S/N 10001-13024 GUARD

0

COVER ASS'Y Komatsu S/N 13025 & Abv. - Was 20S-54-31302

0

COVER Komatsu S/N 10001-13024 - Was 20S-54-31301

1

COVER Komatsu S/N 10001-13024 - Was 20S-54-31311

2

SHEET Komatsu S/N 10001-13024 - Was 20S-54-31320

3

SHEET Was 20S-54-31330

4

6636968

BOLT

5

6637157

WASHER

6

6636992

BOLT

7

6637159

WASHER

8

HOOD ASS'Y Komatsu S/N 10001-13024 - Was 20S-54-31101

9

HINGE (welded) - Was 20S-54-31160

10

COVER (welded) - Komatsu S/N 10001-13024 - Was 20S-54-21440

11

LEVER Komatsu S/N 10001-13024 - Was 20S-54-31120

12

6639464

SPRING

13

6638780

PIN

14

6637198

PIN, COTTER

15

6654774

SHEET Komatsu S/N 10001-13024

16

6654775

SHEET

17

6654776

SHEET

18

6654777

SHEET Komatsu S/N 10001-13024

19

6654778

SHEET Komatsu S/N 10001-13024

20

SHEET Komatsu S/N 10001-13024 - Was 20S-54-31281

21

6654770

SHEET

22

SHEET Was 20S-54-31221

23

SHEET Was 20S-54-31211

24

SHEET Was 20S-54-31350

25

6636967

BOLT

26

6637157

WASHER

27

SPRING, GAS Komatsu S/N 10900 & Abv. - Was 20U-54-11631

27

SPRING, GAS Komatsu S/N 10001-10899 - Was 20U-54-11630

28

PIN Was 04050-10828

29

6637146

WASHER

30

PIN, COTTER Was 04050-12015

31

LOCK Was 20S-54-31361

32

6636967

BOLT

33

6637157

WASHER

34

6639202

STOPPER

35

STOPPER (for cab) - Was 20T-54-27591

36

6637109

NUT (for cab)
