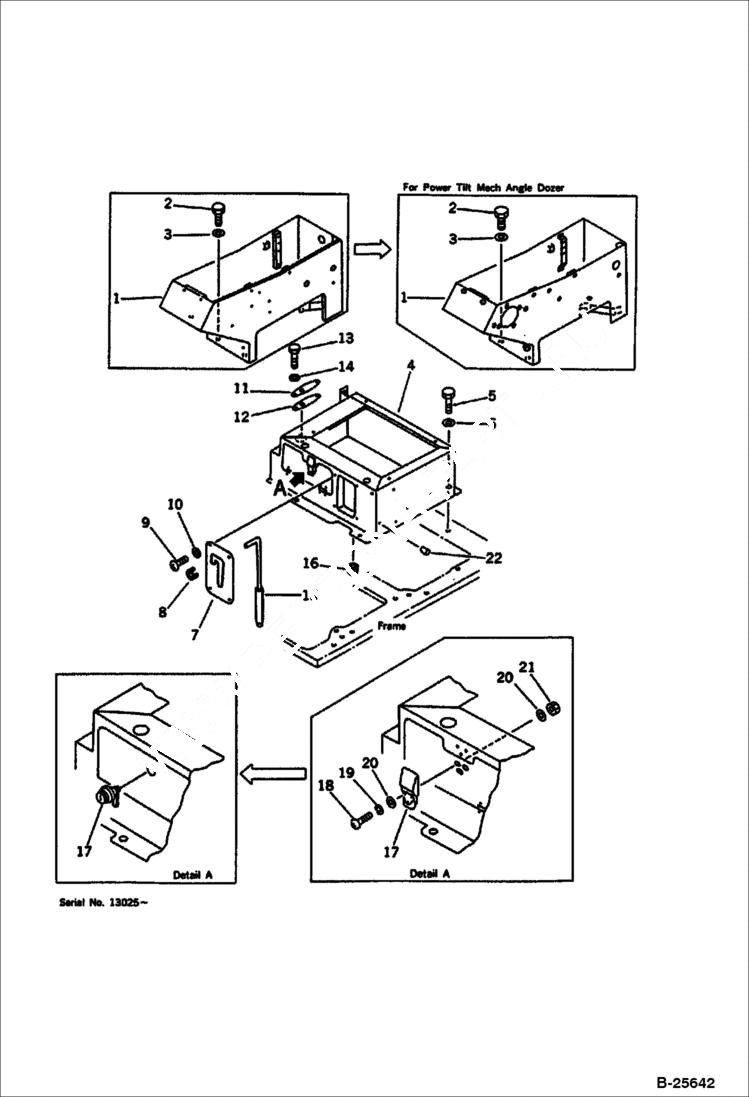

Запчасти Bobcat 100 MACHINE CAB (2/3) GUARD

1

BOX Komatsu S/N 13025 & Abv. - Was 20S-54-32131

1

BOX Komatsu S/N 10001-13024 - Was 20S-54-32130

1

BOX (for power tilt mech angle) - Komatsu S/N 13025 & Abv. - Was 20T-910-4270

2

6636967

BOLT

3

6637157

WASHER

4

BOX Komatsu S/N 13025 & Abv. - Was 20T-54-42121

4

BOX Komatsu S/N 10001-13024 - Was 20S-54-32120

5

6636966

BOLT

6

6637157

WASHER

7

PLATE Was 20S-54-32230

8

6638749

GROMMET

9

6637039

SCREW

10

6637155

WASHER

11

PLATE Was 20S-54-32240

12

6642831

SHEET

13

6636954

BOLT

14

6637155

WASHER

15

6639474

PIN

16

6637701

GROMMET

17

6639396

LOCK ASSY Komatsu S/N 13025 & Abv.

17

HOLDER Komatsu S/N 10001-13024 - Was 362-54-14881

18

SCREW Komatsu S/N 10001-13024 - Was 01220-40310

19

6642039

WASHER Komatsu S/N 10001-13024

20

WASHER Komatsu S/N 10001-13024 - Was 01641-20305

21

NUT Komatsu S/N 10001-13024 - Was 01580-10302

22

6637464

PLUG
