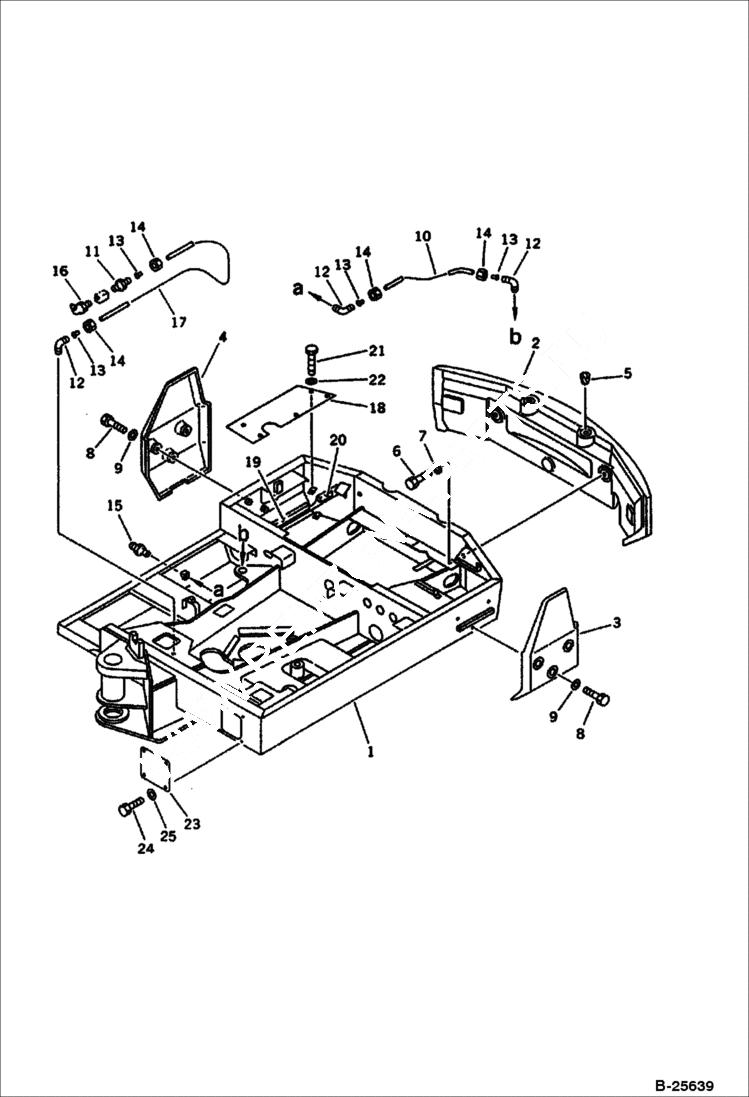

Запчасти Bobcat 100 REVOLVING FRAME Komatsu S/N 10001-13024 CONTROL SYSTEM AND REVOLVING FRAME

1

FRAME, REVOLVING Komatsu S/N 10001-13024 - Was 20S-46-31111

2

WEIGHT, COUNTER Was 20S-46-31311

3

WEIGHT, COUNTER, L.H. Komatsu S/N 10001-13024 - Was 20S-46-31321

4

WEIGHT, COUNTER, R.H. Komatsu S/N 10001-13024 - Was 20S-46-31331

5

6637468

PLUG

6

6637001

BOLT

7

6637161

WASHER

8

6636986

BOLT

9

6637158

WASHER

10

6646759

TUBE

11

6638568

CONNECTOR Komatsu S/N 10001-13024

12

6638567

ELBOW Komatsu S/N 10001-13024

13

6637661

SLEEVE Komatsu S/N 10001-13024

14

6637664

NUT Komatsu S/N 10001-13024

15

6637430

FITTING Komatsu S/N 10001-13024

16

6637431

FITTING Komatsu S/N 10001-13024

17

6639465

TUBE

18

COVER Komatsu S/N 10001-13024 - Was 20S-46-31211

19

PACKING Was 20S-46-31220

20

PACKING Was 20S-46-31230

21

6636966

BOLT

22

6637157

WASHER

23

COVER Was 20S-46-31240

24

6636958

BOLT

25

6637156

WASHER
