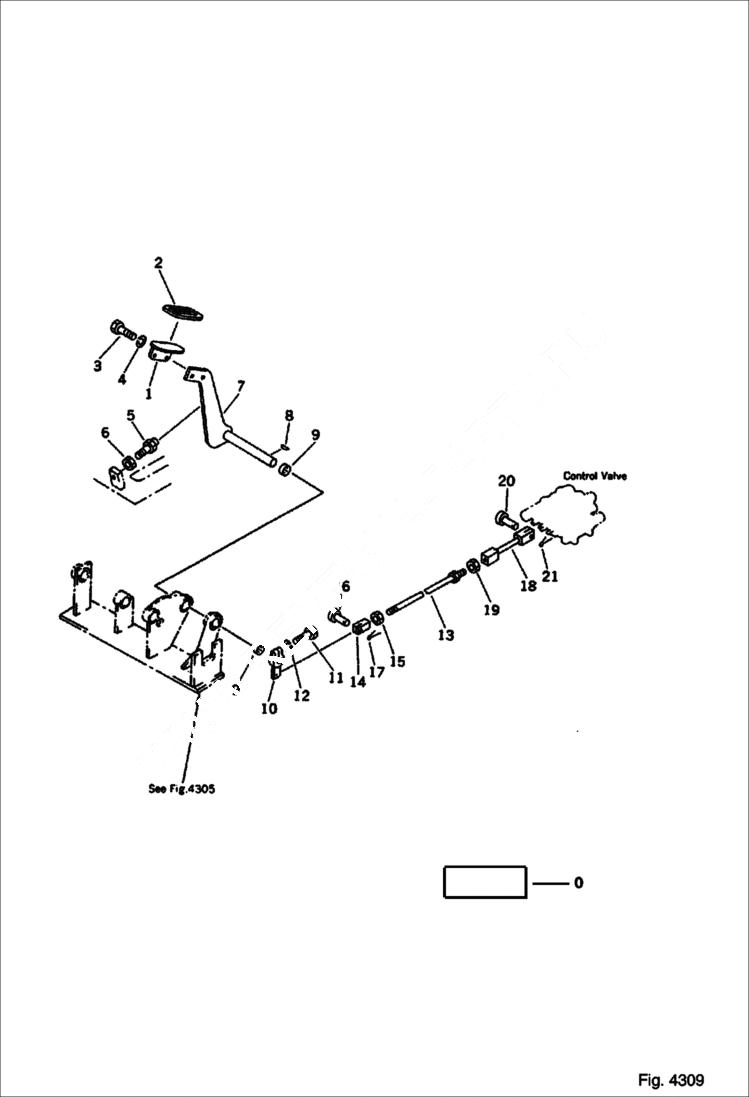

Запчасти Bobcat 100 TRAVEL SPEED PEDAL (FOR I.S.O. PATTERN) CONTROL SYSTEM AND REVOLVING FRAME

0

ARM GROUP Was 20S-43-X1400

1

6641018

PEDAL

2

6637901

CAP

3

6636957

BOLT

4

6637134

WASHER

5

6637743

BUMPER

6

6637109

NUT

7

6642913

LEVER

8

6637173

KEY

9

6637894

BEARING

10

6642914

LEVER

11

6636960

BOLT

12

6637134

WASHER

13

ROD Was 04248-31032

14

6638691

YOKE L.H. thread

15

NUT, L.H. THREAD Was 01508-41006

16

6637255

PIN

17

6637196

PIN, COTT

18

6638710

ROD

19

6637113

NUT

20

6637248

PIN

21

6637193

PIN
