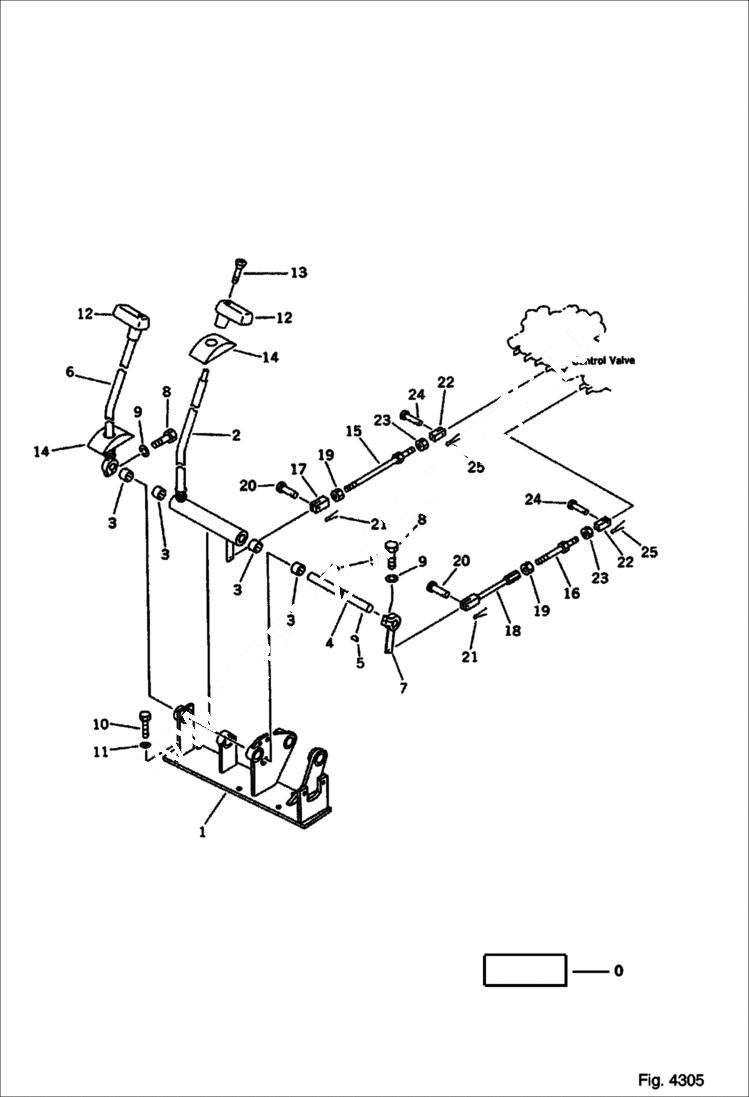

Запчасти Bobcat 100 TRAVEL CONTROL LEVER (1/2) (FOR I.O.S. PATTERN) CONTROL SYSTEM AND REVOLVING FRAME

0

ARM GROUP Was 20S-43-X1400

1

BRACKET Was 20S-43-33410

2

LEVER, L.H. Was 20S-43-31420

3

6637894

BEARING

4

SHAFT Was 20S-43-31430

5

6637173

KEY

6

LEVER, R.H. Was 20S-43-31610

7

LEVER Was 20S-43-31441

8

6636960

BOLT

9

6637134

WASHER

10

6636967

BOLT

11

6637157

WASHER

12

6639172

KNOB

13

6637047

SCREW

14

6638686

COVER

15

6637298

ROD

16

6645552

ROD

17

6638691

YOKE L.H. thread

18

6642918

ROD

19

NUT, L.H. THREAD Was 01508-41006

20

6637255

PIN

21

6637196

PIN, COTT

22

6638709

YOKE

23

6637113

NUT

24

6637248

PIN

25

6637193

PIN
