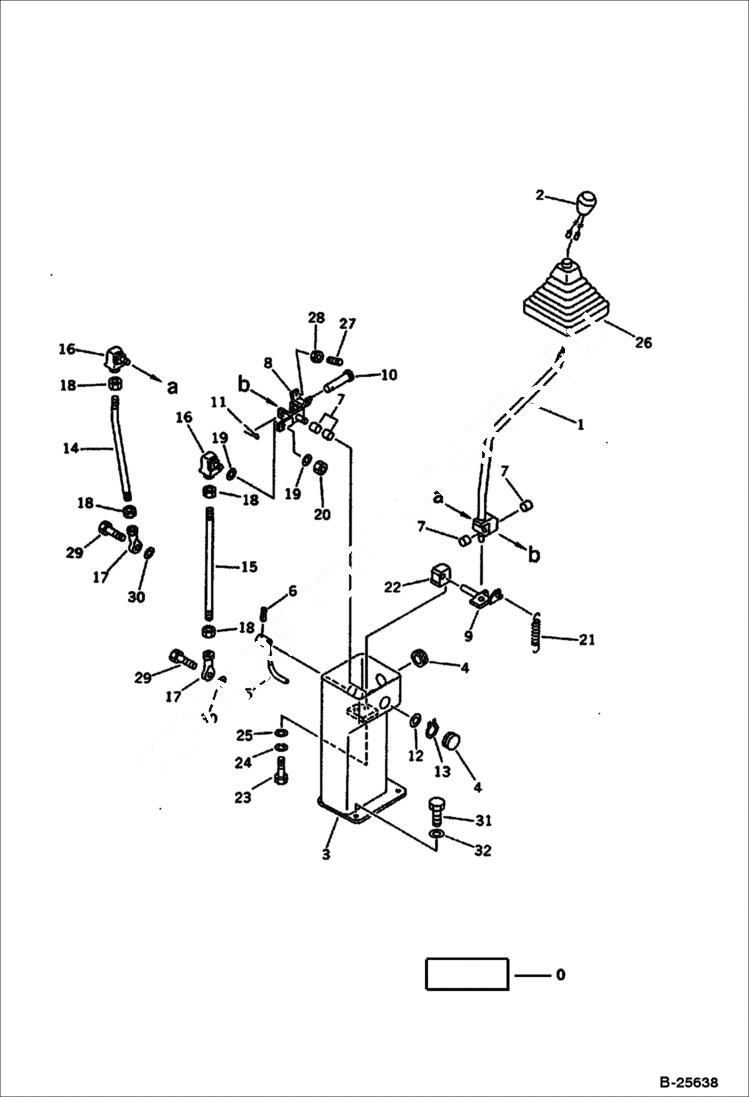

Запчасти Bobcat 100 WORK EQUIPMENT CONTROL LEVER (2/2) (FOR I.S.O. PATTERN) CONTROL SYSTEM AND REVOLVING FRAME

0

STAND GROUP, R.H. Was 20S-43-X1200

1

LEVER, R.H. Was 20S-43-31240

2

SWITCH, HORN Was 20S-06-42130

3

STAND Was 20S-43-33120

4

6637758

CAP

5

6639285

LEVER

6

6637188

PIN, ROLL

7

6639170

BUSHING

8

YOKE Was 20S-43-31281

9

6638739

LEVER R.H.

10

6637262

PIN

11

6637203

PIN, COTT

12

6637148

WASHER

13

6637217

SNAP RING

14

6642817

ROD

15

6637285

ROD

16

6639406

CONNECTOR

17

6637307

END rod

18

6637113

NUT

19

6637157

WASHER

20

6637113

NUT

21

6637849

SPRING

22

6638741

BLOCK

23

6636959

BOLT

24

6637134

WASHER

25

6637156

WASHER

26

6639733

BOOT

27

SCREW Was 01320-40620

28

6637106

NUT

29

6636969

BOLT

30

6637157

WASHER

31

6636980

BOLT

32

6637158

WASHER
