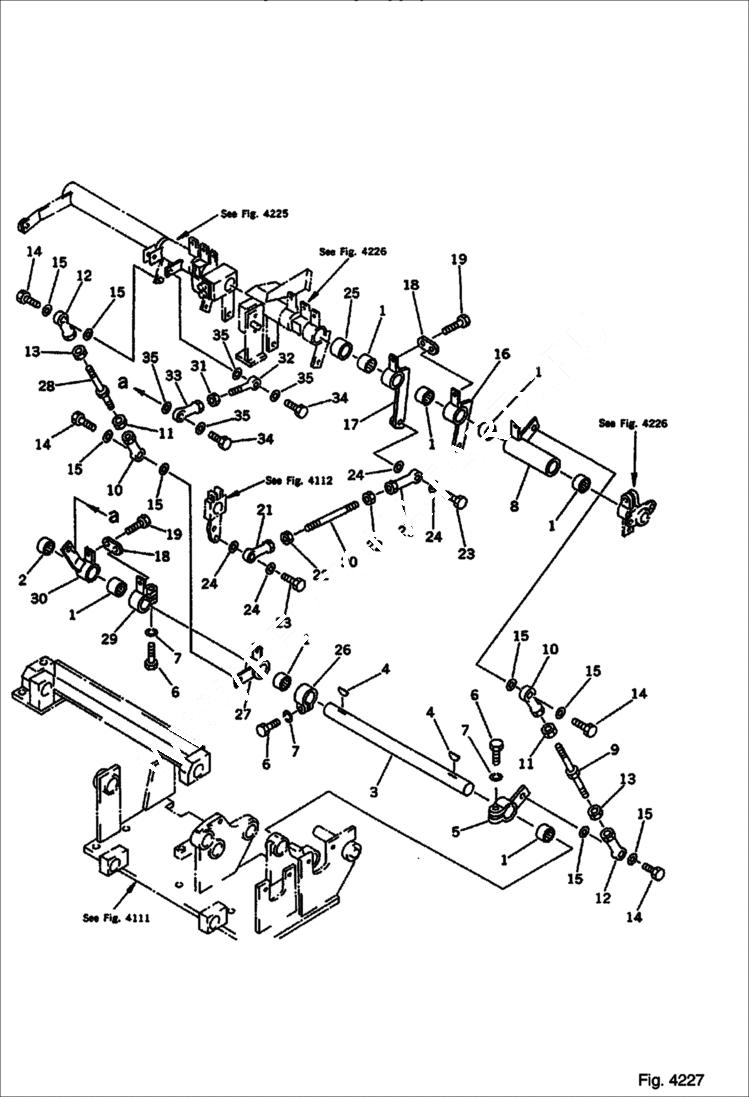

Запчасти Bobcat 100 ARM CONTROL LINKAGE (6 WAY SHIFT PATTERN SPEC.) Komatsu S/N 13025 & Abv. CONTROL SYSTEM AND REVOLVING FRAME

1

6637894

BEARING Komatsu S/N 13025 & Abv.

2

BEARING Komatsu S/N 13025 & Abv. - Was 195-43-43190

3

SHAFT Komatsu S/N 13025 & Abv. - Was 20T-43-48561

4

6637173

KEY Komatsu S/N 13025 & Abv.

5

LEVER Komatsu S/N 13025 & Abv. - Was 20T-43-48551

6

6636960

BOLT Komatsu S/N 13025 & Abv.

7

6637134

WASHER Komatsu S/N 13025 & Abv.

8

LEVER Komatsu S/N 13025 & Abv. - Was 20T-43-48451

9

6645551

ROD Komatsu S/N 13025 & Abv.

10

6637312

ROD END L.H. thread - Komatsu S/N 13025 & Abv.

11

NUT, L.H. THREAD Komatsu S/N 13025 & Abv. - Was 01508-41006

12

6637310

ROD END Komatsu S/N 13025 & Abv.

13

6637113

NUT Komatsu S/N 13025 & Abv.

14

6636968

BOLT Komatsu S/N 13025 & Abv.

15

6637157

WASHER Komatsu S/N 13025 & Abv.

16

LEVER Komatsu S/N 13025 & Abv. - Was 20T-43-48442

17

LEVER Komatsu S/N 13025 & Abv. - Was 20T-43-48431

18

6642537

PLATE Komatsu S/N 13025 & Abv.

19

6636958

BOLT Komatsu S/N 13025 & Abv.

20

ROD Komatsu S/N 13025 & Abv. - Was 04245-41006

21

6637310

ROD END Komatsu S/N 13025 & Abv.

22

6637113

NUT Komatsu S/N 13025 & Abv.

23

6636968

BOLT Komatsu S/N 13025 & Abv.

24

6637157

WASHER Komatsu S/N 13025 & Abv.

25

BOSS Komatsu S/N 13025 & Abv. - Was 114-B90-1330

26

BOSS Komatsu S/N 13025 & Abv. - Was 04241-02020

27

LEVER Komatsu S/N 13025 & Abv. - Was 20T-43-48532

28

6645551

ROD Komatsu S/N 13025 & Abv.

29

LEVER Komatsu S/N 13025 & Abv. - Was 20T-43-48522

30

LEVER Komatsu S/N 13025 & Abv. - Was 20T-43-48512

31

6637113

NUT Komatsu S/N 13025 & Abv.

32

6637314

END rod - Komatsu S/N 13025 & Abv.

33

6637310

ROD END Komatsu S/N 13025 & Abv.

34

6636968

BOLT Komatsu S/N 13025 & Abv.

35

6637157

WASHER Komatsu S/N 13025 & Abv.
