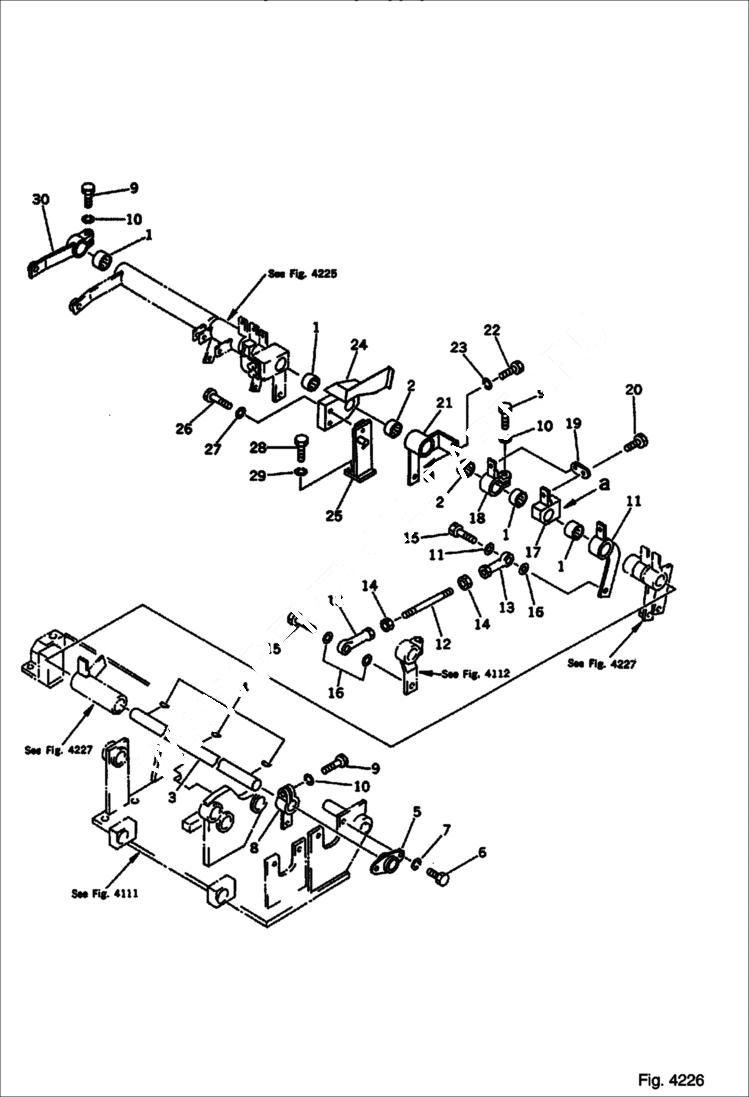

Запчасти Bobcat 100 BUCKET CONTROL LINKAGE (6 WAY SHIFT PATTERN SPEC.) Komatsu S/N 13025 & Abv. CONTROL SYSTEM AND REVOLVING FRAME
№
Артикул
Название
Примечание
Количество
1
6637894
BEARING Komatsu S/N 13025 & Abv.
2
BEARING Komatsu S/N 13025 & Abv. - Was 195-43-43190
3
SHAFT Komatsu S/N 13025 & Abv. - Was 20T-43-48321
4
6637173
KEY Komatsu S/N 13025 & Abv.
5
6642915
BEARING Komatsu S/N 13025 & Abv.
6
6636958
BOLT Komatsu S/N 13025 & Abv.
7
6637134
WASHER Komatsu S/N 13025 & Abv.
8
LEVER Komatsu S/N 13025 & Abv. - Was 20T-43-48491
9
6636960
BOLT Komatsu S/N 13025 & Abv.
10
WASHER Komatsu S/N 13025 & Abv. - Was 01602-50825
11
LEVER Komatsu S/N 13025 & Abv. - Was 20T-43-48411
12
ROD Komatsu S/N 13025 & Abv. - Was 04245-41006
13
6637310
ROD END Komatsu S/N 13025 & Abv.
14
6637113
NUT Komatsu S/N 13025 & Abv.
15
6636968
BOLT Komatsu S/N 13025 & Abv.
16
6637157
WASHER Komatsu S/N 13025 & Abv.
17
LEVER Komatsu S/N 13025 & Abv. - Was 20T-43-48392
18
LEVER Komatsu S/N 13025 & Abv. - Was 20U-43-14440
19
6642537
PLATE Komatsu S/N 13025 & Abv.
20
6636958
BOLT Komatsu S/N 13025 & Abv.
21
LEVER Komatsu S/N 13025 & Abv. - Was 20T-43-48371
22
6636958
BOLT Komatsu S/N 13025 & Abv.
23
6637134
WASHER Komatsu S/N 13025 & Abv.
24
BRACKET Komatsu S/N 13025 & Abv. - Was 20T-43-48651
25
BRACKET Komatsu S/N 13025 & Abv. - Was 20T-43-48661
26
6636961
BOLT Komatsu S/N 13025 & Abv.
27
6637134
WASHER Komatsu S/N 13025 & Abv.
28
6636967
BOLT Komatsu S/N 13025 & Abv.
29
6637135
WASHER Komatsu S/N 13025 & Abv.
30
LEVER Komatsu S/N 13025 & Abv. - Was 20T-43-48920
Выбрано товаров: 30
