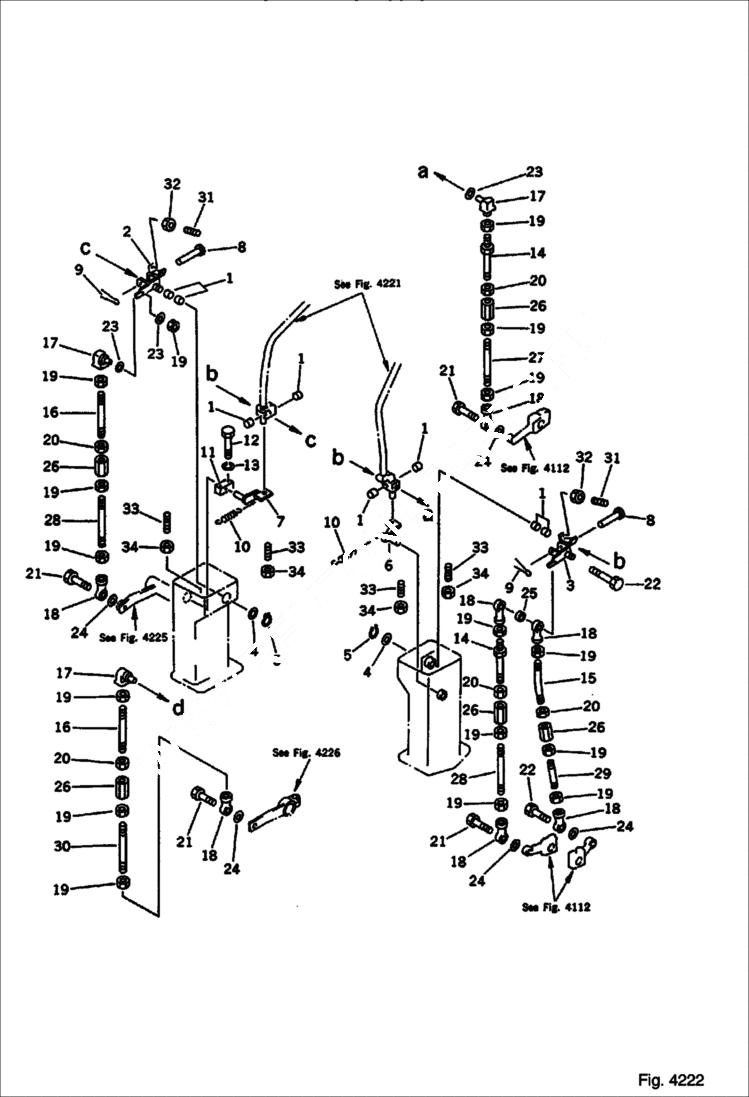

Запчасти Bobcat 100 WORK EQUIPMENT CONTROL LEVER (2/2) (6 WAY SHIFT PATTERN SPEC.) Komatsu S/N 13025 & Abv. CONTROL SYSTEM AND REVOLVING FRAME

1

BEARING Komatsu S/N 13025 & Abv. - Was 363-43-27250

2

YOKE Komatsu S/N 13025 & Abv. - Was 20U-43-14951

3

YOKE Komatsu S/N 13025 & Abv. - Was 20U-43-14941

4

6637148

WASHER Komatsu S/N 13025 & Abv.

5

6637217

SNAP RING Komatsu S/N 13025 & Abv.

6

LEVER Komatsu S/N 13025 & Abv. - Was 20S-43-31160

7

6638706

LEVER Komatsu S/N 13025 & Abv.

8

PIN Komatsu S/N 13025 & Abv. - Was 20T-43-48180

9

6637203

PIN, COTT Komatsu S/N 13025 & Abv.

10

6639169

SPRING Komatsu S/N 13025 & Abv.

11

6638707

BLOCK Komatsu S/N 13025 & Abv.

12

6636962

BOLT Komatsu S/N 13025 & Abv.

13

6637134

WASHER Komatsu S/N 13025 & Abv.

14

ROD Komatsu S/N 13025 & Abv. - Was 20S-43-31370

15

ROD Komatsu S/N 13025 & Abv. - Was 20U-43-14960

16

ROD Komatsu S/N 13025 & Abv. - Was 20S-43-31370

17

6639406

CONNECTOR Komatsu S/N 13025 & Abv.

18

6637307

END Komatsu S/N 13025 & Abv.

19

6637113

NUT Komatsu S/N 13025 & Abv.

20

NUT, L.H. THREAD Komatsu S/N 13025 & Abv. - Was 01508-41006

21

6636969

BOLT Komatsu S/N 13025 & Abv.

22

6636974

BOLT Komatsu S/N 13025 & Abv.

23

WASHER Komatsu S/N 13025 & Abv. - Was 01643-21016

24

6637157

WASHER Komatsu S/N 13025 & Abv.

25

COLLAR Komatsu S/N 13025 & Abv. - Was 20S-43-31150

26

BUCKLE, TURN Komatsu S/N 13025 & Abv. - Was 20S-43-31270

27

6637280

ROD Komatsu S/N 13025 & Abv.

28

6637278

ROD Komatsu S/N 13025 & Abv.

29

6637279

ROD Komatsu S/N 13025 & Abv.

30

6637277

ROD Komatsu S/N 13025 & Abv.

31

SCREW Komatsu S/N 13025 & Abv. - Was 01310-20620

32

6637106

NUT Komatsu S/N 13025 & Abv.

33

SCREW Komatsu S/N 13025 & Abv. - Was 01310-20825

34

6637107

NUT Komatsu S/N 13025 & Abv.
