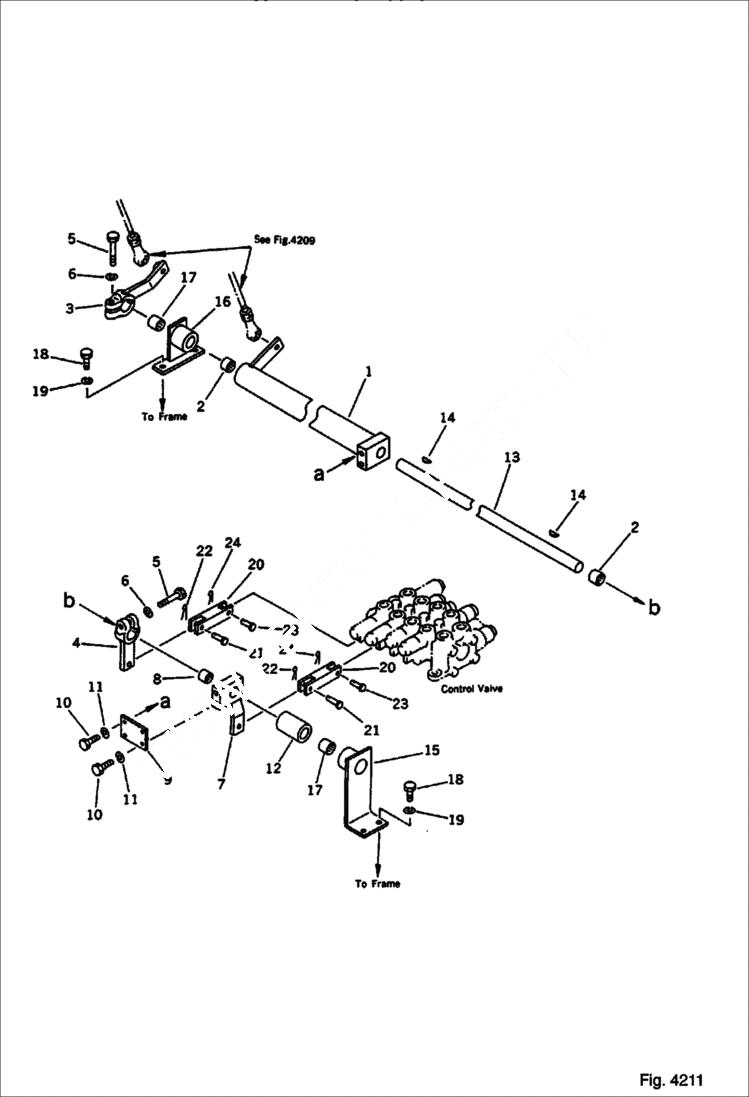

Запчасти Bobcat 100 BLADE CONTROL LEVER AND LINKAGE (2/2) (FOR POWER TILT MECH. ANGLE DOZER) Komatsu S/N 13025 & Abv. CONTROL SYSTEM AND REVOLVING FRAME

1

LEVER Komatsu S/N 13025 & Abv. - Was 20T-910-4210

2

6637894

BEARING Komatsu S/N 13025 & Abv.

3

LEVER Komatsu S/N 13025 & Abv. - Was 20T-910-4220

4

6638702

LEVER Komatsu S/N 13025 & Abv.

5

6636960

BOLT Komatsu S/N 13025 & Abv.

6

6637134

WASHER Komatsu S/N 13025 & Abv.

7

LEVER Komatsu S/N 13025 & Abv. - Was 20T-910-4190

8

BEARING Komatsu S/N 13025 & Abv. - Was 195-43-43190

9

PLATE Komatsu S/N 13025 & Abv. - Was 20U-43-14490

10

6636958

BOLT Komatsu S/N 13025 & Abv.

11

6637134

WASHER Komatsu S/N 13025 & Abv.

12

BUSHING Komatsu S/N 13025 & Abv. - Was 581-01-13261

13

SHAFT Komatsu S/N 13025 & Abv. - Was 20T-910-4230

14

6637173

KEY Komatsu S/N 13025 & Abv.

15

BRACKET Komatsu S/N 13025 & Abv. - Was 20T-910-4240

16

6646758

BRACKET Komatsu S/N 13025 & Abv.

17

6637894

BEARING Komatsu S/N 13025 & Abv.

18

6636967

BOLT Komatsu S/N 13025 & Abv.

19

6637135

WASHER Komatsu S/N 13025 & Abv.

20

6638724

YOKE Komatsu S/N 13025 & Abv.

21

6637255

PIN Komatsu S/N 13025 & Abv.

22

6637196

PIN, COTT Komatsu S/N 13025 & Abv.

23

6637248

PIN Komatsu S/N 13025 & Abv.

24

6637193

PIN Komatsu S/N 13025 & Abv.
