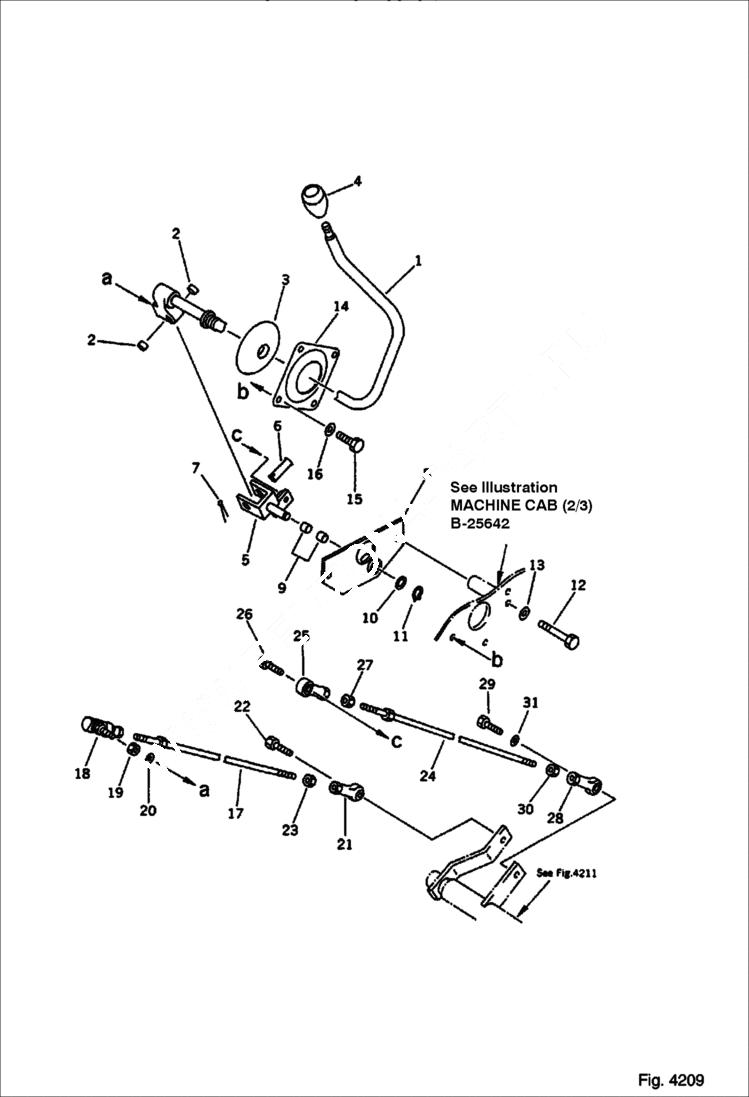

Запчасти Bobcat 100 BLADE CONTROL LEVER AND LINKAGE (1/2) (FOR POWER TILT MECH. ANGLE DOZER) Komatsu S/N 13025 & Abv. CONTROL SYSTEM AND REVOLVING FRAME

1

LEVER Komatsu S/N 13025 & Abv. - Was 20T-910-4170

1

6637744

SPRING Komatsu S/N 13025 & Abv.

2

BEARING Komatsu S/N 13025 & Abv. - Was 363-43-27250

3

COVER Komatsu S/N 13025 & Abv. - Was 142-43-15730

4

6649139

KNOB Komatsu S/N 13025 & Abv.

5

YOKE Komatsu S/N 13025 & Abv. - Was 20T-910-4250

6

PIN Komatsu S/N 13025 & Abv. - Was 20T-43-48180

7

6637203

PIN, COTT Komatsu S/N 13025 & Abv.

8

BRACKET Komatsu S/N 13025 & Abv. - Was 20T-910-4260

9

BEARING Komatsu S/N 13025 & Abv. - Was 363-43-27250

10

6637148

WASHER Komatsu S/N 13025 & Abv.

11

6637217

SNAP RING Komatsu S/N 13025 & Abv.

12

6636974

BOLT Komatsu S/N 13025 & Abv.

13

6637157

WASHER Komatsu S/N 13025 & Abv.

14

COVER Komatsu S/N 13025 & Abv. - Was 20T-910-4340

15

6636966

BOLT Komatsu S/N 13025 & Abv.

16

6637157

WASHER Komatsu S/N 13025 & Abv.

17

6637301

ROD Komatsu S/N 13025 & Abv.

18

6639406

CONNECTOR Komatsu S/N 13025 & Abv.

19

6637113

NUT Komatsu S/N 13025 & Abv.

20

6637157

WASHER Komatsu S/N 13025 & Abv.

21

6637308

ROD END L.H. thread - Komatsu S/N 13025 & Abv.

22

6636968

BOLT Komatsu S/N 13025 & Abv.

23

6637100

NUT L.H. thread - Komatsu S/N 13025 & Abv.

24

6637300

ROD Komatsu S/N 13025 & Abv.

25

6637307

END Komatsu S/N 13025 & Abv.

26

6636968

BOLT Komatsu S/N 13025 & Abv.

27

6637113

NUT Komatsu S/N 13025 & Abv.

28

6637308

ROD END L.H. thread - Komatsu S/N 13025 & Abv.

29

6636968

BOLT Komatsu S/N 13025 & Abv.

30

6637100

NUT L.H. thread - Komatsu S/N 13025 & Abv.

31

6637157

WASHER Komatsu S/N 13025 & Abv.
