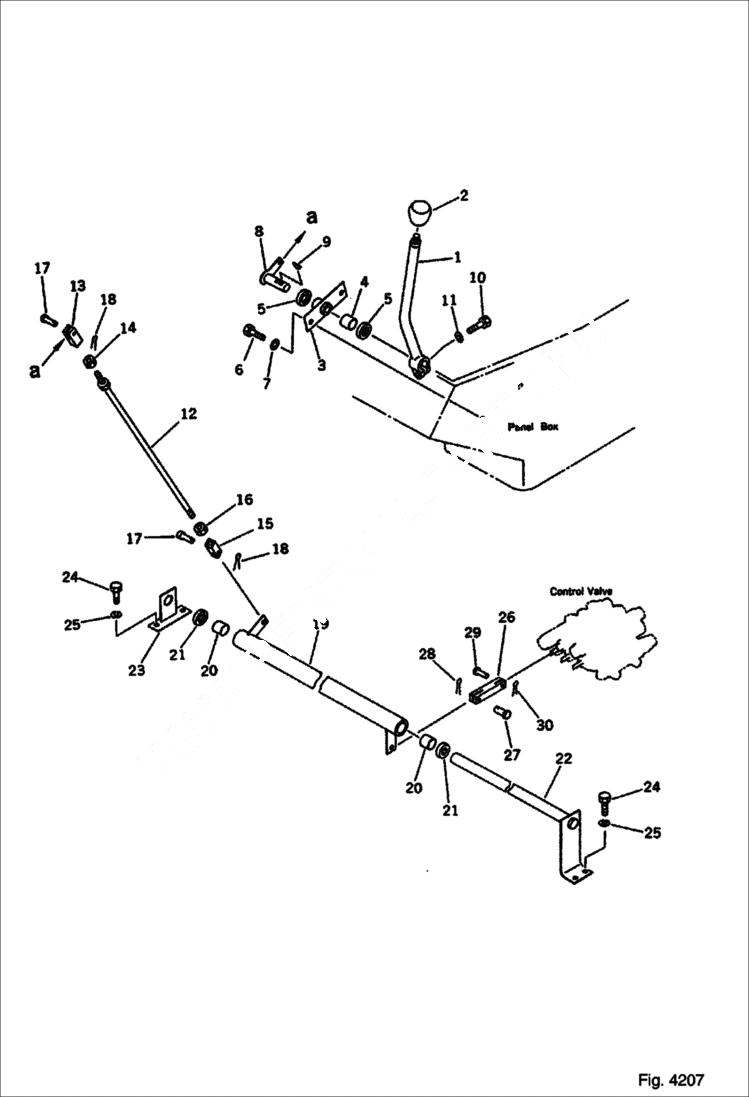

Запчасти Bobcat 100 BLADE CONTROL LEVER CONTROL SYSTEM AND REVOLVING FRAME

1

6638718

LEVER

2

KNOB Was 203-43-41910

3

6638720

BRACKET

4

6637746

BUSHING

5

6637332

SEAL, BEARING

6

6636974

BOLT

7

6637157

WASHER

8

6638719

LEVER

9

6637173

KEY

10

6636960

BOLT

11

6637134

WASHER

12

6637303

ROD

13

6639445

YOKE

14

6637113

NUT

15

6638691

YOKE L.H. thread

16

NUT, L.H. THREAD Was 01508-41006

17

6637255

PIN

18

6637196

PIN, COTT

19

6638721

LEVER

20

6637746

BUSHING

21

6637332

SEAL, BEARING

22

6638722

SHAFT

23

6642919

BRACKET

24

6636967

BOLT

25

6637135

WASHER

26

6638724

YOKE

27

6637255

PIN

28

6637196

PIN, COTT

29

6637248

PIN

30

6637193

PIN
