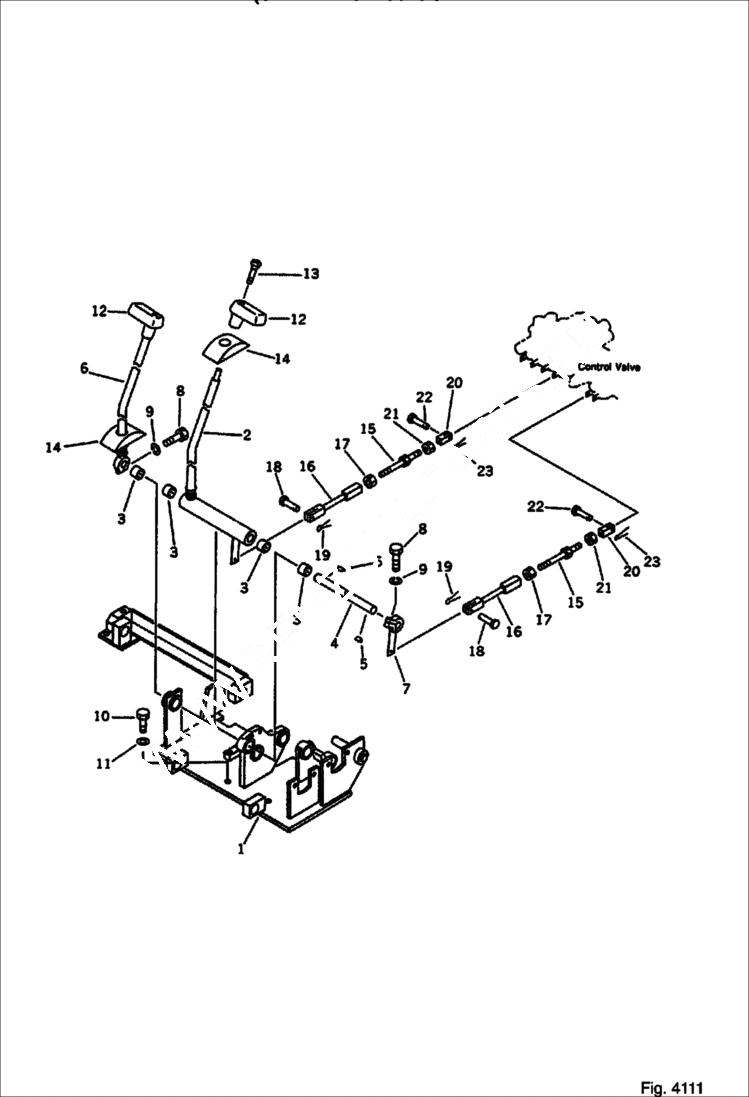

Запчасти Bobcat 100 TRAVEL CONTROL LEVER (1/2) (6 WAY SHIFT PATTERN SPEC.) Komatsu S/N 13025 & Abv. CONTROL SYSTEM AND REVOLVING FRAME

1

BRACKET Komatsu S/N 13025 & Abv. - Was 20T-43-48311

2

LEVER, L.H. Komatsu S/N 13025 & Abv. - Was 20S-43-31421

3

6637894

BEARING Komatsu S/N 13025 & Abv.

4

SHAFT Komatsu S/N 13025 & Abv. - Was 20S-43-31430

5

6637173

KEY Komatsu S/N 13025 & Abv.

6

LEVER, R.H. Komatsu S/N 13025 & Abv. - Was 20S-43-31610

7

LEVER Komatsu S/N 13025 & Abv. - Was 20S-43-31441

8

6636960

BOLT Komatsu S/N 13025 & Abv.

9

6637134

WASHER Komatsu S/N 13025 & Abv.

10

6636967

BOLT Komatsu S/N 13025 & Abv.

11

6637157

WASHER Komatsu S/N 13025 & Abv.

12

6639172

KNOB Komatsu S/N 13025 & Abv.

13

6637047

SCREW Komatsu S/N 13025 & Abv.

14

6638686

COVER Komatsu S/N 13025 & Abv.

15

ROD Komatsu S/N 13025 & Abv. - Was 20S-43-25270

16

ROD Komatsu S/N 13025 & Abv. - Was 20T-43-42510

17

NUT, L.H. THREAD Komatsu S/N 13025 & Abv. - Was 01508-41006

18

PIN Komatsu S/N 13025 & Abv. - Was 20T-43-48610

19

6637196

PIN, COTT Komatsu S/N 13025 & Abv.

20

6638709

YOKE Komatsu S/N 13025 & Abv.

21

6637113

NUT Komatsu S/N 13025 & Abv. -

22

PIN Komatsu S/N 13025 & Abv. - Was 20T-43-48620

23

6637193

PIN Komatsu S/N 13025 & Abv.
