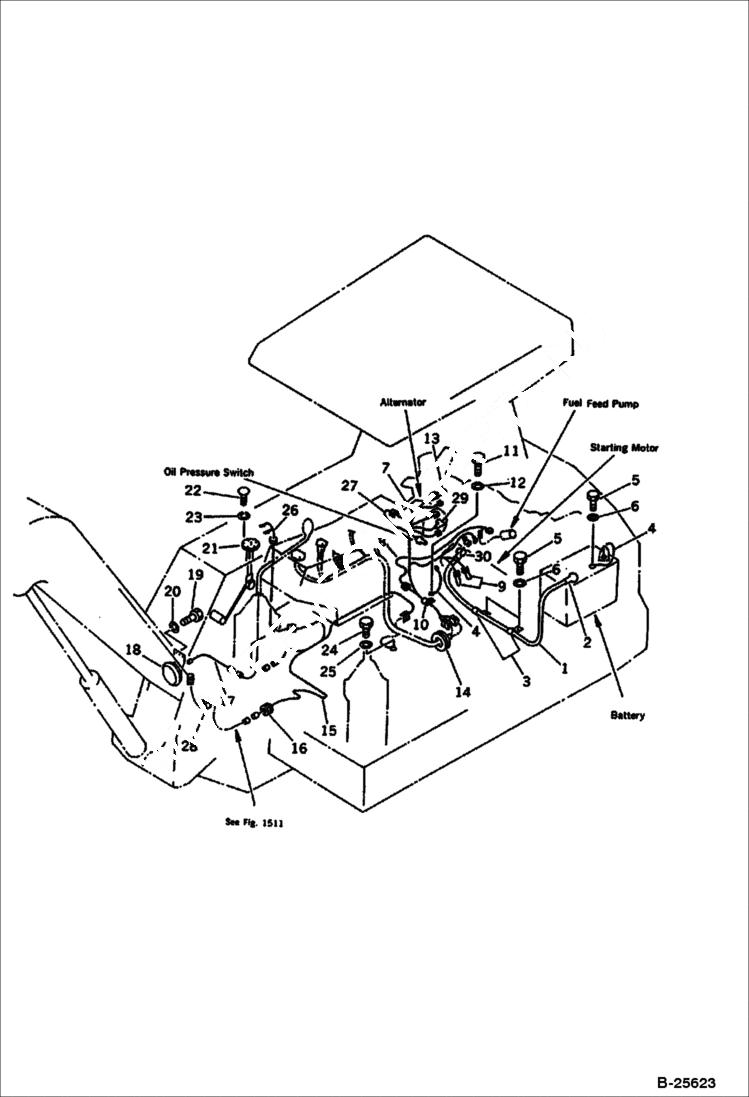

Запчасти Bobcat 100 ELECTRICAL SYSTEM ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

WIRE ASSY Komatsu S/N 13025 & Abv. - Was 20T-06-41191

1

WIRE ASSY Komatsu S/N 10001-13024 - Was 20S-06-31430

2

6638628

COVER

3

6637690

CLIP

4

6638545

WIRE

5

6636965

BOLT

6

6637150

WASHER

7

WIRE Komatsu S/N 12499 & Abv. - Was 20S-06-31521

7

6658749

WIRE ASY Komatsu S/N 10001-12498

8

WIRE ASSY Komatsu S/N 13025 & Abv. - Was 20S-06-31392

8

6658750

WIRE Komatsu S/N 10001-13024

9

LINK, FUSIBLE Komatsu S/N 13025 & Abv. - Was 20S-06-57241

10

6637688

CLIP

11

6636965

BOLT

12

6637150

WASHER

13

6637895

SENSOR water temp.

14

6637706

GROMMET

15

WIRE ASSY Was 20S-06-31440

16

6637700

GROMMET

17

WIRE Was 20S-06-31450

18

6637726

HORN

19

6636957

BOLT

20

6637134

WASHER

21

6638992

FLOAT

22

6637025

SCREW

23

6637132

WASHER

24

6636965

BOLT

25

6637150

WASHER

26

6638999

WIRE

27

6638627

WIRE

28

CLIP Was 08036-00614

29

6637708

CAP

30

6637709

CAP Komatsu S/N 10001-13024
