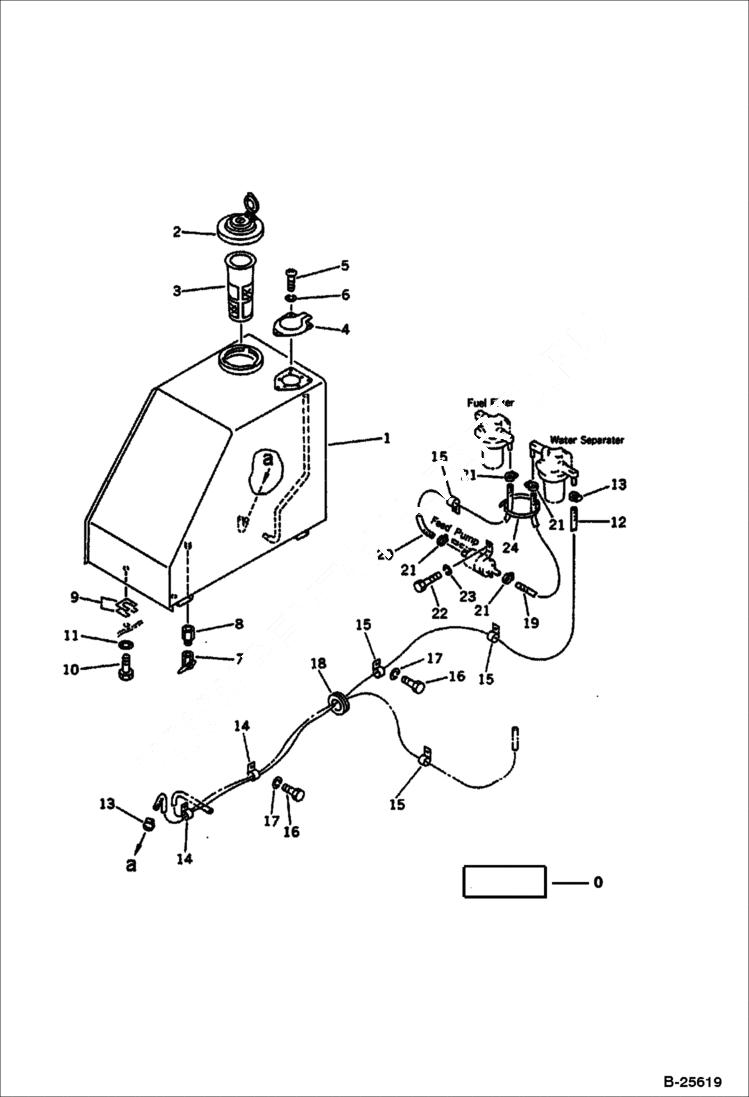

Запчасти Bobcat 100 FUEL TANK AND PIPING ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

0

FUEL TANK GROUP Was 20S-04-X1000

1

6658248

FUEL TANK Komatsu S/N 13025 & Abv.

1

TANK Komatsu S/N 10001-13024 - Was 20S-04-31110

2

6649371

CAP

3

6649133

STRAINER

4

COVER Was 20S-04-31120

5

6636957

BOLT

6

6637134

WASHER

7

6637650

VALVE

8

6637848

NIPPLE

9

6638543

SHIM 1.0mm

10

6636980

BOLT

11

6637139

WASHER

12

6638622

HOSE

13

6637620

CLAMP

14

CLIP Komatsu S/N 13025 & Abv. - Was 195-01-14450

14

6637690

CLIP Komatsu S/N 10001-13024

15

6637688

CLIP

16

6636965

BOLT

17

6637135

WASHER

18

6637703

GROMMET

19

HOSE Komatsu S/N 11833 & Abv. - Was 07288-00703

19

6654088

HOSE Komatsu S/N 10001-11832

20

HOSE Komatsu S/N 11833 & Abv. - Was 07288-00705

20

6654089

HOSE Komatsu S/N 10001-11832

21

6637620

CLAMP

22

6636954

BOLT

23

6637133

WASHER

24

6637681

BAND
