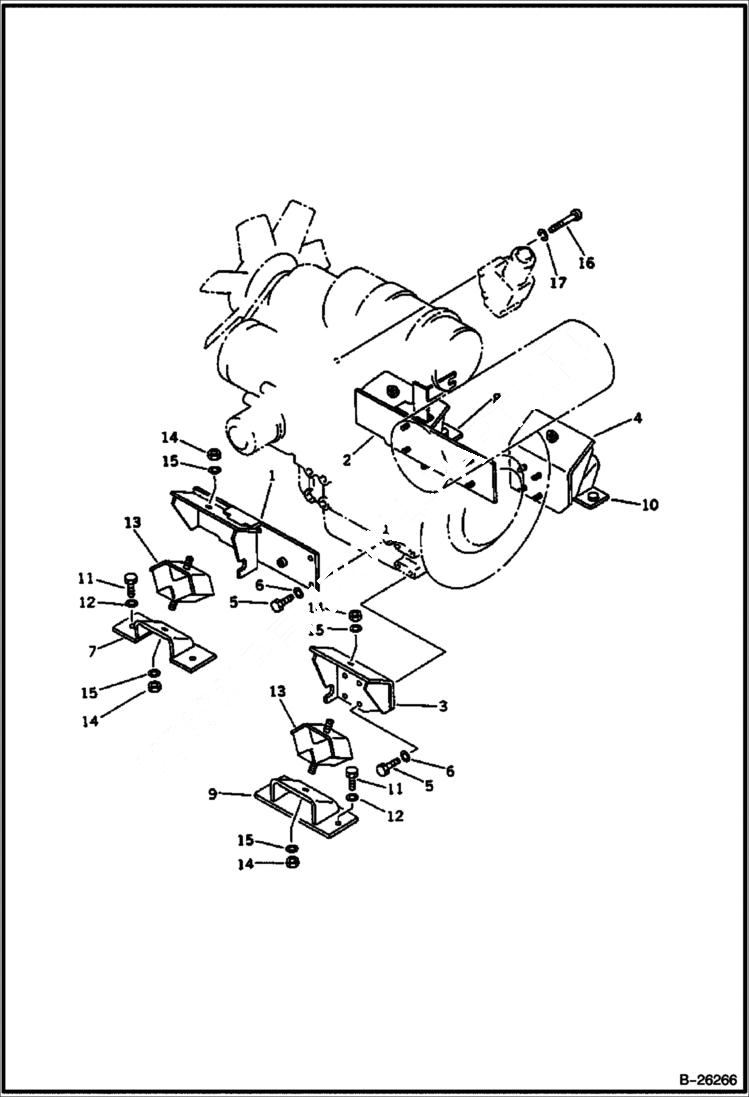

Запчасти Bobcat 100 ENGINE MOUNTING PARTS ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

BRACKET, FRONT, L.H. Was 20S-01-31510

2

BRACKET, FRONT, R.H. Was 20S-01-31521

3

BRACKET, REAR, L.H. Was 20S-01-31530

4

BRACKET, REAR, R.H. Was 20S-01-31540

5

6636979

BOLT

6

6637158

WASHER

7

BRACKET, FRONT Was 20S-01-31550

8

BRACKET, FRONT, R.H. Was 20S-01-31580

8

BRACKET, FRONT, R.H. Was 20S-01-31550

9

BRACKET, REAR, L.H. Was 20S-01-31560

10

BRACKET, REAR, R.H. Was 20S-01-31570

11

6636967

BOLT

12

6637157

WASHER

13

6638529

CUSHION

14

6637109

NUT

15

6637158

WASHER

16

6637033

SCREW

17

6637126

WASHER spring
