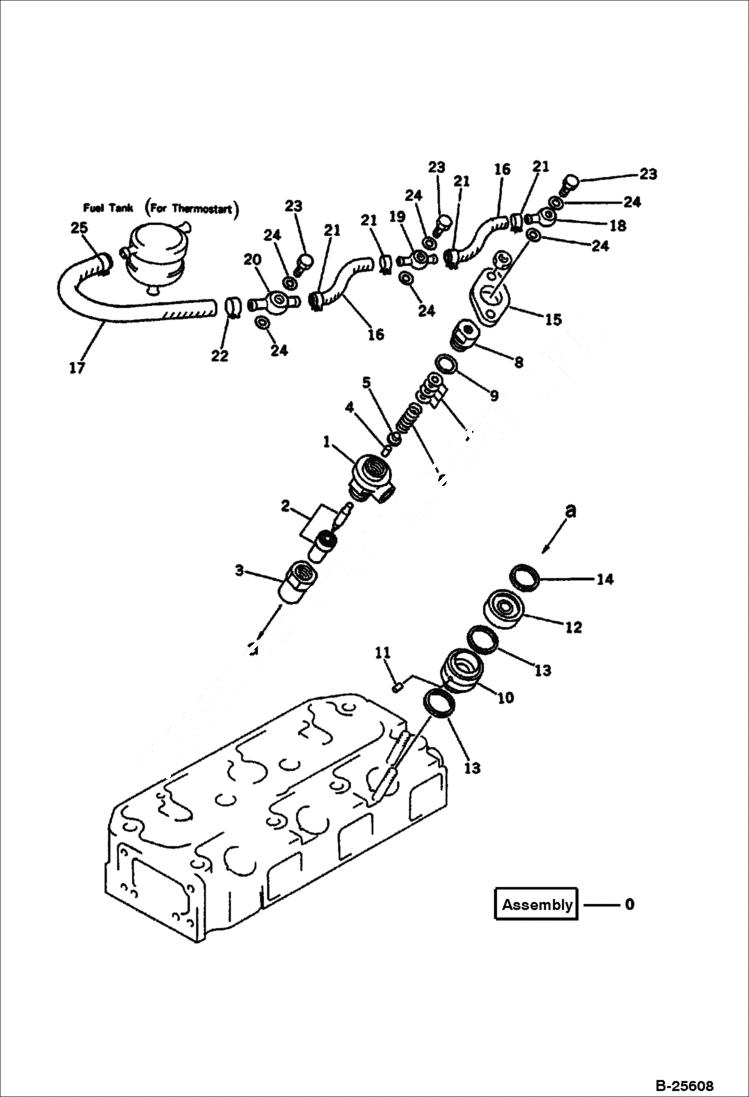

Запчасти Bobcat 100 FUEL NOZZLE AND SPILL HOSE FUEL SYSTEM

0

6640996

NOZZLE AS

1

6636316

BODY

2

6636623

NOZZLE

3

6641807

NUT

4

6636341

SPINDLE

5

6636342

SEAT

6

6636317

SPRING

7

6636339

SHIM ASSY

8

6636318

RETAINER

9

6636766

PACKING

10

6641886

CHAMBER front

11

6641803

PIN

12

6641918

CHAMBER rear

13

6640925

PACKING

14

6636313

INSULATOR

15

6636303

RETAINER

15

6636160

HOSE spill

16

6641925

HOSE

17

6640930

HOSE

18

6641865

JOINT

19

6636615

JOINT

20

6636573

CONNECTOR

21

6636590

CLIP

22

6636587

CLIP

23

6636304

BOLT

24

6636808

PACKING

25

6636587

CLIP
