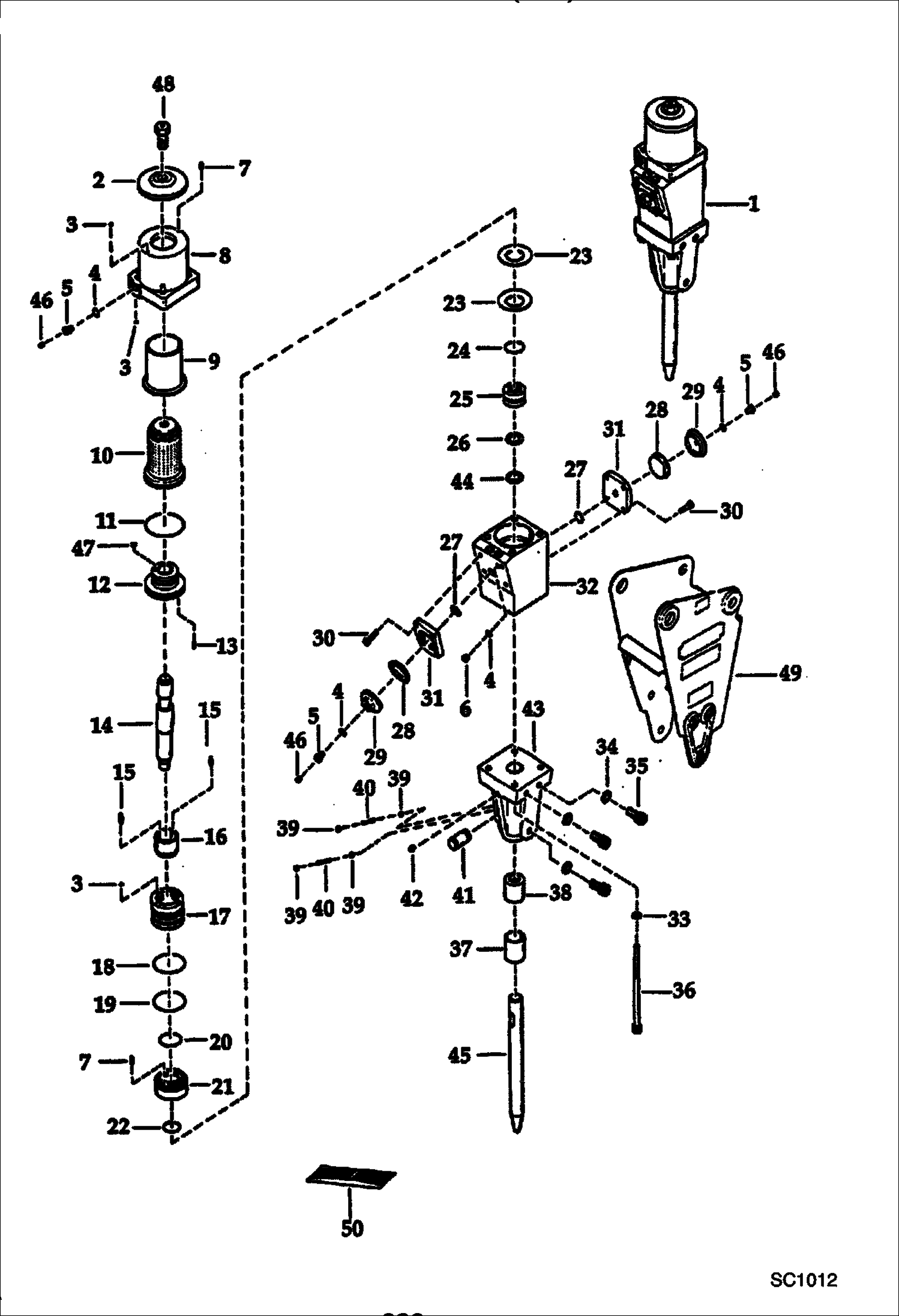

Запчасти Bobcat 100 HYDRAULIC BREAKER (2500) STANLEY KITS

1

6630514

BREAKER Ref. 2-48

2

PLATE NLA - Was 6630649 - A

3

6630641

O-RING

4

79K8

O RING 10

5

VALVE NLA - Charge (W/relief) - Was 6630633 - A

6

47K6

PLUG

7

209968

PIN

8

CHAMBER NLA - Was 6630648 - A

9

6630647

DIAPHRAGM

10

6630646

SCREEN Main

11

58K258

O RING 10

12

MANIFOLD NLA - assy - Was 6630645 - A

13

742953

ROLL PIN

14

6630644

HAMMER

15

6630643

PIN Push

16

NLA - Order Ref. 47

17

VALVE ASSY NSS - Cylinder (Order Ref. 47)

18

6630673

SEAL Poly-pac (1/8 x 5-1/4)

19

6630672

SEAL Poly-pac (1/8 x 5-1/4)

20

58K238

O-RING

21

VALVE NLA - seat - Was 6630639 - A

22

6630638

SEAL Poly-pac (W/ O-ring removed)

23

DISC NLA - Spring - Was 6630637 - A

24

58K235

O RING 10

25

6630636

BEARING Lower

26

6630634

SEAL Poly-pac

27

58K224

O RING 10

28

6630631

DIAPHRAGM Accumulator

29

6630632

PLUG Accumulator

30

73G1028

BOLT

31

6630630

SCREEN Accumulator

32

6630628

BODY Main

33

6631423

WASHER

34

WASHER NLA - Cone, Order (6) 6654810 & 6654811

35

BOLT NLA - Order 6654810 (6) & 6654811 (6)

36

6656345

BOLT

37

BEARING NLA - Was 6630621 - A

38

STOP NLA - Was 6630622 - D

39

6630623

SPRING Retainer pin

40

6630624

PIN Retainer

41

6630625

PIN Retainer

42

6630626

GREASE ZERK

43

6648906

BODY Lower (W/Ref. 37-42)

44

6630635

SEAL Poly-pac (W/ O-ring removed)

45

POINT SALES

46

6630682

PLUG

47

PLUG NLA - orifice - plug W/.20'' hole - Was 6633700 - A

48

BOLT NLA - Was 6630650 - A

49

6651206

FRAME

50

6660116

SEAL KIT Ref. 3, 4, 6, 11, 18-20, 22, 24, 26, 27 & 44 - Was 6630787 - A
