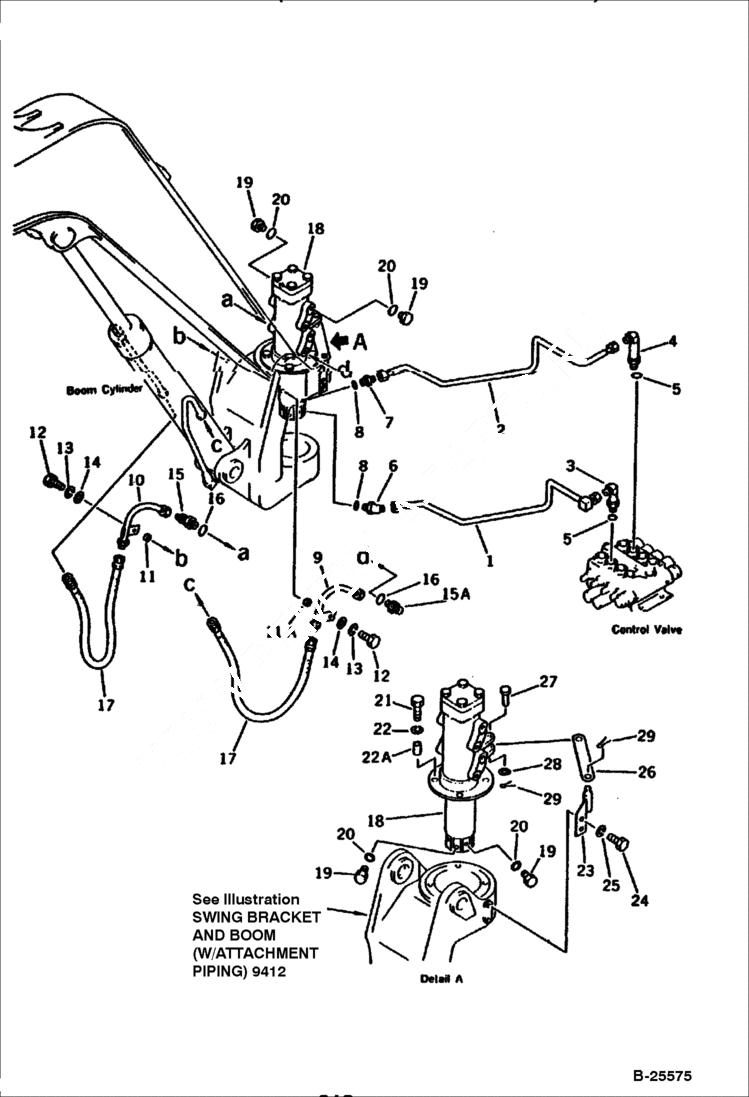

Запчасти Bobcat 100 HYDRAULIC PIPING (VALVE TO/FROM BOOM CYLINDER) WORK EQUIPMENT CONTROL SYSTEM

1

6638836

TUBE

2

6638837

TUBE

3

6638577

ELBOW

4

6638578

ELBOW

5

6637417

O-RING

6

6638838

ELBOW

7

6638840

UNION

8

6637415

O-RING

9

6638860

TUBE

10

6638861

TUBE

11

6638862

SHIM

11

6638863

SHIM

12

6636967

BOLT

13

6637135

WASHER

14

6642041

WASHER

15

6638581

ELBOW

15

6642859

ELBOW

16

6637415

O-RING

17

6638859

HOSE

18

6640270

CONNECTOR swivel joint assembly

19

6637436

PLUG

20

6637415

O-RING

21

6636971

BOLT

22

6637135

WASHER

22

6639407

BOSS

23

6638810

BRACKET

24

6636967

BOLT

25

6637135

WASHER

26

6638811

LINK

27

6639080

PIN

28

6637149

WASHER

29

6637204

PIN, COTT
