HYDRAULIC PIPING (PUMP TO VALVE)

Запчасти Bobcat 100 HYDRAULIC PIPING (PUMP TO VALVE) WORK EQUIPMENT CONTROL SYSTEM

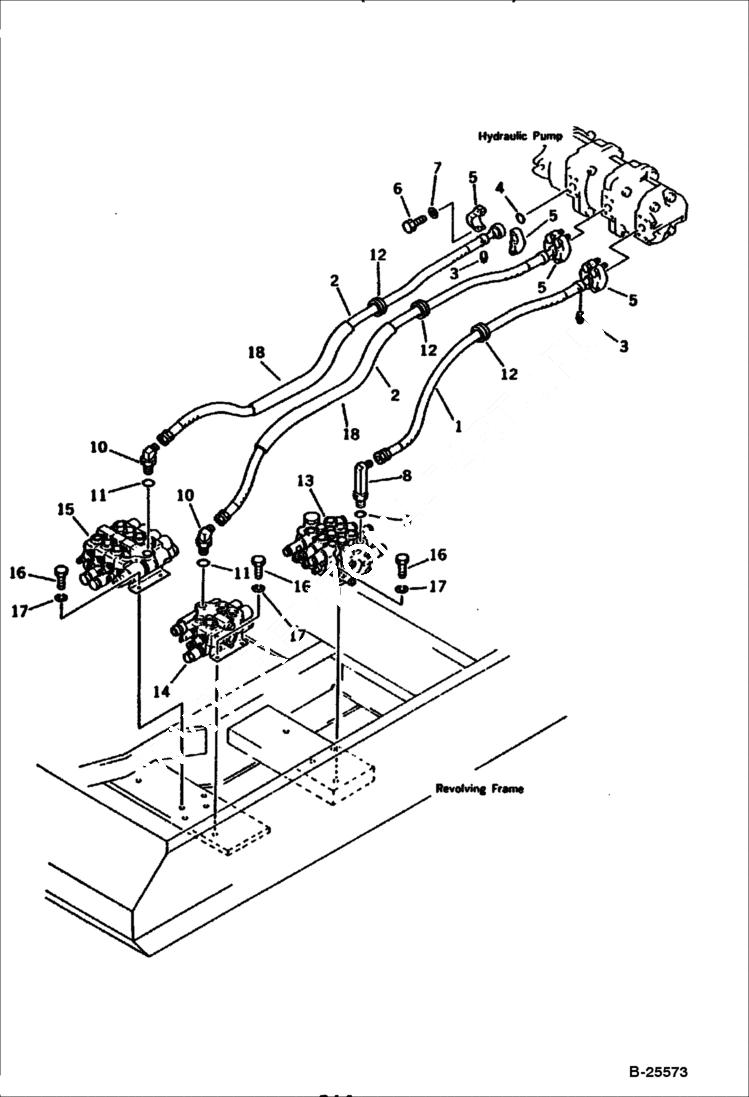

Схема запчастей Bobcat 100 - HYDRAULIC PIPING (PUMP TO VALVE) WORK EQUIPMENT CONTROL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6638821

HOSE

2

6638820

HOSE

3

6637441

PLUG

4

6637384

O-RING

5

6637648

FLANGE split

6

6636960

BOLT

7

WASHER, SPRING Was 01602-20805

8

6638587

ELBOW

9

6637417

O-RING

10

6638822

ELBOW

11

6637418

O-RING

12

6637703

GROMMET

13

6640588

VALVE ASSY

14

6640531

VALVE ASY

15

6640532

VALVE ASSY

16

6636959

BOLT

17

6637134

WASHER

18

6639218

COVER
