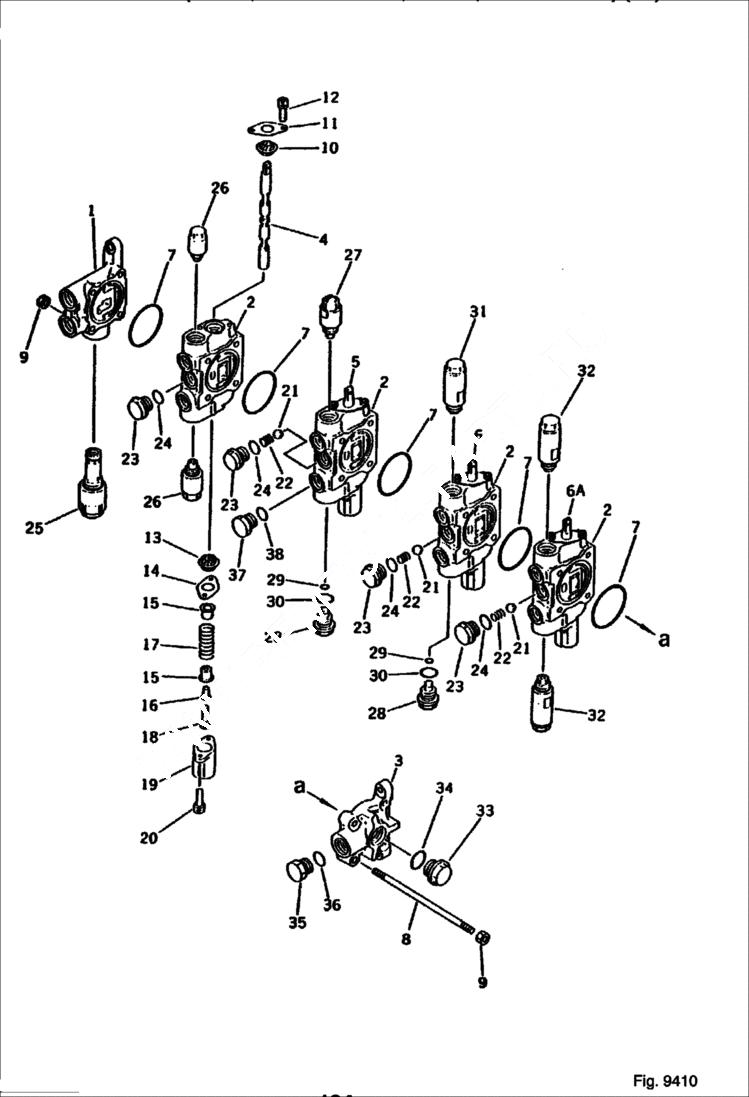

Запчасти Bobcat 100 4-SPOOL VALVE (1/2) (SWING, TRAVEL SPEED, BLADE, ATTACHMENT) WORK EQUIPMENT CONTROL SYSTEM

1

6640591

VALVE ASSY See Illustration 4-SPOOL VALVE (2/2)/ 9411

1

6643237

BLOCK

2

6640572

BLOCK

3

6643238

COVER

4

6641828

SPOOL swing

5

6641823

SPOOL travel speed

6

6640573

SPOOL blade

6

6640573

SPOOL att.

7

6637375

O-RING

8

6643196

STUD

9

6637107

NUT

10

6640575

SEAL

11

6640576

SHIELD

12

6637049

BOLT

13

6640575

SEAL

14

6640576

SHIELD

15

6640577

RETAINER

16

6640578

COLLAR

17

6640580

SPRING

18

6637051

BOLT

19

6640579

COVER

20

6637050

BOLT

21

6637318

BALL

22

6640583

SPRING

23

6640582

PLUG

24

6637415

O-RING

25

6640251

VALVE ASY main relief

26

6640551

VALVE ASY suction

27

6643234

VALVE ASSY safety

28

6640584

PLUG

29

6640585

O-RING

30

6637410

O-RING

31

6640558

VALVE ASY suction & safety

32

6640557

VALVE suction & safety

33

6640240

PLUG

34

6637411

O-RING

35

6637437

PLUG

36

6637410

O-RING

37

6637436

PLUG

38

6637415

O-RING
