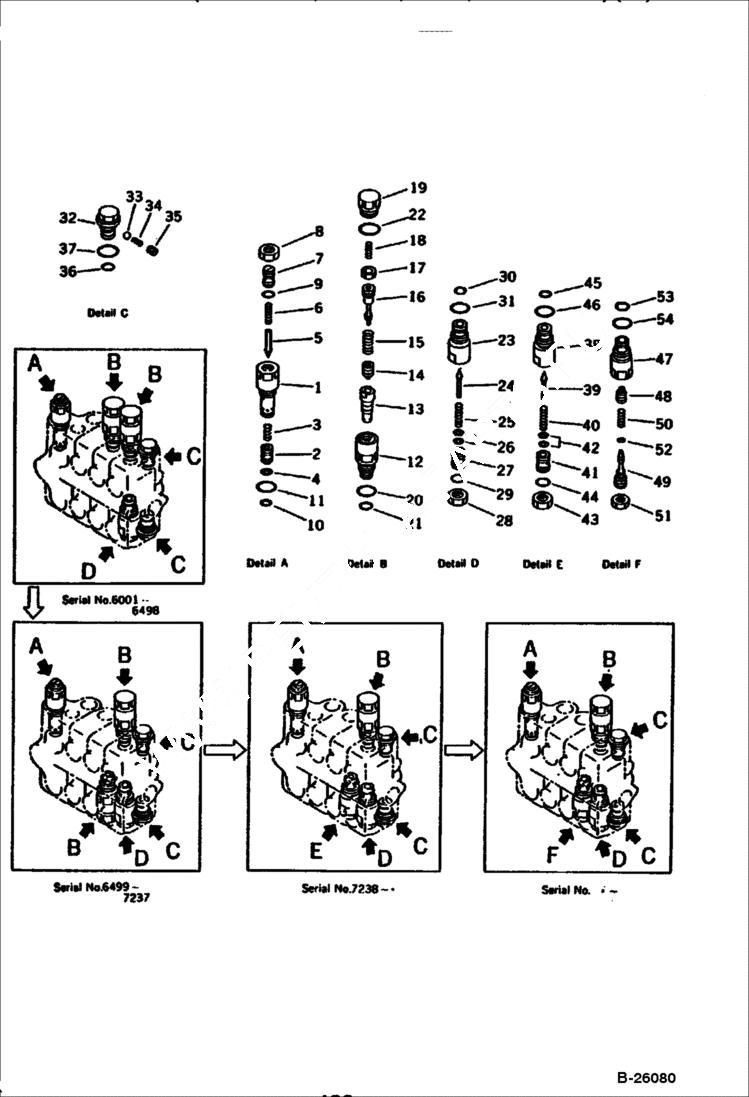

Запчасти Bobcat 100 4-SPOOL VALVE (2/2) (R.H. TRAVEL, BUCKET, BOOM, BOOM SWING) WORK EQUIPMENT CONTROL SYSTEM

1

6648821

VALVE ASY See Illustration 4-SPOOL VALVE (1/2)/ 6203

1

6640921

VALVE/ASY See Illustration 4-SPOOL VALVE (1/2)/ 6203 Komatsu S/N 7238-9060

1

VALVE ASSY See Illustration 4-SPOOL VALVE (1/2)/ 6203 Komatsu S/N 6499-7237 - Was 709-24-11602

1

6640532

VALVE ASSY See Illustration 4-SPOOL VALVE (1/2)/ 6203 Komatsu S/N 6001-6498

1

6640257

VALVE, RE main relief

1

6643192

SLEEVE

2

6643193

VALVE

3

6640220

SPRING

4

6640217

RING

5

6640258

POPPET

6

6640219

SPRING

7

6640218

SCREW

8

6637115

NUT

9

6637335

O-RING

10

6640243

O-RING

11

6637411

O-RING

12

6640224

VALVE ASY suction & safety - Komatsu S/N 6001-7237

12

6640224

VALVE ASY suction & safety - Komatsu S/N 7238-

12

6648808

SLEEVE

13

VALVE Was 700-20-62120

14

POPPET Was 700-20-62130

15

SPRING Was 700-20-66111

16

PISTON Was 700-20-62150

17

NUT Was 700-20-62160

18

6640221

SPRING

19

6648809

PLUG

20

6637411

O-RING

21

6637371

O-RING

22

6637418

O-RING

23

6640222

VALVE ASY safety

23

SLEEVE Was 700-20-63111

24

6640258

POPPET

25

SPRING Was 700-20-63121

26

SPACER Was 700-80-51240

27

SCREW Was 700-20-63141

28

6640223

NUT

29

6637338

O-RING

30

6637371

O-RING

31

6637411

O-RING

32

6640227

VALVE ASY suction

32

SLEEVE Was 700-20-61210

33

6642071

BALL

34

SPRING Was 700-20-61230

35

SCREW Was 700-20-61220

36

6637371

O-RING

37

6637411

O-RING

38

OVERLOAD RELIEF VALVE ASSY Komatsu 7238- Was 700-20-67001

39

6640258

POPPET Komatsu 7238-

40

SPRING Komatsu S/N 7238- Was 700-20-63121

41

SCREW Komatsu S/N 7239- Was 700-20-63141

42

WASHER Komatsu S/N 7239- Was 700-80-51240

43

6640223

NUT Komatsu 7238-

44

6637338

O-RING Komatsu 7238-

45

6637371

O-RING Komatsu 7238-

46

6637411

O-RING Komatsu 7238-

47

6640225

GROUP overload relief valve assembly

47

SLEEVE Was 700-20-68110

48

POPPET Was 700-20-62130

49

PISTON Was 700-20-68120

50

SPRING Was 700-20-66111

51

NUT Was 700-20-51130

52

6637333

O-RING

53

6637371

O-RING

54

O-RING Was 07000-02434
