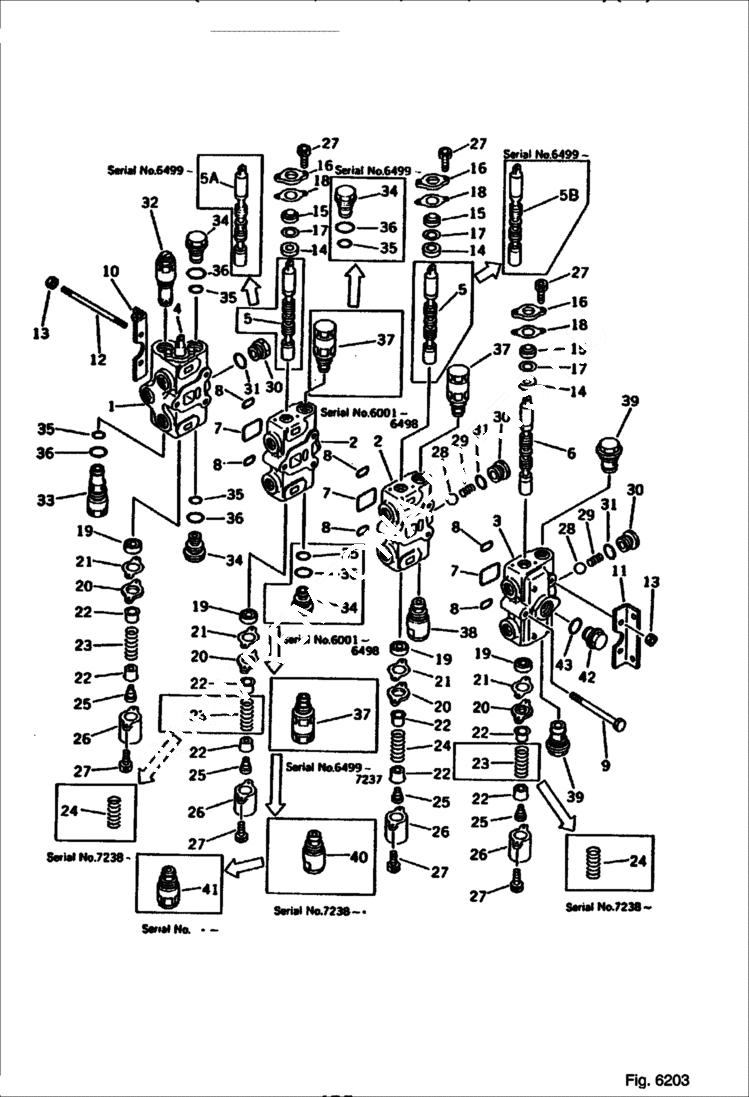

Запчасти Bobcat 100 4-SPOOL VALVE (1/2) (R.H. TRAVEL, BUCKET, BOOM, BOOM SWING) WORK EQUIPMENT CONTROL SYSTEM

1

6648821

VALVE ASY See Illustration 4-SPOOL VALVE (2/2)/ B26080

1

6640921

VALVE/ASY See Illustration 4-SPOOL VALVE (2/2)/ B26080 Komatsu S/N 7238-9060

1

VALVE ASSY See Illustration 4-SPOOL VALVE (2/2)/ B26080 Komatsu S/N 6499-7237 - Was 709-24-11602

1

6640532

VALVE ASSY See Illustration 4-SPOOL VALVE (2/2)/ B26080 Komatsu S/N 6001-6498

1

BODY Was 700-22-11110

2

BLOCK Was 700-22-11130

3

6646050

COVER

4

SPOOL, R.H. TRAVEL Was 700-23-13120

5

SPOOL, BUCKET AND BOOM Komatsu S/N 6001-6498 - Was 700-22-11710

5

SPOOL, BUCKET Komatsu S/N 6499- Was 700-22-11710

5

SPOOL, BOOM Komatsu S/N 64999- Was 700-22-11790

6

SPOOL, BOOM SWING Komatsu S/N 6001-9060 - Was 700-24-13130

6

SPOOL, BOOM SWING Komatsu S/N 9061- Was 700-24-13170

7

6637387

O-RING

8

6640246

O-RING

9

6640253

BOLT

10

6640255

ANGLE

11

6640229

ANGLE

12

6640252

STUD

13

NUT Was 01580-10806

14

6640230

U-PACKING

15

6640231

SEAL, DUS

16

6640232

SHIELD

17

6640245

COLLAR

18

6640244

GASKET

19

6640230

U-PACKING

20

6640233

SHIELD

21

6640244

GASKET

22

6640234

RETAINER

23

6640235

SPRING Komatsu S/N 6001-7237

23

6640235

SPRING Komatsu S/N 7238-

24

6640250

SPRING Komatsu S/N 6001-7237

24

SPRING Komatsu S/N 7238- Was 700-22-13130

25

6640236

PLUG

26

6640237

COVER

27

6637050

BOLT

28

6640247

BALL

29

6640248

SPRING

30

6640238

PLUG

31

6637418

O-RING

32

6640257

VALVE, RE main relief

33

6640241

PLUG

34

6640239

PLUG

35

6637371

O-RING

36

6637411

O-RING

37

6640224

VALVE ASY suction & safety - Komatsu S/N 6001-7237

37

6640224

VALVE ASY suction & safety - Komatsu S/N 7238-

38

6640222

VALVE ASY safety

39

6640227

VALVE ASY suction

40

OVERLOAD RELIEF VALVE ASSY Komatsu S/N 7238- Was 700-20-67001

41

6640225

GROUP overload relief valve assy

42

6640240

PLUG

43

6637411

O-RING
