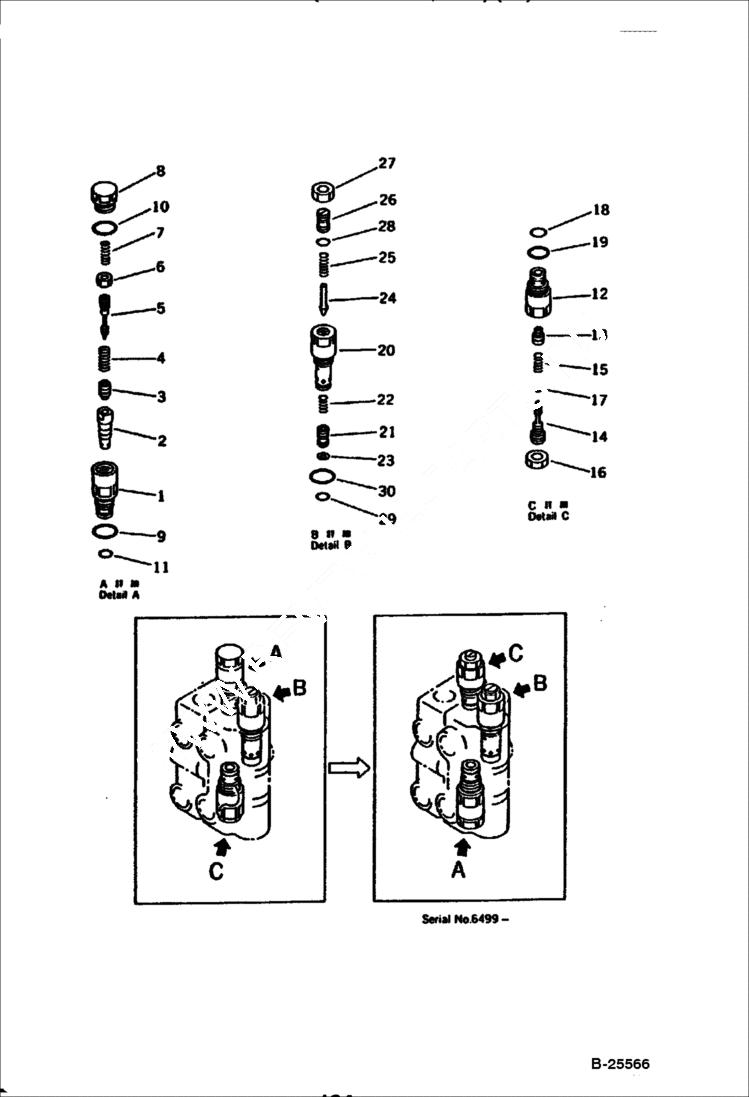

Запчасти Bobcat 100 2-SPOOL VALVE (L.H. TRAVEL, ARM)(2/2) WORK EQUIPMENT CONTROL SYSTEM

1

6646218

VALVE ASY See Illustration 2-SPOOL VALVE (L.H. TRAVEL, ARM)(1/2)/ B25565

1

6640531

VALVE ASY See Illustration 2-SPOOL VALVE (L.H. TRAVEL, ARM)(1/2)/ B25565 Komatsu S/N 6001-6498

1

6640224

VALVE ASY suction & safety

1

6648808

SLEEVE

2

VALVE Was 700-20-62120

3

POPPET Was 700-20-62130

4

SPRING Was 700-20-66111

5

PISTON Was 700-20-62150

6

NUT Was 700-20-62160

7

6640221

SPRING

8

6648809

PLUG

9

6637411

O-RING

10

6637418

O-RING

11

6637371

O-RING

12

6640225

GROUP safetly valve assy

12

SLEEVE Was 700-20-68110

13

POPPET Was 700-20-62130

14

PISTON Was 700-20-68120

15

SPRING Was 700-20-66111

16

NUT Was 700-20-51130

17

6637333

O-RING

18

6637371

O-RING

19

6637411

O-RING

20

6640257

VALVE, RE

20

6643192

SLEEVE See Illustration 4-SPOOL VALVE (2/2)/ B26080 main relief

21

6643193

VALVE

22

6640220

SPRING

23

6640217

RING

24

6640258

POPPET

25

6640219

SPRING

26

6640218

SCREW

27

6637115

NUT

28

6637335

O-RING

29

6640243

O-RING

30

6637411

O-RING
