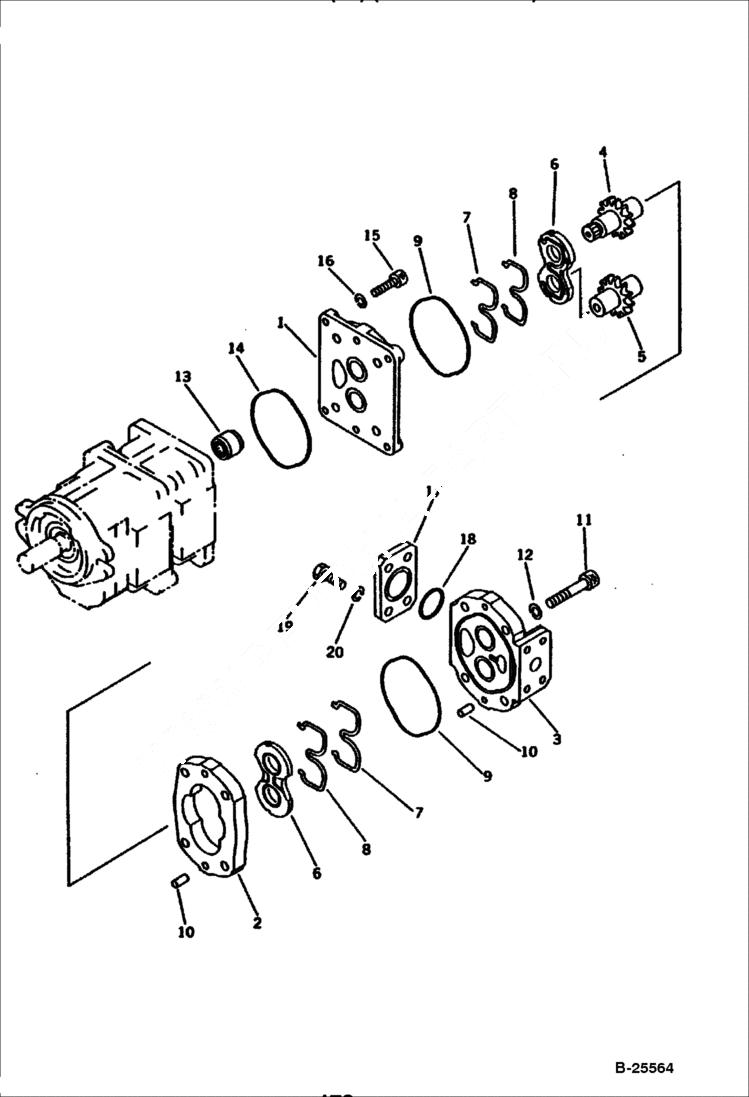

Запчасти Bobcat 100 HYDRAULIC PUMP (3/3) Komatsu S/N 8432- WORK EQUIPMENT CONTROL SYSTEM

1

PUMP ASSY See Illustration HYDRAULIC PUMP (2/3)/ B25562 See Illustration HYDRAULIC PUMP (1/3)/ B26079 Was 705-86-14060

1

PUMP ASSY (LBR 10) - Was 705-72-21530

1

6640318

BRACKET A

2

CASE, GEAR Was 705-67-21110

3

COVER Was 705-67-01110

4

6640324

GEAR drive

5

6640325

GEAR driven

6

6640319

SHIELD

7

6640317

RING

8

6640301

SEAL ring

9

6640300

O-RING

10

6637175

PIN, DOWEL

11

6637057

BOLT

12

6637135

WASHER

13

6640316

COUPLING

14

6640300

O-RING

15

6637053

BOLT

16

6637134

WASHER

17

6640304

SHIELD

18

6637356

O-RING

19

6636967

BOLT

20

6637135

WASHER
