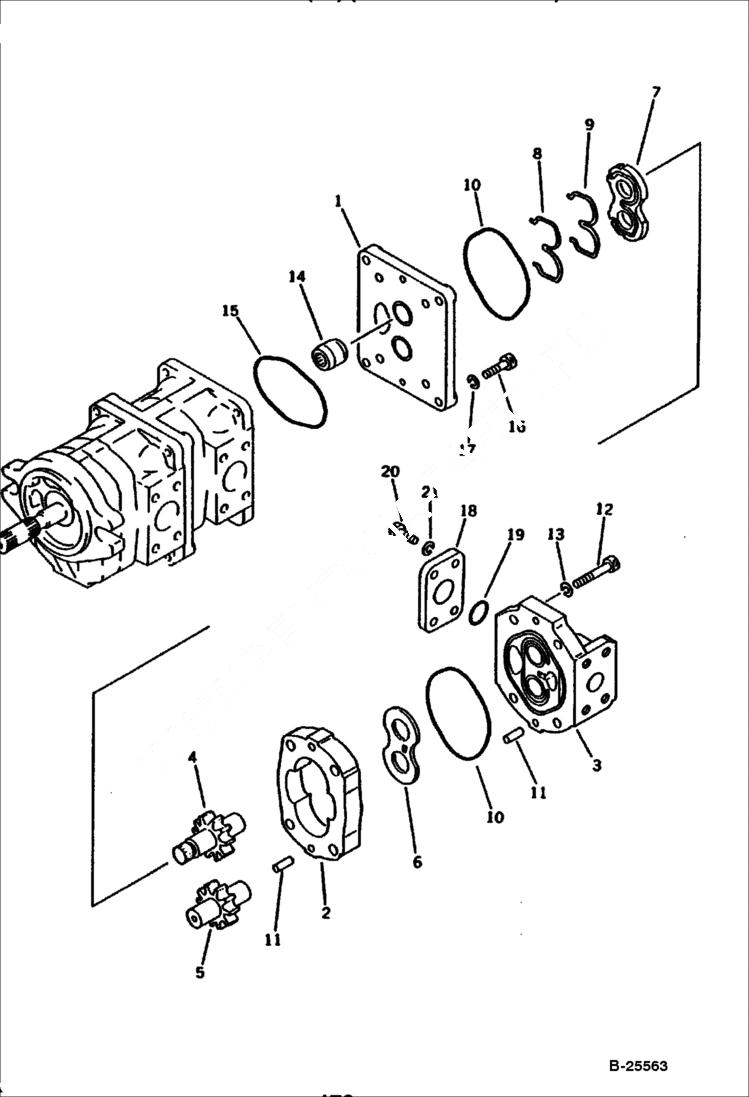

Запчасти Bobcat 100 HYDRAULIC PUMP (3/3) Komatsu S/N 6001-8431 WORK EQUIPMENT CONTROL SYSTEM

1

6640331

PUMP ASY See Illustration HYDRAULIC PUMP (1/3)/ B25561 See Illustration HYDRAULIC PUMP (1/3)/ B26079 See Illustration HYDRAULIC PIPING (TANK TO PUMP)/ B25572 See Illustration HYDRAULIC PUMP (3/3)/ B25

1

6640307

PUMP ASSY (RAL 10)

1

6640318

BRACKET A

2

6640323

HOUSING gear case

3

6640313

COVER

4

6640324

GEAR drive

5

6640325

GEAR driven

6

6640320

SHIELD side

7

6640319

SHIELD side

8

6640317

RING

9

6640301

SEAL ring

10

6640300

O-RING

11

6637175

PIN, DOWEL

12

6637056

BOLT

13

6637135

WASHER

14

6640316

COUPLING

15

6640300

O-RING

16

6637053

BOLT

17

6637134

WASHER

18

6640304

SHIELD

19

6637356

O-RING

20

6636967

BOLT

21

6637135

WASHER
