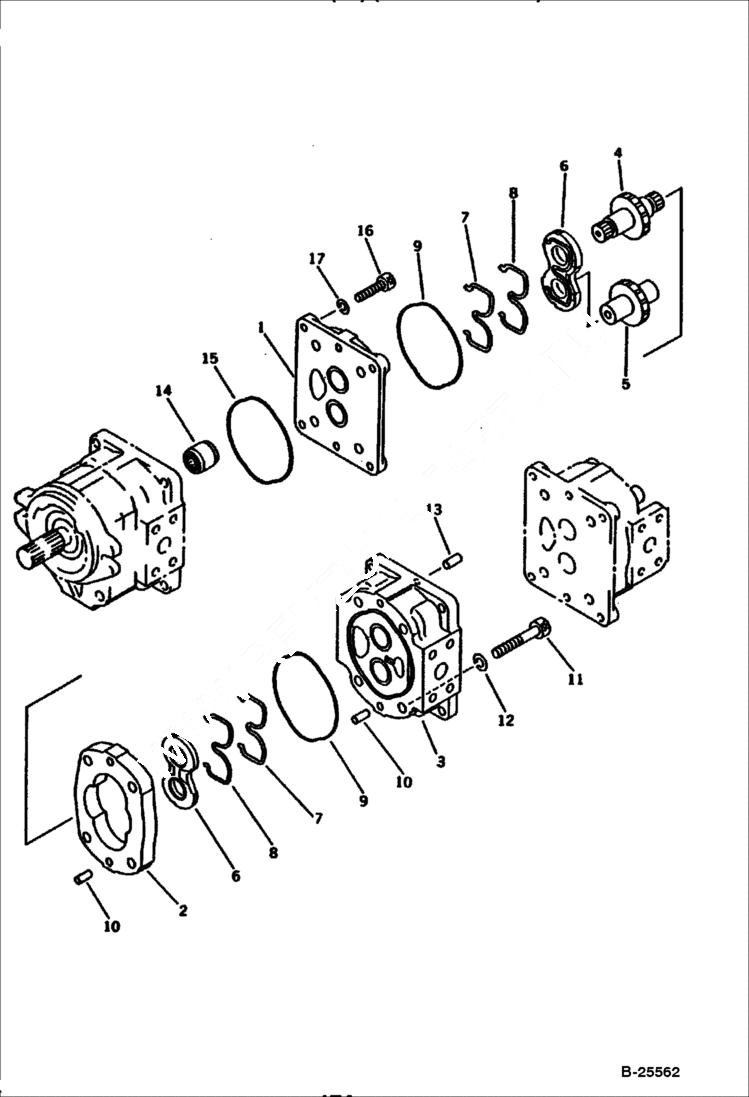

Запчасти Bobcat 100 HYDRAULIC PUMP (2/3) Komatsu S/N 8432- WORK EQUIPMENT CONTROL SYSTEM

1

PUMP ASSY See Illustration HYDRAULIC PUMP (1/3)/ B26079 See Illustration HYDRAULIC PUMP (3/3)/ B25564 See Illustration HYDRAULIC PUMP (2/3)/ B25562 Was 705-86-14060

1

PUMP ASSY LBR 12 - Was 705-72-22330

1

6640318

BRACKET A

2

CASE, GEAR Was 705-67-22110

3

6640314

CARRIER A

4

GEAR, DRIVE Was 705-67-22760

5

6640329

GEAR driven

6

6640319

SHIELD side

7

6640317

RING

8

RING, SEAL Was 705-17-01470

9

6640300

O-RING

10

6637175

PIN, DOWEL

11

BOLT Was 01252-31065

12

6637135

WASHER

13

6640315

PIN

14

6640316

COUPLING

15

6640300

O-RING

16

6637053

BOLT

17

6637134

WASHER
