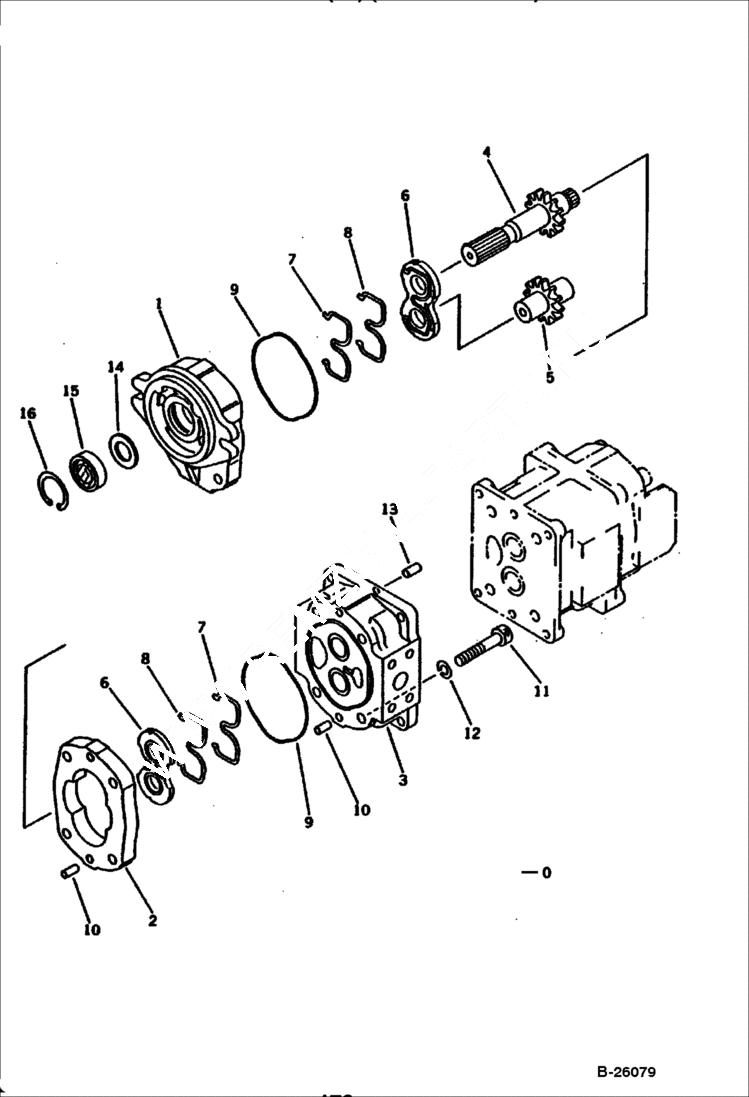

Запчасти Bobcat 100 HYDRAULIC PUMP (1/3) Komatsu S/N 8432- WORK EQUIPMENT CONTROL SYSTEM

1

PUMP ASSY See Illustration HYDRAULIC PUMP (2/3)/ B25562 See Illustration HYDRAULIC PUMP (3/3)/ B25564 Was 705-86-14060

1

PUMP ASSY (LBR 12) - Was 705-72-22210

1

6640312

BRACKET A

2

GEAR CASE Was 705-67-22110

3

CARRIER Was 705-67-01210

4

GEAR, DRIVE Was 705-67-22740

5

6640329

GEAR driven

6

6640319

SHIELD side

7

6640317

RING

8

RING, SEAL Was 705-17-01470

9

O-RING Was 705-17-01381

10

6637175

PIN, DOWEL

11

BOLT Was 01252-31065

12

6637135

WASHER

13

6640315

PIN

14

6640303

SHIELD

15

6640293

SEAL, OIL

16

6637231

RING, SNAP
