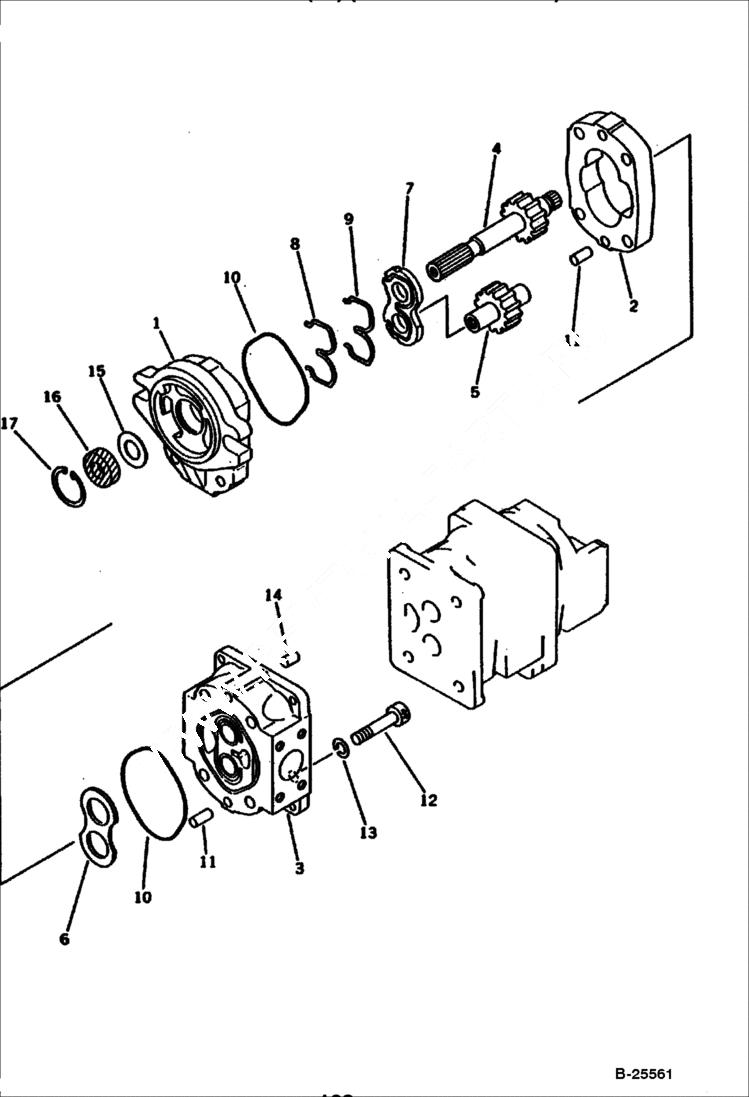

Запчасти Bobcat 100 HYDRAULIC PUMP (1/3) Komatsu S/N 6001-8431 WORK EQUIPMENT CONTROL SYSTEM

1

6640331

PUMP ASY See Illustration HYDRAULIC PUMP (1/3)/ B26079 See Illustration HYDRAULIC PIPING (TANK TO PUMP)/ B25572 See Illustration HYDRAULIC PUMP (3/3)/ B25563 See Illustration HYDRAULIC PUMP (2/3)/ B25

1

6640308

PUMP ASSY (RAL 12)

1

6640312

BRACKET A

2

6640326

CASE gear

3

6640314

CARRIER A

4

6640329

GEAR drive

4

6640327

GEAR driven

6

6640320

SHIELD side

7

6640319

SHIELD side

8

6640317

RING

9

6640301

SEAL

10

6640300

O-RING

11

6637175

PIN, DOWEL

12

6637057

BOLT

13

6637135

WASHER

14

6640315

PIN

15

6640303

SHIELD

16

6640293

SEAL, OIL

17

6637231

RING, SNAP
