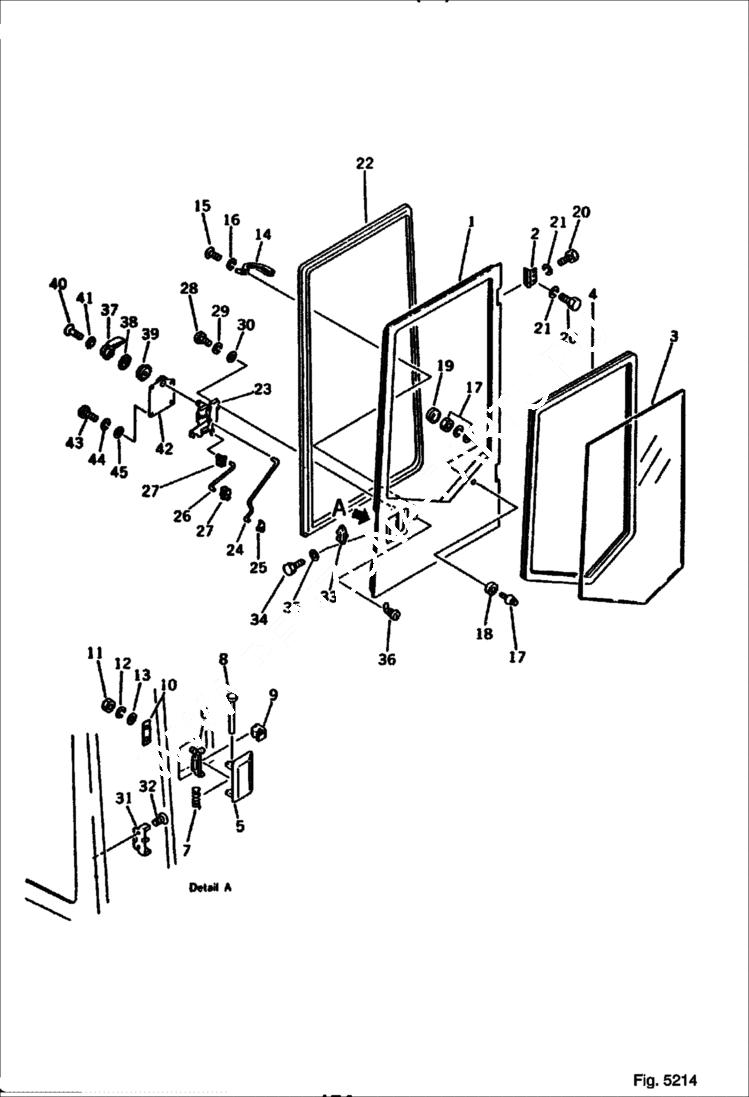

Запчасти Bobcat 100 OPERATORS CAB (4/4) REVOLVING FRAME AND CAB

1

6642921

CAB ASS'Y See Illustration OPERATOR'S CAB (1/4)/ 5211 See Illustration OPERATOR'S CAB (2/4)/ 5212 See Illustration OPERATOR'S CAB (3/4)/ 5213

1

6645780

CAB ASSY 2 hinge

1

6639457

DOOR ASMY 3 hinge

1

6639481

DOOR

2

6639482

HINGE

3

6639491

GLASS

4

6639496

STRIP, WEATHER

5

6639484

HANDLE

6

6639507

BRACKET

7

6639333

SPRING

8

6639334

PIN

9

6639335

CUSHION

10

6639336

PACKING

11

6637106

NUT

12

6637133

WASHER

13

6637145

WASHER

14

6638299

GRIP

15

6637032

SCREW

16

6637126

WASHER

17

6639460

CATCHER

18

6639462

SHIM

19

6637758

CAP

20

6636946

BOLT

21

6637129

WASHER

22

6639499

SEAL

23

6639324

CONTROL ASSY remote

23

6639326

CONTROL

24

6639485

ROD

25

6639328

RING, SNAP

26

6639486

ROD

27

6639327

RING, SNAP

28

6637038

SCREW

29

6637133

WASHER

30

6637145

WASHER

31

6639320

STRIKER

32

6639206

SCREW

33

6639319

LOCK ASY

34

6636953

BOLT

35

6637155

WASHER

36

6639315

LOCK ASSY

37

6639204

HANDLE

38

6639205

SHIELD

39

6639909

MOUNT

40

6637046

SCREW

41

6639329

WASHER

42

6639483

SHIELD

43

6637027

SCREW

44

6637125

WASHER

45

6637143

WASHER
