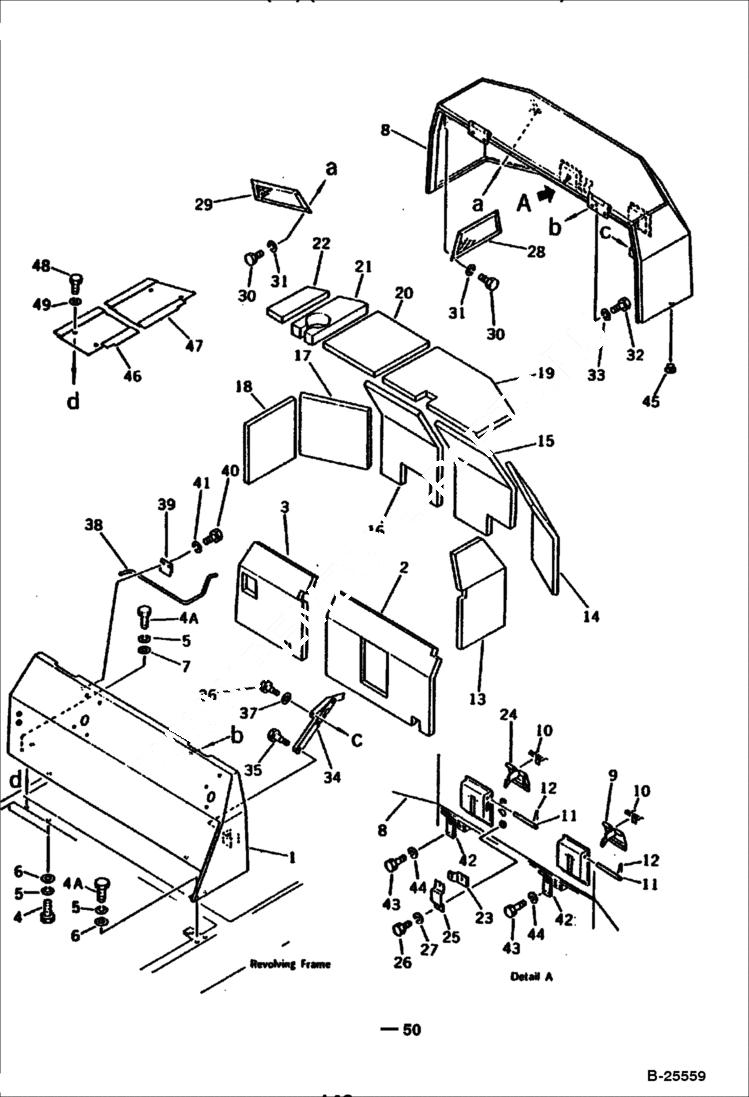

Запчасти Bobcat 100 MACHINE CAB (2/2)(W/ATTACHMENT PIPING) REVOLVING FRAME AND CAB

1

6638768

COVER ASSY

1

6638769

COVER

2

6638770

SHEET

3

6638771

SHEET

4

6636967

BOLT

4

6636968

BOLT

5

6637135

WASHER

6

6637157

WASHER

7

6637158

WASHER

8

HOOD ASSY Was 20S-54-25100

8

HOOD Was 20S-54-25110

9

6638779

LEVER

10

6639464

SPRING

11

6638780

PIN

12

6637198

PIN, COTTER

13

6638759

SHEET

14

6638760

SHEET

15

6638778

SHEET

16

6642838

SHEET

17

6638763

SHEET

18

6638764

SHEET

19

6638765

SHEET

20

6638766

SHEET

21

6638767

SHEET

22

6638772

SHEET

23

6642783

PLATE

24

6642839

LEVER

25

6642926

COVER

26

6636956

BOLT

27

6637156

WASHER

27

6639292

LOCK ASSY

28

6638754

COVER

29

6638755

COVER

30

6636957

BOLT

31

6637134

WASHER

32

6636966

BOLT

33

6637135

WASHER

34

6638571

STAY

35

6638572

BOLT

36

6638573

BOLT

37

6637423

SEAL

38

6638756

BAR, TORSION

39

6638758

BRACKET

40

6636966

BOLT

41

6637135

WASHER

42

6638570

LOCK

43

6636967

BOLT

44

6637135

WASHER

45

6639202

STOPPER

46

6638773

COVER

47

6638774

COVER

48

6636966

BOLT

49

6637135

WASHER

50

6642828

CLIP Not shown
