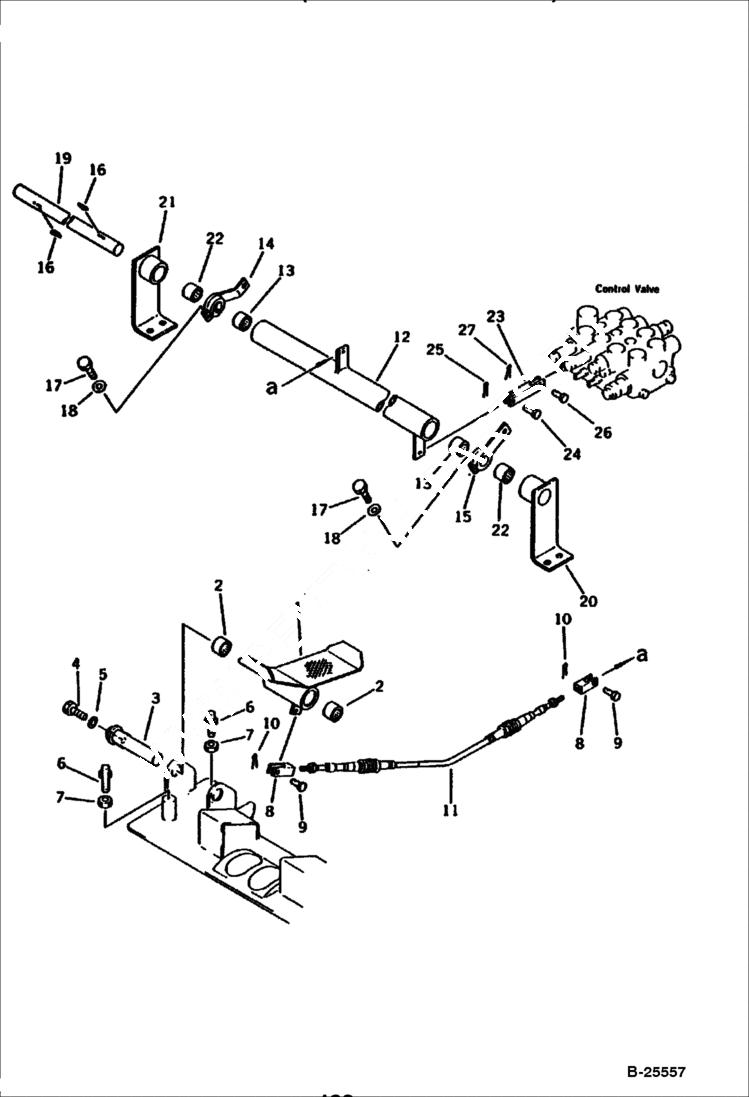

Запчасти Bobcat 100 CONTROL PEDAL (W/ATTACHMENT PIPING) SWING AND CONTROL SYSTEM

1

6641028

PEDAL

2

6637894

BEARING

3

6641029

SHAFT

4

6636959

BOLT

5

6637134

WASHER

6

6637743

BUMPER

7

6637109

NUT

8

6637266

YOKE

9

6637251

PIN

10

6637195

PIN, COTT

11

6646710

CABLE

12

6646711

LEVER

13

6637894

BEARING

14

6646712

LEVER

15

6638702

LEVER

16

6637173

KEY

17

6636960

BOLT

18

6637134

WASHER

19

6646713

SHAFT

20

6646714

BRACKET

21

6646715

BRACKET

22

6637894

BEARING

23

YOKE Was 20S-973-2170

24

6637255

PIN

25

6637196

PIN, COTT

26

6637248

PIN

27

6646717

COTER PIN
