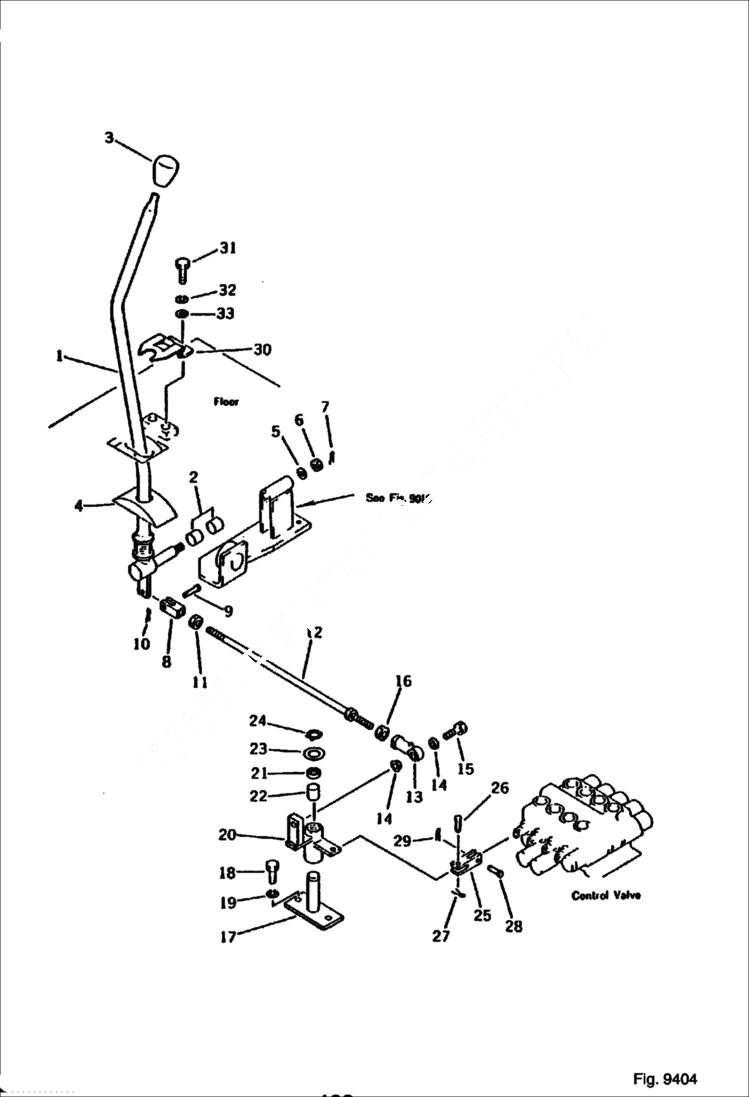

Запчасти Bobcat 100 BOOM SWING CONTROL LEVER SWING AND CONTROL SYSTEM

1

6638711

LEVER

2

6637746

BUSHING

3

6637900

KNOB

4

6638686

COVER

5

6637159

WASHER

6

6637120

NUT

7

6637200

PIN, COTT

8

6638691

YOKE

9

6637255

PIN

10

6637196

PIN, COTT

11

6637100

NUT

12

6637301

ROD

13

6637307

END

14

6637157

WASHER

14

6637316

SHIM Komatsu S/N 6001-8512

15

6636969

BOLT

16

6642029

NUT

17

6638712

SHAFT

18

6636967

BOLT

19

6637135

WASHER

20

6638713

LEVER

21

6637332

SEAL, BEARING

22

6637746

BUSHING

23

6637890

WASHER

24

6637220

RING, SNAP

25

6638714

YOKE

26

6637255

PIN

27

6637196

PIN, COTT

28

6637253

PIN

29

6637194

PIN, COTTER

30

6638692

HINGE

31

BOLT Was 01010-59820

32

6637135

WASHER

33

WASHER Was 01643-30825
