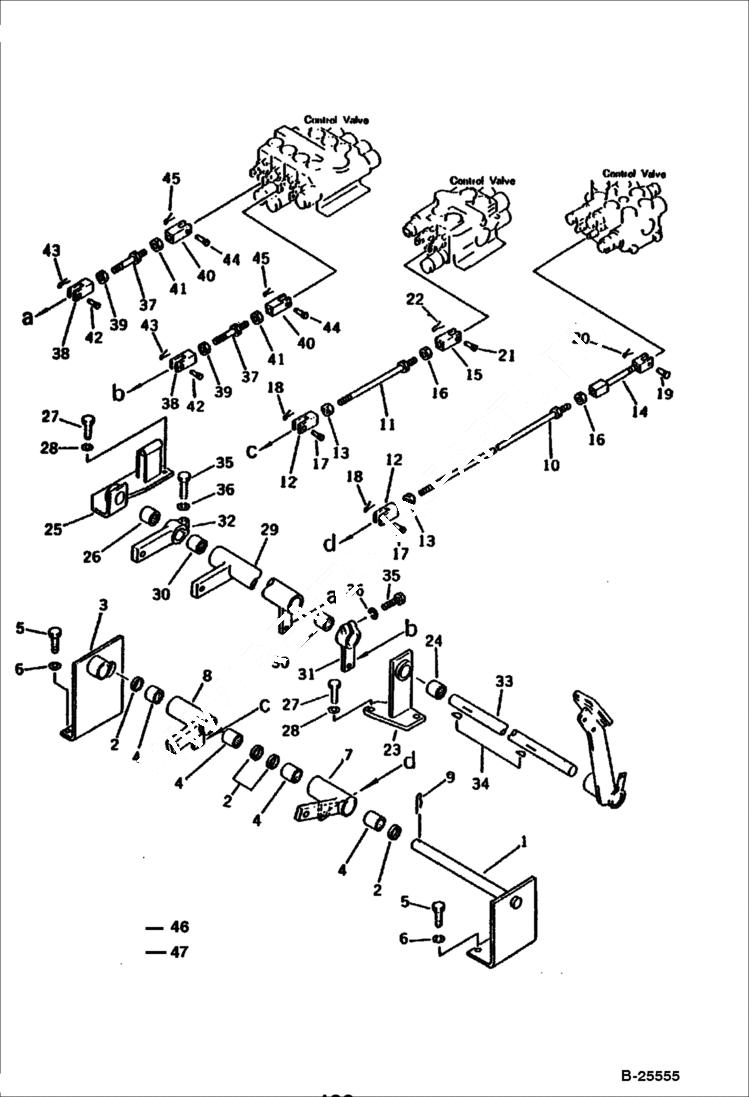

Запчасти Bobcat 100 WORK EQUIPMENT CONTROL LINKAGE SWING AND CONTROL SYSTEM

1

6638743

SHAFT

2

6637332

SEAL, BEARING

3

6638742

BRACKET

4

6637746

BUSHING

5

6636966

BOLT

6

6637135

WASHER

7

6638744

LEVER

8

6638745

LEVER

9

6637206

PIN, COTT

10

6637306

ROD

11

6637295

ROD

12

6638691

YOKE LH thread

13

6637100

NUT LH thread

14

6638710

ROD yoke

15

6639069

YOKE

16

6637113

NUT

17

6637255

PIN

18

6637196

PIN, COTT

19

6637248

PIN

20

6637193

PIN

21

6637253

PIN

22

6637194

PIN, COTTER

23

6638703

BRACKET

24

6637894

BEARING

25

6638715

BRACKET

26

6637894

BEARING

27

6636967

BOLT

28

6637135

WASHER

29

6638701

LEVER

30

6637894

BEARING

31

6638702

LEVER

32

6638708

LEVER

33

6638704

SHAFT

34

6637173

KEY

35

6636960

BOLT

36

6637134

WASHER

37

6637294

ROD

38

6638691

YOKE LH thread

39

6637100

NUT LH thread

40

6639069

YOKE

41

6637113

NUT

42

6637255

PIN

43

6637196

PIN, COTT

44

6637253

PIN

45

6637194

PIN, COTTER

46

6642815

SHIM

47

6642816

SHIM
